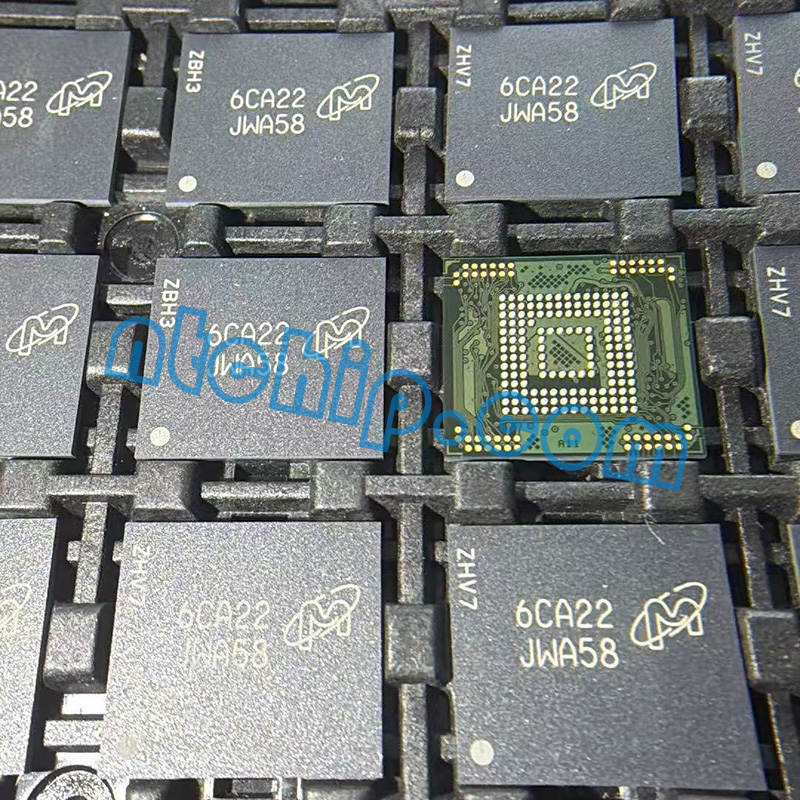

Q: What are the main features of the Micron Technology MTFC4GACAAAM-4M IT?
A: The MTFC4GACAAAM-4M IT is a 4 GB embedded MultiMediaCard flash memory device that integrates NAND flash storage with a memory controller. It supports the MMC 4.51 standard, a 200 MHz interface clock, and data transfer rates of up to 400 MT/s. The device uses a 153-ball VFBGA package measuring 11.5 mm by 13 mm by 1 mm and supports an industrial operating temperature range of -40°C to +85°C. It is designed to provide nonvolatile storage for embedded electronic systems. This part is listed as obsolete, so availability should be confirmed before ordering.
Q: What is the MTFC4GACAAAM-4M IT used for?
A: This eMMC device is used to store operating systems, firmware, application data, configuration settings, and other files in embedded products. Typical applications include industrial controllers, networking equipment, embedded computing platforms, and electronic devices requiring integrated flash storage. Its built-in controller manages memory operations, helping simplify system design and reduce the processing burden on the host.
Q: Are there alternative manufacturers and part numbers for the MTFC4GACAAAM-4M IT?
A: Potential alternatives include the Micron MTFC4GACAAAM-1M WT and MTFC4GACAANA-4M IT. These devices offer similar 4 GB eMMC storage, but package configurations or operating temperature specifications may differ. Other manufacturers also offer eMMC devices with comparable capacities, but they should not be considered direct replacements without verification. Before selecting an alternative, check the package and ball layout, MMC interface version, voltage requirements, data transfer rate, temperature range, and compatibility with the existing host system.
Q: Is technical support available for the MTFC4GACAAAM-4M IT?
A: Yes. Nantian Electronics provides product information and technical assistance for the MTFC4GACAAAM-4M IT, including specification clarification, datasheet information, package and pin configuration guidance, and replacement selection support. Customers can contact Nantian Electronics for quotations, availability checks, and assistance identifying suitable alternatives for legacy designs.
