Q1: What are the main features of the CY15B004Q-SXE?

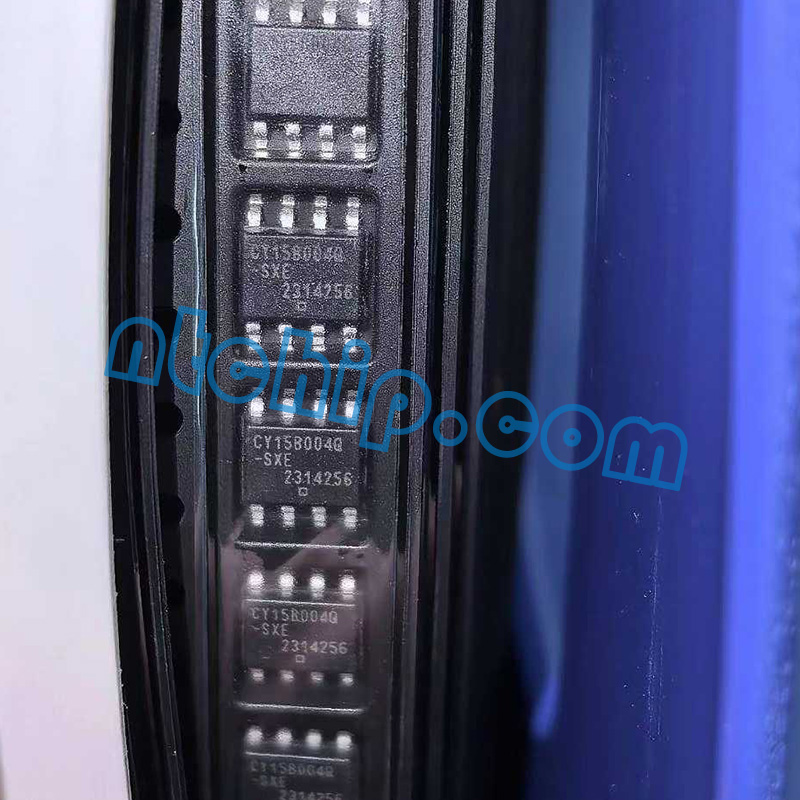

The CY15B004Q-SXE is a 4-Kbit nonvolatile Ferroelectric RAM (F-RAM) memory device organized as 512 × 8 bits. It features a high-speed SPI interface operating up to 20 MHz, NoDelay™ write technology for instant data storage, and an extremely high endurance rating of up to 100 trillion (10¹?) read/write cycles. The device also offers up to 151 years of data retention, low power consumption, hardware and software write protection, and operation over a 2.7 V to 3.6 V supply range. Its compact 8-pin SOIC package and RoHS-compliant design make it suitable for a wide range of embedded applications.
Q2: What is the CY15B004Q-SXE used for?
This F-RAM device is commonly used in data logging systems, industrial automation equipment, smart meters, automotive electronics, communication devices, medical instruments, and embedded controllers. It is especially useful in applications that require frequent data updates, fast nonvolatile storage, and high reliability, where traditional EEPROM or flash memory may experience endurance or write-speed limitations.
Q3: Does the CY15B004Q-SXE have alternative manufacturers and part numbers?
Yes. Similar nonvolatile memory devices are available from manufacturers such as Fujitsu, Infineon Technologies, Microchip Technology, Renesas Electronics, and Texas Instruments. Comparable part numbers depend on the required memory density, interface type, operating voltage, endurance rating, package style, and data retention requirements, so the best substitute should be selected according to the specific application requirements.
Q4: Is technical support available for this part?
Yes. Technical support is available through Infineon Technologies (which acquired Cypress Semiconductor) and authorized distributors. Support resources typically include datasheets, application notes, design recommendations, and reliability documentation. Distributors such as Nantian Electronics can also assist with product selection, inventory availability, datasheet access, and technical inquiries.
