1. What are the main features of the ADP-2-1+?

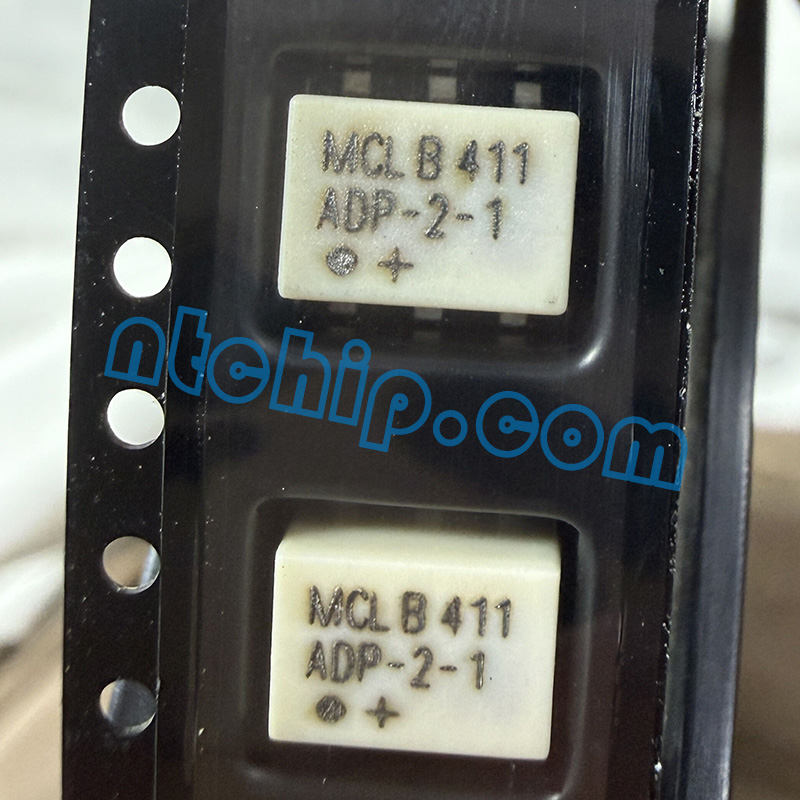

The ADP-2-1+ is a 2-way, 0° 50Ω RF power splitter/combiner designed for signals from 0.5MHz to 400MHz. It provides low insertion loss, excellent amplitude balance, and good phase balance between its output ports. The device supports up to 0.5W power input when used as a splitter and operates over a −40°C to +85°C temperature range. Its compact plastic package and aqueous-washable construction make it suitable for space-constrained RF circuit designs and standard PCB assembly processes.
2. What is the ADP-2-1+ used for?
The ADP-2-1+ can divide one RF signal into two output signals with controlled amplitude and phase characteristics, or combine two RF signals into one output. It is suitable for RF signal distribution, instrumentation, communication equipment, VHF/UHF circuits, laboratory test systems, and other 50Ω applications operating within its specified frequency range.
3. Does the ADP-2-1+ have any alternative manufacturers and part numbers, such as?
3. Does the ADP-2-1+ have any alternative manufacturers and part numbers, such as?
There is no guaranteed drop-in replacement from another manufacturer because frequency range, impedance, package dimensions, power handling, insertion loss, and balance characteristics must all be considered. Possible alternatives within the Mini-Circuits product family include the ADP-2-1W+ and SCP-2-1+. However, these devices have different frequency ranges and/or package configurations, so they should not be considered direct replacements without checking the circuit requirements and PCB layout.
4. Is technical support available for the ADP-2-1+?
Yes. Technical information is available for the ADP-2-1+, including product specifications, datasheet information, S-parameters, PCB layout guidance, and application documentation. These resources can help engineers evaluate insertion loss, amplitude and phase balance, impedance matching, and overall RF performance. Nantian Electronics can also provide ADP-2-1+ product information, datasheet and pin-diagram resources, quotation assistance, and general component support.
