Q1: What are the main features of the CD74HC4067M96?

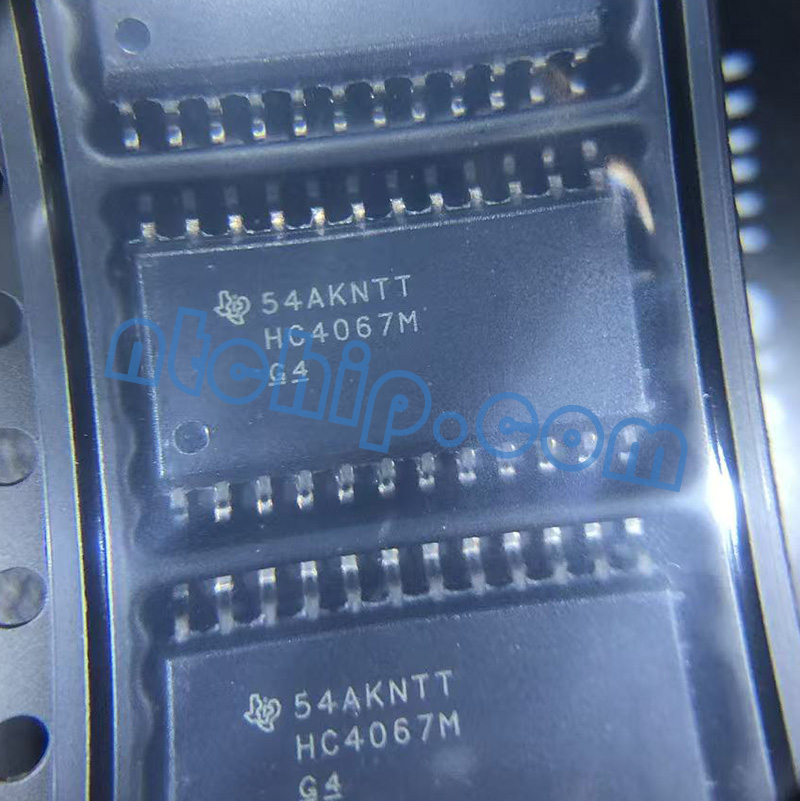

The CD74HC4067M96 is a 16-channel analog multiplexer/demultiplexer built with high-speed CMOS technology. It features a wide analog input voltage range, low ON resistance, fast switching speeds, and break-before-make switching to prevent channel overlap during transitions. The device operates from 2 V to 6 V, offers high noise immunity, low power consumption, balanced propagation delays, and supports operation across an extended temperature range of -55°C to +125°C.
Q2: What is it commonly used for?
This device is commonly used for signal routing and channel selection in data acquisition systems, sensor interfaces, industrial control equipment, communication systems, test and measurement instruments, and microcontroller-based designs. Its 16:1 switching capability allows multiple analog or digital signals to be connected through a single interface, reducing component count and simplifying circuit design.
Q3: Does the CD74HC4067M96 have alternative manufacturers and part numbers?
Yes. Similar 16-channel analog multiplexer/demultiplexer devices are available from manufacturers such as Analog Devices, onsemi, Nexperia, Renesas Electronics, and STMicroelectronics. Comparable part numbers depend on the required operating voltage, ON resistance, switching speed, package type, and signal characteristics, so the best substitute should be selected according to the specific
Q4: Is technical support available for this part?
Yes. Texas Instruments provides comprehensive technical support for the CD74HC4067M96, including datasheets, application notes, reference designs, and development resources. In addition, distributors such as Nantian Electronics can assist with product selection, technical documentation, inventory availability, and design-related inquiries to support development and procurement needs.
