Q: What are the main features of the SD36-01FTG?

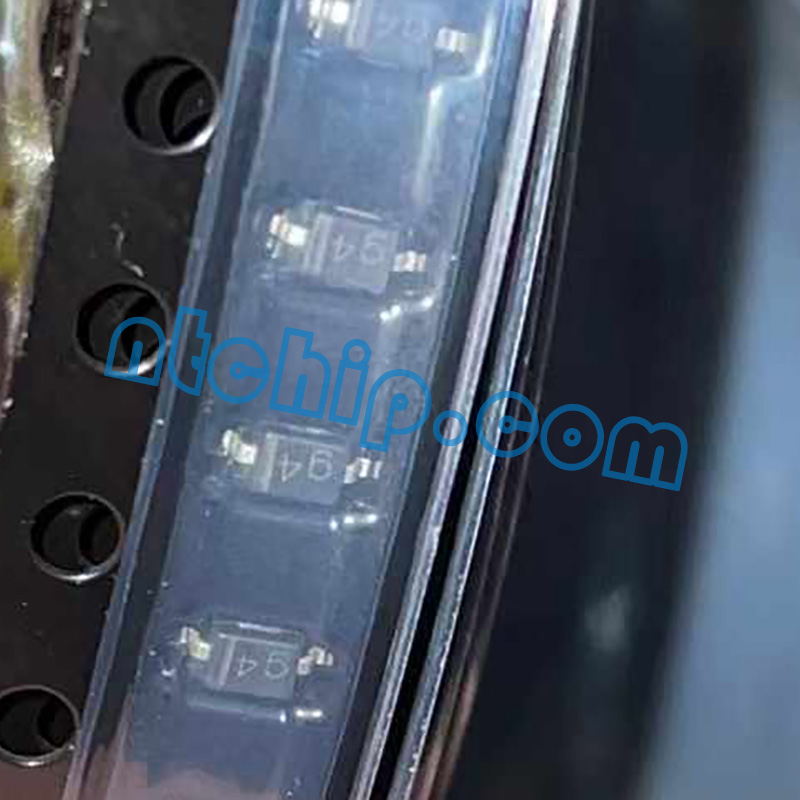

A: The SD36-01FTG is a unidirectional TVS diode designed to protect sensitive electronic circuits from transient voltage events. It features a 62 V clamping voltage, a peak pulse current rating of 5 A (8/20 μs), low clamping voltage, and low leakage current for reliable circuit protection. The device provides ESD protection up to ±30 kV contact and ±30 kV air discharge according to IEC 61000-4-2, supports EFT protection up to 40 A (5/50 ns), and offers surge protection against lightning transients. It is housed in a compact SOD-323 package compatible with 0805 footprints and is AEC-Q101 qualified, RoHS compliant, and lead-free.
Q: What is the SD36-01FTG used for?
A: The SD36-01FTG is used to protect communication ports, industrial control systems, automotive electronics, consumer devices, data interfaces, and other sensitive circuits from electrostatic discharge, electrical fast transients, and surge events. Its compact package and fast response make it well suited for high-density PCB designs where reliable transient voltage protection is required without occupying significant board space.
Q: Dose it has any Alternative manufacturer and part number?
A: Yes. Similar TVS diode solutions are available from other manufacturers, such as onsemi ESD9B5.0ST5G, Nexperia PESD36VS1UL, STMicroelectronics ESDA36SC5, Vishay VESD36A1A-HD1, and Bourns CDSOD323-T36LC. Although these devices provide comparable transient voltage protection, designers should always compare the working voltage, clamping voltage, peak pulse current, package type, and electrical characteristics to ensure compatibility with the target application.
Q: Is technical support available for this part?
A: Yes. Professional distributors can provide technical support for the SD36-01FTG, including datasheets, pin diagrams, electrical specifications, application guidance, replacement recommendations, and inventory availability. Nantian Electronics also offers quotation services, sourcing assistance, and responsive customer support to help customers select and procure the right components for both prototype development and mass production.
