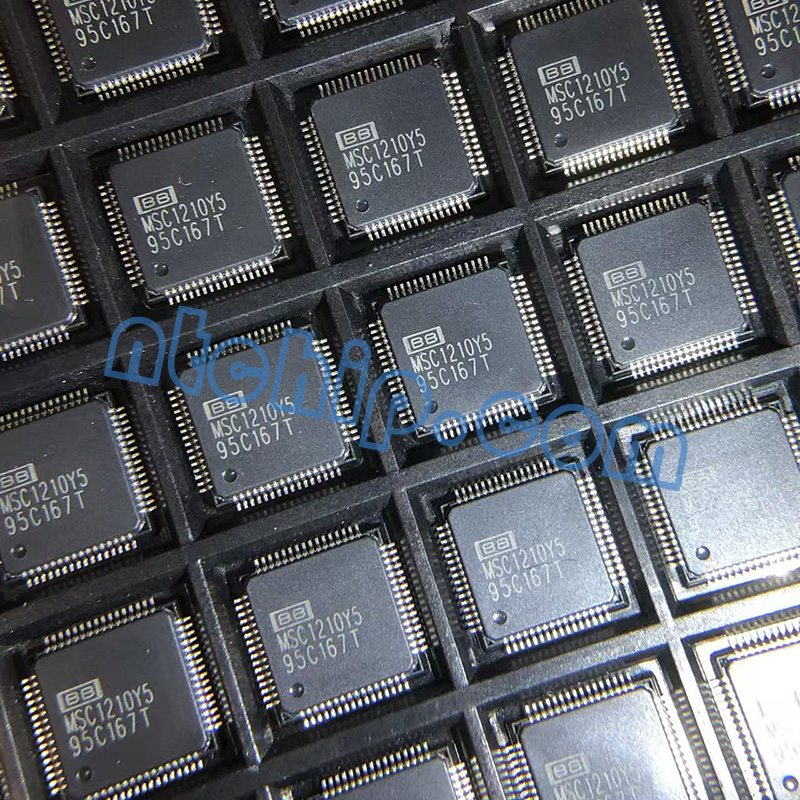

Q1: What are the main features of the Texas Instruments MSC1210Y5PAGR?
A: The MSC1210Y5PAGR is a high-precision mixed-signal microcontroller that integrates a 24-bit analog-to-digital converter (ADC), DAC functionality, and MCU capabilities into a single device. It delivers 24-bit resolution with no missing codes and achieves 22-bit effective resolution at 10Hz. Key features include a low-noise 75nV ADC, a programmable gain amplifier (PGA) with gain settings from 1 to 128, a precision on-chip voltage reference, support for up to eight differential or single-ended input channels, on-chip offset and gain calibration, low temperature drift, an integrated temperature sensor, burnout sensor detection, selectable buffered inputs, and single-cycle conversion for high-accuracy data acquisition.
Q2: What is the MSC1210Y5PAGR used for?
A: The MSC1210Y5PAGR is designed for precision measurement and control applications where high-resolution analog signal acquisition is required. Typical applications include industrial process control, digital weighing scales, pressure and temperature measurement systems, laboratory and analytical instruments, medical monitoring equipment, sensor interface modules, test and measurement equipment, data acquisition systems, and other embedded systems that require accurate analog-to-digital conversion with integrated processing capability.
Q3: Does the MSC1210Y5PAGR have an alternative manufacturer and part number?
A: Direct drop-in replacements are limited because the MSC1210Y5PAGR uniquely combines a high-resolution 24-bit ADC, integrated microcontroller, programmable gain amplifier, and precision analog features in one device. However, comparable mixed-signal data acquisition solutions are available from manufacturers such as Analog Devices, Microchip Technology, Renesas Electronics, and STMicroelectronics. Representative alternative part numbers include ADuC845, ADuC847, MCP3553, R7F0C, and STM32L4 series devices paired with external high-resolution ADCs. Designers should compare resolution, processing capability, interface options, package type, and application requirements before selecting an alternative.
Q4: Is technical support available for the MSC1210Y5PAGR?
A: Yes. As a professional Texas Instruments supplier and distributor, Nantian Electronics provides technical support for the MSC1210Y5PAGR, including datasheets, product specifications, pin diagram references, inventory inquiries, alternative part recommendations, and application guidance. Customers can contact our sales and technical support team for competitive quotations, product selection assistance, and complete ordering support.
