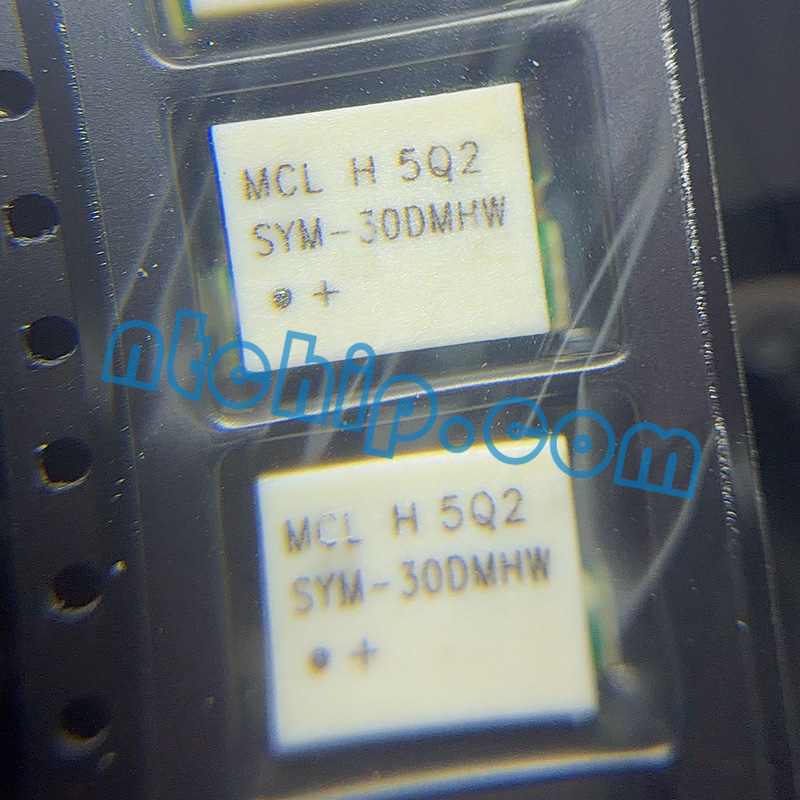

Q1: What are the main features of the Mini-Circuits SYM-30DMHW+?
A: The SYM-30DMHW+ is a wideband triple-balanced RF mixer designed for high-performance frequency conversion applications. It operates over a broad frequency range of 5 MHz to 3 GHz and supports communication standards such as CDMA, GSM, DCS, and PCN. The device provides excellent LO-to-RF isolation of typically 36 dB and LO-to-IF isolation of typically 42 dB, helping reduce signal leakage and improve overall system performance. Its triple-balanced architecture also offers good linearity, low spurious responses, and stable operation across a wide frequency range.
Q2: What is the SYM-30DMHW+ used for?
A: The SYM-30DMHW+ is commonly used in wireless communication systems, RF transceivers, frequency converters, signal analyzers, spectrum analyzers, test and measurement equipment, military and aerospace electronics, radar systems, and broadband communication infrastructure. It is designed to perform reliable up-conversion and down-conversion of RF signals while maintaining excellent signal integrity.
Q3: Does the SYM-30DMHW+ have alternative manufacturers or part numbers?
A: Yes. Similar RF mixer devices are available from manufacturers such as Analog Devices, Qorvo, MACOM, Marki Microwave, and NXP Semiconductors. Alternative products should be selected according to operating frequency range, conversion loss, isolation, linearity, LO drive level, package type, and overall system requirements. Comparable devices may include the Analog Devices HMC series, Qorvo TQM series, MACOM mixer family, and Marki Microwave broadband mixers, depending on the specific application.
Q4: Is technical support available for the SYM-30DMHW+?
A: Yes. Mini-Circuits provides comprehensive technical resources, including datasheets, application notes, performance data, S-parameter files, and engineering documentation to assist customers with product selection and RF circuit design. In addition, Nantian Electronics can provide datasheet downloads, technical specifications, pin diagram information, inventory availability, and procurement support to help customers evaluate, integrate, and source the SYM-30DMHW+ efficiently.
