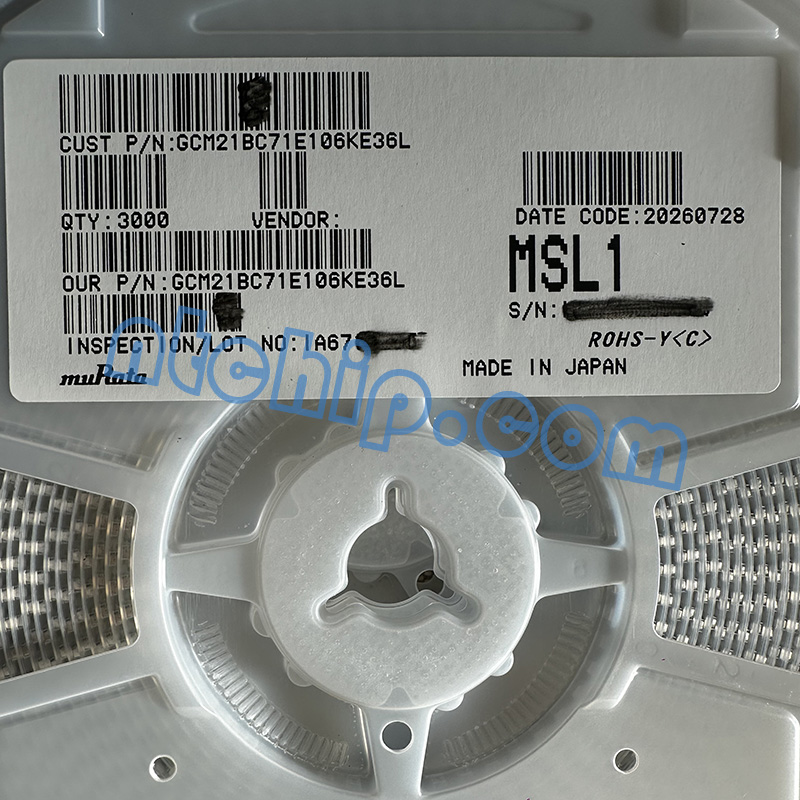

Q: What are the key features of the GCM21BC71E106KE36L?
A: The GCM21BC71E106KE36L is a multilayer ceramic capacitor (MLCC) designed for automotive and other demanding electronic applications. It provides a capacitance of 10 µF with a tolerance of ±10% and a rated voltage of 25 V. It uses X7S dielectric material, operates over a temperature range of -55°C to +125°C, and comes in a compact 0805 (2012 metric) surface-mount package. It is designed to meet AEC-Q200 automotive component qualification requirements.
Q: What is the GCM21BC71E106KE36L used for?
A: The GCM21BC71E106KE36L is used for power supply decoupling, voltage smoothing, and noise filtering in electronic circuits. Its 10 µF capacitance helps stabilize supply rails and reduce unwanted voltage fluctuations. Typical applications include automotive electronic control units, power management circuits, industrial equipment, and other electronic systems that require compact, reliable capacitors. Actual capacitance under operating conditions can vary with applied DC voltage and temperature, so the component should be evaluated under the intended circuit conditions.
Q: Does the GCM21BC71E106KE36L have an alternative manufacturer and part number?
A: A potential alternative is the TDK CGA4J1X7S1E106K125AE, which has similar nominal capacitance, voltage rating, X7S dielectric, and 0805 package specifications. Another option is the Murata GCM21BC71E106KE36K, which has matching core electrical specifications but a different reel packaging code. Before choosing a replacement, verify capacitance, voltage rating, temperature characteristics, package dimensions, automotive qualification, and DC-bias performance to ensure suitability for the application.
Q: Is technical support available for the GCM21BC71E106KE36L?
A: Yes. Technical support is available for the GCM21BC71E106KE36L. Murata provides product specifications and technical documentation to help engineers evaluate capacitor performance, temperature characteristics, and circuit suitability. Nantian Electronics can also assist with product inquiries, component sourcing, datasheet information, and technical support coordination to help customers select suitable components for their designs.
