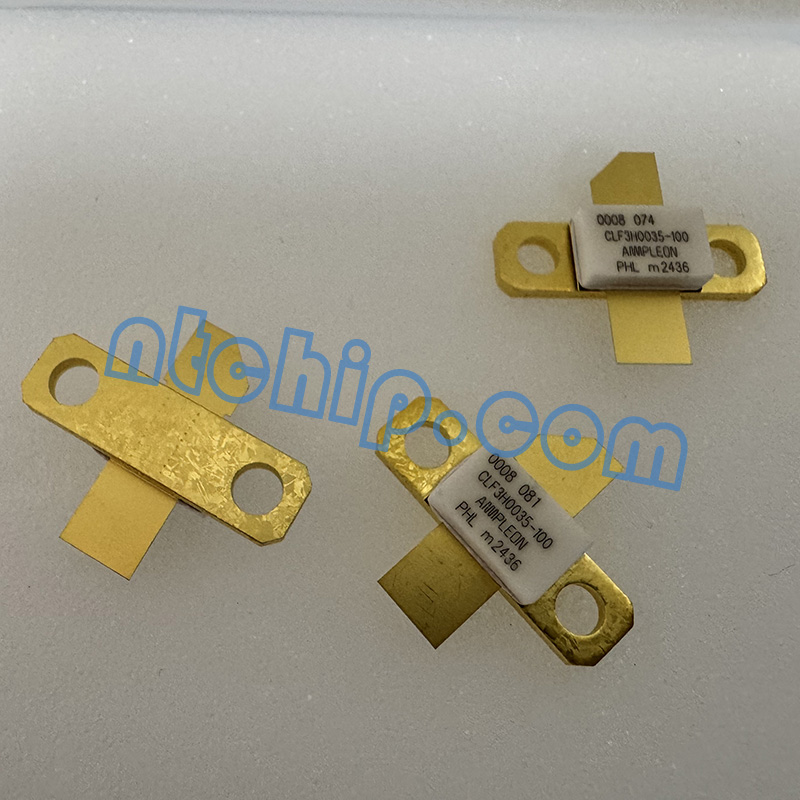

Q: What are the key features of the CLF3H0035-100U?
A: The CLF3H0035-100U is a broadband RF power transistor designed for high-frequency signal amplification. It supports an operating frequency range from DC to 3.5 GHz, operates at a 50 V supply voltage under specified conditions, and provides a typical output power of 100 W with approximately 15 dB gain. Its high-power capability and broadband performance make it suitable for demanding RF applications. The device features a SOT467C package and requires appropriate biasing, impedance matching, and thermal management for reliable operation.
Q: What is the CLF3H0035-100U used for?
A: The CLF3H0035-100U is designed for high-power RF amplification in applications such as broadcast transmitters, industrial RF equipment, communication systems, and other broadband radio-frequency systems. Its wide frequency range and high output power make it suitable for applications that require effective signal amplification across multiple frequency bands.
Q: Does the CLF3H0035-100U have an alternative manufacturer and part number?
A: A potential alternative is the Ampleon CLF3H0035S-100U, which offers similar broadband RF power amplification capabilities but uses a different package variant. Other manufacturers also offer high-power RF transistors that may be considered as alternatives. Before selecting a replacement, compare the operating frequency range, output power, gain, impedance matching requirements, package, and electrical characteristics to ensure compatibility with the original design.
Q: Is technical support available for the CLF3H0035-100U?
A: Yes. Technical support is available for the CLF3H0035-100U. Ampleon provides product documentation and application resources to assist with RF circuit design, bias configuration, impedance matching, and thermal management. Nantian Electronics can also assist with product inquiries, component sourcing, datasheet information, and technical support coordination to help customers meet their application requirements.
