1. What are the main features of NP100P06PLG-E1-AY?

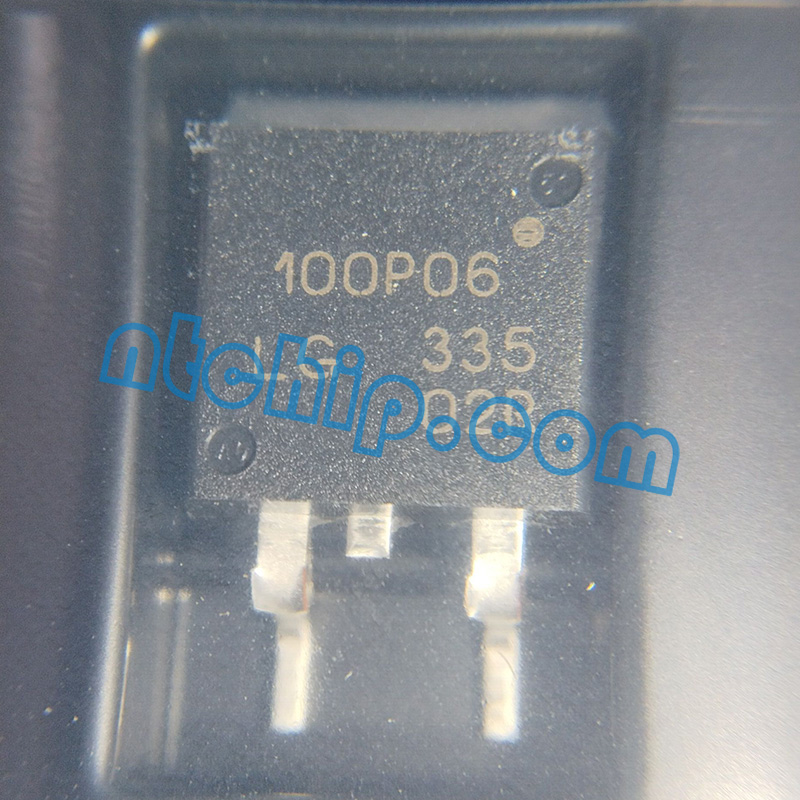

NP100P06PLG-E1-AY is a P-channel power MOSFET designed for high-current switching applications. It has a 60 V drain-source voltage rating and can handle up to 100 A under specified case-temperature conditions. Its maximum RDS(on) is 6.0 mΩ at VGS = −10 V and 7.8 mΩ at VGS = −4.5 V, helping reduce conduction losses and voltage drop. The device also features low input capacitance and a built-in gate protection diode.
2. What is NP100P06PLG-E1-AY used for?
NP100P06PLG-E1-AY is mainly used for high-current power switching and power-management applications. It can be used in automotive power systems, battery circuits, load switching, reverse-polarity protection, power distribution, and other applications where a P-channel MOSFET is required. Its low on-state resistance makes it useful in circuits where reducing conduction losses and heat generation is important.
3. Does NP100P06PLG-E1-AY have any alternative manufacturer and part number, such as?
Yes. Similar 60 V high-current P-channel MOSFETs are available from manufacturers such as Infineon, Vishay, onsemi, and Toshiba. Potential alternatives should be selected according to the required voltage rating, current capability, RDS(on), gate-drive voltage, package, pin configuration, thermal performance, and qualification requirements. Even when another device has similar electrical specifications, it should not be considered a direct replacement until mechanical and electrical compatibility has been confirmed.
4. Is technical support available for NP100P06PLG-E1-AY?
Yes. Technical documentation and product information are available for NP100P06PLG-E1-AY, including electrical characteristics, package information, operating conditions, and application details. For new designs or replacement projects, engineers should review the latest datasheet and verify gate-drive conditions, power dissipation, thermal performance, PCB layout, and maximum current requirements before production use.
