Q1: What are the key features of Analog Devices Inc. AD781ANZ?

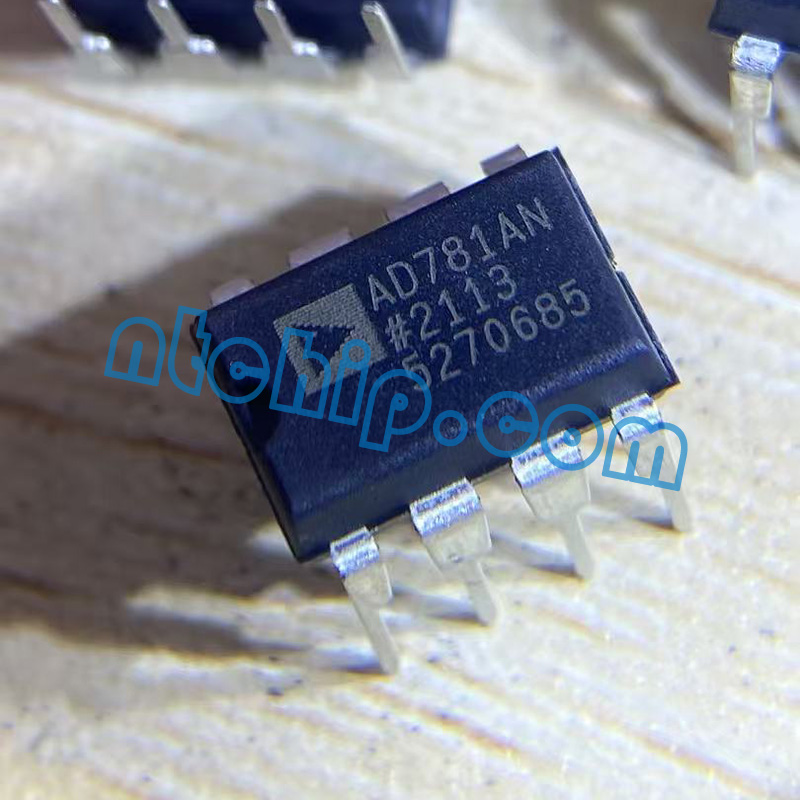

A: AD781ANZ is a high speed monolithic sample and hold amplifier with a maximum acquisition time of 700 ns to 0.01 percent. It features low power dissipation of 95 mW, a low droop rate, 75 ps maximum aperture jitter, low distortion, an internal hold capacitor, and a self correcting architecture. The device is housed in an 8 pin PDIP package and is designed for accurate analog signal sampling.
Q2: What is AD781ANZ used for?
A: AD781ANZ is mainly used to capture and hold analog signals before analog to digital conversion. It is suitable for data acquisition systems, high speed ADC front ends, instrumentation, measurement equipment, and other sampled data circuits. Its fast acquisition time and low droop rate help maintain signal accuracy during the hold period.
Q3: Does AD781ANZ have any alternative manufacturer and part number?
A: Possible alternatives include other high speed sample and hold amplifiers, such as Analog Devices AD783. However, AD783 has different acquisition time, distortion, jitter, and other electrical characteristics, so it should not be considered a direct drop in replacement. Any alternative should be checked for supply voltage, acquisition time, droop rate, aperture jitter, package, pin configuration, and required sampling accuracy before substitution.
Q4: Is technical support available for AD781ANZ?
A: Yes. Nantian Electronics can provide technical support for AD781ANZ, including product parameters, datasheet and pin diagram information, application requirements, replacement evaluation, and purchasing assistance. Customers can provide their sampling frequency, input signal characteristics, supply voltage, and application requirements so that a suitable alternative can be evaluated.
