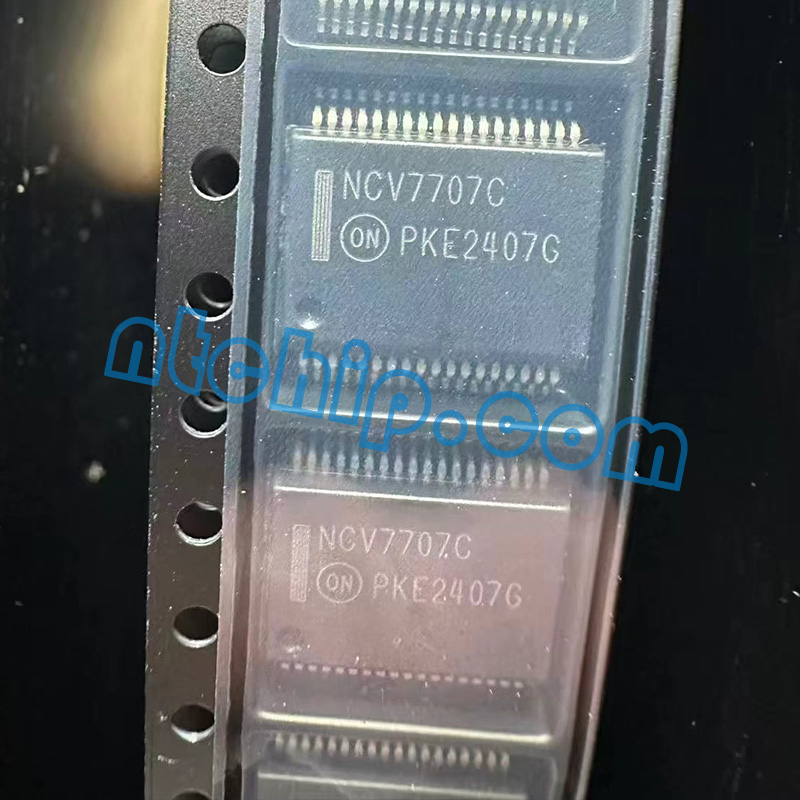

Q1: What are the main features of the onsemi NCV7707DQCR2G?
A: The NCV7707DQCR2G is an automotive door module driver IC operating from 5.5 V to 28 V. It integrates six high side and six low side drivers configured as half bridges, four high side lamp drivers, a high side mirror heating driver, and electro chromic mirror control. It also supports independent PWM control, programmable soft start, current sensing, 24 bit SPI communication, and protection against short circuit, overvoltage, and overtemperature. The device is AEC Q100 qualified and supplied in a 36 pin SSOP exposed pad package.
Q2: What is the NCV7707DQCR2G used for?
A: The NCV7707DQCR2G is designed primarily for automotive door and body control applications. It can control mirror positioning, folding, heating, electro chromic mirror functions, door lock related motors, LEDs, lamps, and other vehicle loads. Its combination of multiple half bridges, lamp drivers, PWM control, diagnostics, and SPI communication allows several door module functions to be integrated into one device.
Q3: Are there alternative manufacturers and part numbers for the NCV7707DQCR2G?
A: Direct drop in replacements are very limited because the NCV7707DQCR2G combines a specific number of half bridge outputs, lamp drivers, mirror heating control, electro chromic mirror control, SPI diagnostics, and automotive protection functions in one device. Other automotive driver ICs, such as onsemi NCV7703C or NCV7708F, may be considered for related mirror or door control applications, but they do not necessarily provide the same functions or pin configuration. Any replacement should be checked for supply range, output current, driver configuration, SPI behavior, protection functions, package, pinout, and software compatibility before use.
Q4: Is technical support available for the NCV7707DQCR2G?
A: Yes. Technical support can be provided for the NCV7707DQCR2G, including assistance with parameters, datasheet information, pin configuration, application requirements, replacement evaluation, and purchasing information. Nantian Electronics can also assist customers in checking the suitability of this part for their automotive electronic designs.
