Q1: What are the main features of the ADL2012-1R5M-T00?

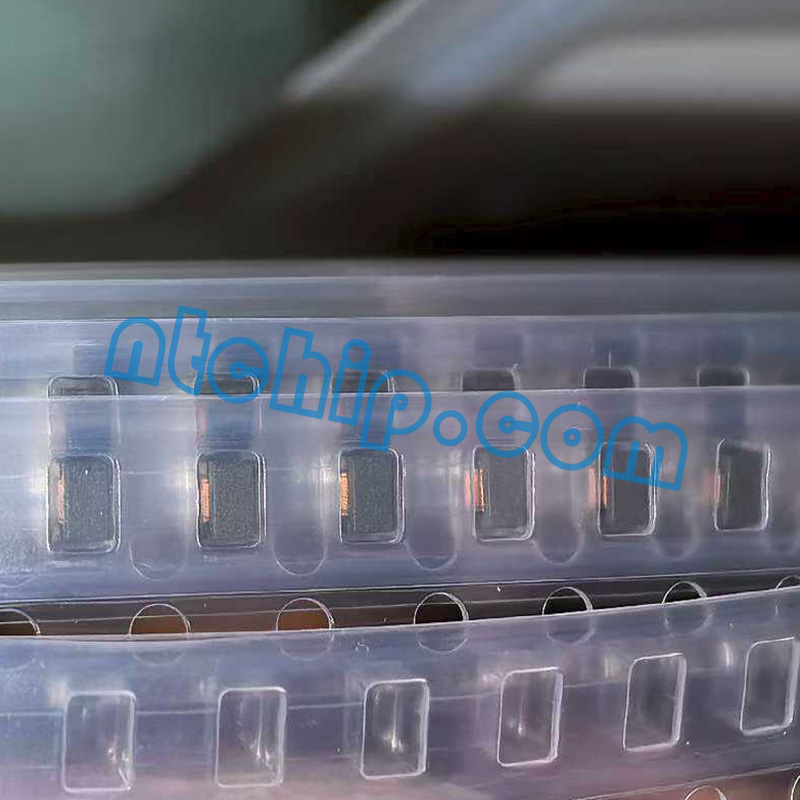

The TDK ADL2012-1R5M-T00 is a compact 1.5 µH wirewound inductor designed for high-frequency and power management applications. It features an 0805 (2012 metric) surface-mount package with a low-profile structure and low DC resistance of 210 mΩ maximum. The inductor supports current ratings up to 620 mA and provides excellent broadband impedance characteristics and strong DC bias performance through TDK’s optimized coil structure design. It also offers reliable operation across a wide temperature range from –40°C to +125°C and complies with AEC-Q200 automotive reliability standards.
Q2: What applications is it commonly used for?
This inductor is commonly used in automotive electronics, DC-DC converters, power supply circuits, RF modules, communication equipment, and portable electronic devices. It is suitable for filtering, noise suppression, impedance matching, and power management applications where compact size and stable electrical performance are important.
Q3: Are there alternative manufacturers or part numbers?
Yes. Similar compact wirewound inductors are available from manufacturers such as Murata, Taiyo Yuden, Coilcraft, Vishay, and Würth Elektronik. Comparable alternatives may include Murata LQH series, Coilcraft LPS series, or Würth WE-MI inductors with similar inductance, current rating, and package size. Engineers should compare electrical specifications, DC resistance, current capability, and mounting dimensions before selecting a replacement part.
Q4: Is technical support available for this part?
Yes. TDK provides technical documentation including datasheets, design resources, and application guidance for the ADL2012-1R5M-T00. In addition, suppliers such as Nantian Electronics can provide technical support, product consultation, datasheet downloads, and assistance with component selection and integration into customer designs.
