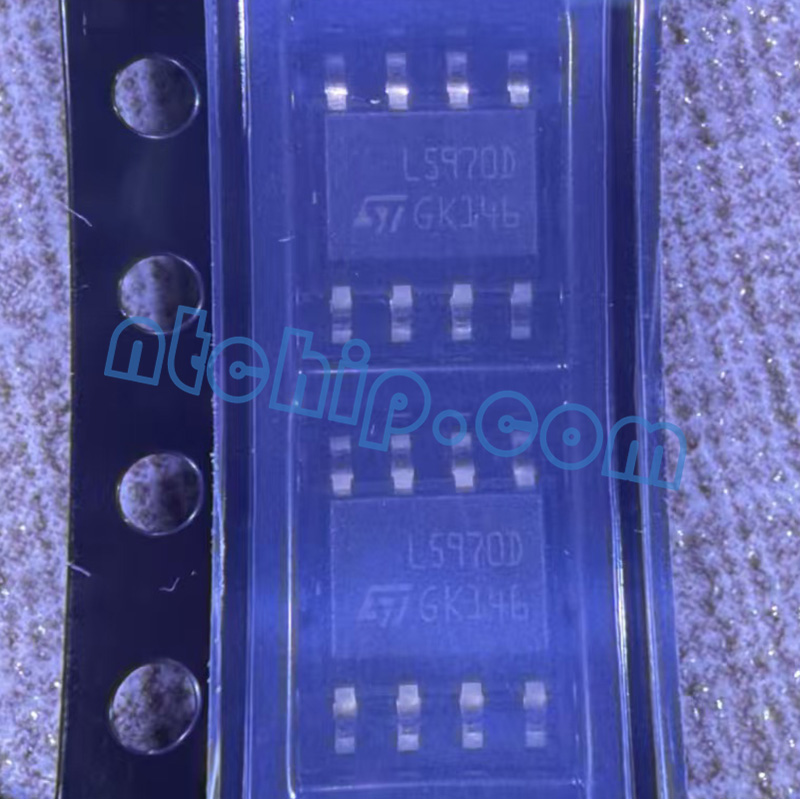

Q1: What are the main features of the STMicroelectronics L5970D013TR?
A: The L5970D013TR is a buck switching regulator designed for efficient step-down power conversion. It supports an input voltage range of 4.4V to 36V and can provide up to 1A of output current. Its output voltage is adjustable from 1.2V to 35V, and it operates at a fixed 250kHz switching frequency. Other features include 100% duty-cycle low-dropout operation, voltage feedforward, zero-load current operation, internal current limiting, synchronization, feedback-disconnection protection, inhibit control for low standby consumption, and thermal shutdown.
Q2: What is the L5970D013TR used for?
A: The L5970D013TR is commonly used to convert a higher DC input voltage into a stable lower output voltage. Typical applications include industrial control equipment, embedded systems, telecommunications equipment, automotive electronics, distributed power supplies, instrumentation, and general-purpose DC-DC converters. Its wide input range and adjustable output make it suitable for systems requiring flexible and reliable power regulation.
Q3: Does the L5970D013TR have an alternative manufacturer and part number?
A: Yes. Comparable buck regulator solutions are available from manufacturers such as Texas Instruments, Analog Devices, onsemi, and Monolithic Power Systems. Possible alternatives include the Texas Instruments LM2596, Analog Devices LT1376, onsemi NCV317, and Monolithic Power Systems MP2307. These devices are not necessarily pin-to-pin replacements and may differ in input-voltage range, output-current capability, switching frequency, package, control method, and protection functions. Designers should compare the electrical and mechanical specifications before selecting an alternative.
Q4: Is technical support available for the L5970D013TR?
A: Yes. As a professional STMicroelectronics supplier and distributor, Nantian Electronics provides technical support for the L5970D013TR, including datasheets, product specifications, pin diagram references, inventory inquiries, alternative part recommendations, and application guidance. Customers are welcome to contact our sales and technical support team for product selection assistance, competitive quotations, availability information, and ordering support.
