Q: What are the main features of the Analog Devices Inc. AD5941BCPZ-RL7?

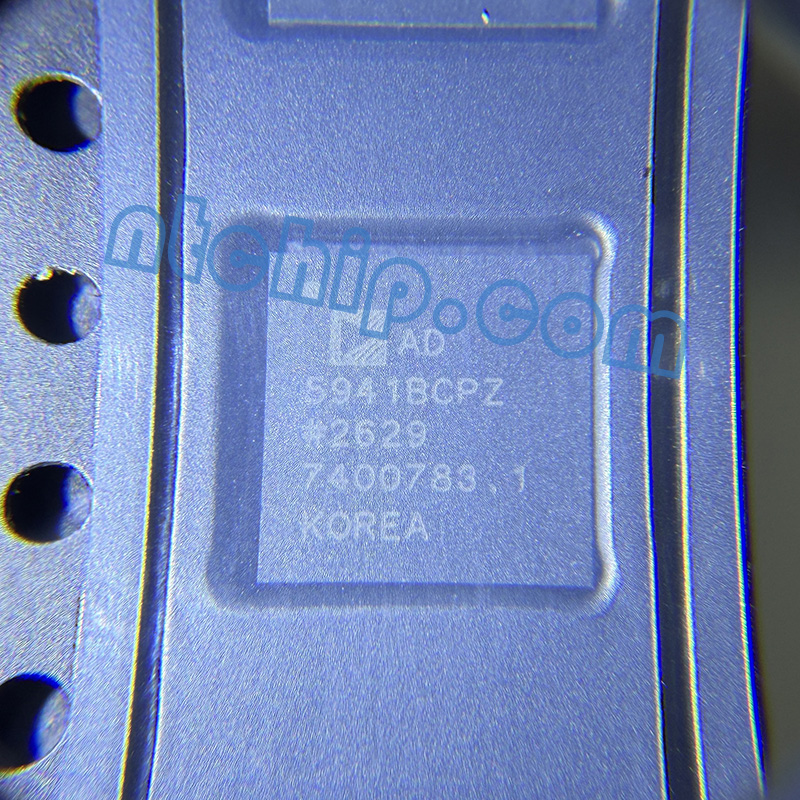

A: The AD5941BCPZ-RL7 is a high precision, low power analog front end designed for electrochemical and impedance measurements. It integrates a 16-bit analog to digital converter, programmable amplifiers, voltage digital to analog converters, low power and high speed transimpedance amplifiers, and an impedance measurement engine. It supports sensor current measurements from 50 pA to 3 mA, includes an SPI interface, and operates from a 2.8V to 3.6V supply. The device is housed in a 48-lead LFCSP package and operates over a temperature range of -40°C to +85°C.
Q: What is the AD5941BCPZ-RL7 used for?
A: This device is used to measure small electrical signals from sensors and analyze electrochemical behavior. Typical applications include electrochemical gas sensors, chemical analysis equipment, skin and body impedance monitoring, continuous glucose monitoring systems, battery impedance testing, and portable medical instruments. Its integrated measurement and signal processing functions help reduce external circuitry and support low power designs.
Q: Are there alternative manufacturers and part numbers for the AD5941BCPZ-RL7?
A: The Analog Devices AD5940BCBZ-RL7 is a related device in the same product family and may be considered for designs with compatible requirements. However, it uses a different package, so it is not a direct pin to pin replacement. The AD5941WBCPZ-RL7 is another related option designed for an extended operating temperature range of -40°C to +105°C. Other manufacturers offer analog front ends for electrochemical sensing, but a suitable alternative must be evaluated carefully for ADC resolution, measurement range, impedance capabilities, power consumption, package, and software compatibility.
Q: Is technical support available for the AD5941BCPZ-RL7?
A: Yes. Nantian Electronics can assist with product selection, technical parameter information, datasheet and pin diagram guidance, availability inquiries, and purchasing support. For application-specific questions, confirm sensor requirements, measurement accuracy, power consumption, and interface compatibility before finalizing your design.
