Q1: What are the main features of Analog Devices Inc. LTC1487CS8#TRPBF?

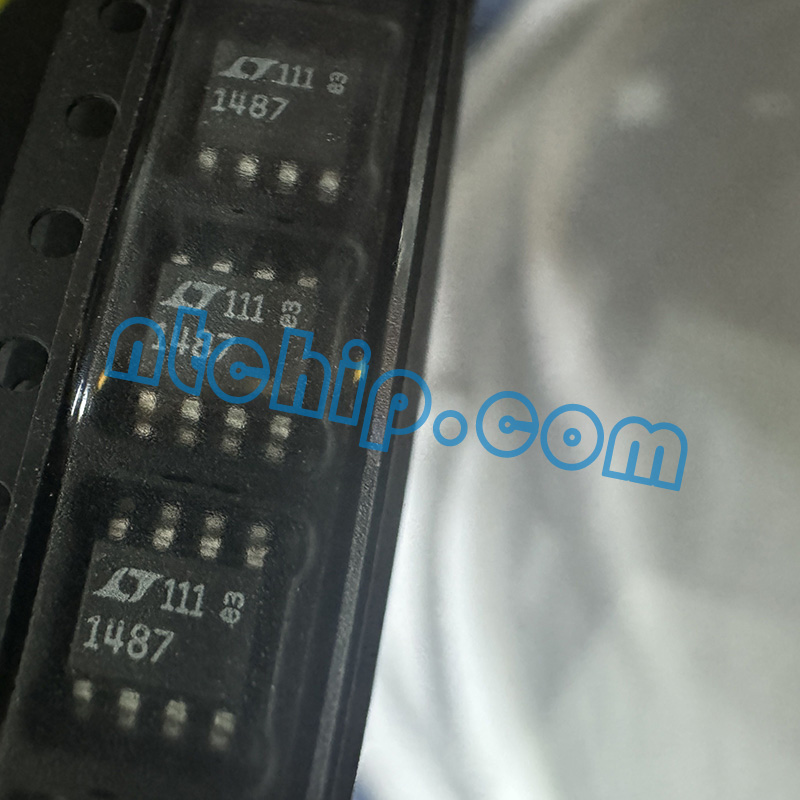

A: LTC1487CS8#TRPBF is a low-power half-duplex RS485 and RS422 transceiver with one driver and one receiver. It operates from a single 5 V supply and supports up to 256 transceivers on one bus through its high input impedance. Key features include controlled slew rate for reduced EMI, a -7 V to 12 V common-mode range, plus or minus 10 kV ESD protection, thermal shutdown, glitch-free power-up and power-down operation, and 1 uA shutdown current. The device is available in an 8-pin SO package.
Q2: What is LTC1487CS8#TRPBF used for?
A: LTC1487CS8#TRPBF is used for differential data communication in RS485 and RS422 networks. Typical applications include industrial communication, instrumentation, building automation, battery-powered equipment, control systems, and multidrop communication networks. Its controlled-slew-rate driver helps reduce electromagnetic interference, while its high input impedance supports systems with many transceivers connected to the same bus.
Q3: Does LTC1487CS8#TRPBF have any alternative manufacturer and part number?
A: Possible alternatives include Analog Devices ADM1487EARZ and LTC1483CS8#TRPBF, as well as Renesas ISL81487EIBZ. These devices are listed as similar or parametric-equivalent options, but they should not automatically be treated as direct drop-in replacements. Before substitution, check the pinout, supply voltage, data rate, common-mode range, receiver characteristics, slew rate, package, temperature range, and system communication requirements.
Q4: Is technical support available for LTC1487CS8#TRPBF?
A: Yes. Technical support can cover RS485 and RS422 interface design, bus termination, transceiver addressing, driver and receiver enable control, common-mode voltage, EMI reduction, ESD protection, power supply requirements, PCB layout, and replacement evaluation. Nantian Electronics can also provide LTC1487CS8#TRPBF parameters, datasheet information, pin diagram instructions, quotation, and purchasing support.
