Q1: What are the main features of the onsemi NFP36060L42T?

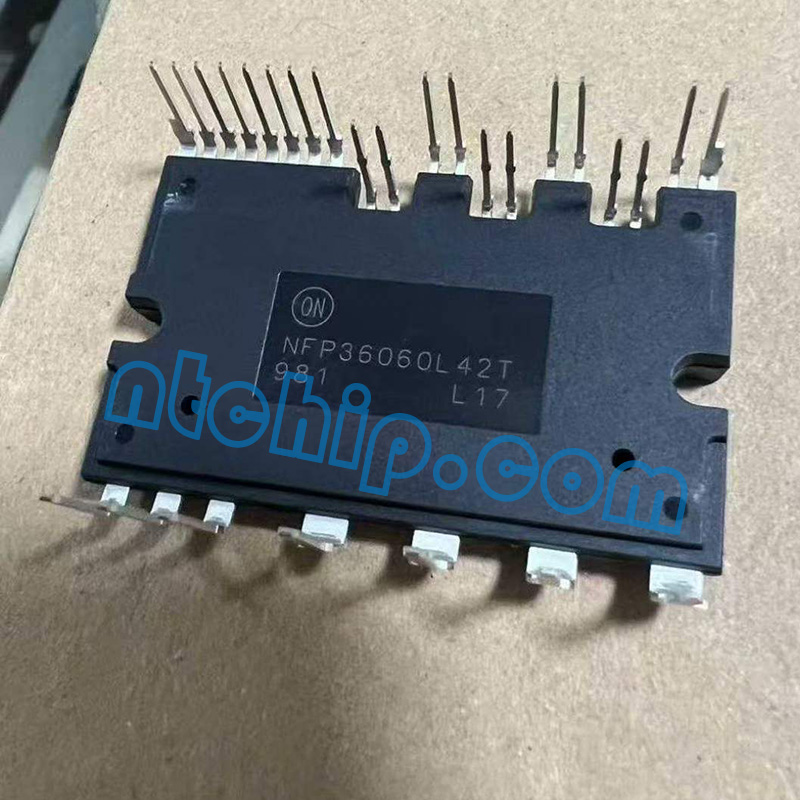

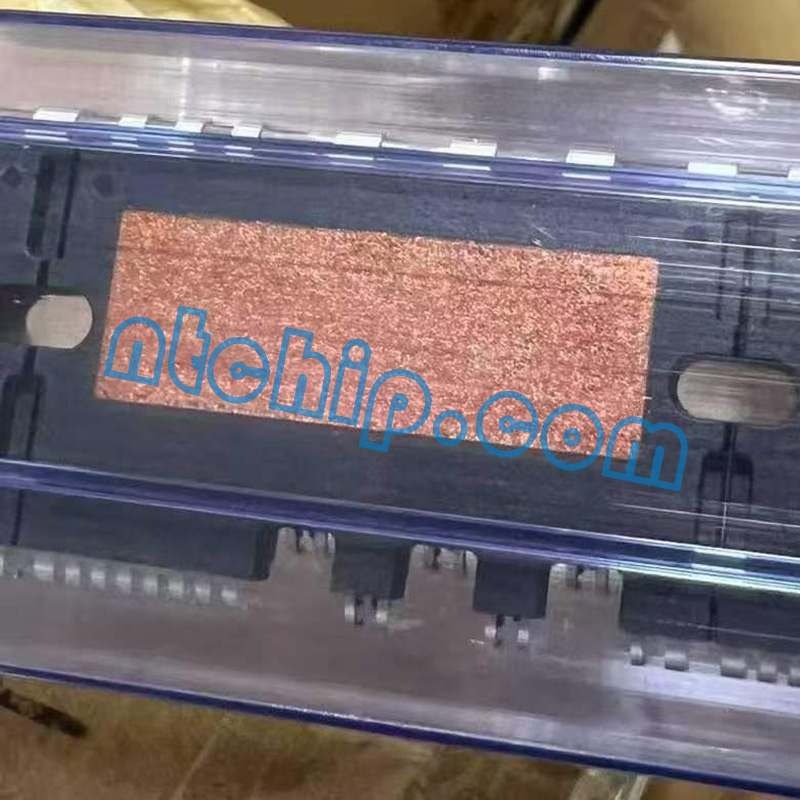

A: The NFP36060L42T is a 600V, 60A two-phase power driver module designed for bridgeless power factor correction (PFC) applications. It integrates low-loss fourth-generation field-stop IGBTs, gate drivers, and protection functions in a 27-PowerDIP module. The module uses an AlN DBC substrate for low thermal resistance and is optimized for switching frequencies around 20kHz. It also includes a built-in NTC thermistor for temperature monitoring, an integrated shunt resistor for current sensing, and a 2500Vrms/1-minute isolation rating. The module is UL certified under UL1557.
Q2: What is the NFP36060L42T used for?
A: The NFP36060L42T is mainly used in high-power AC-DC conversion systems where efficient power factor correction is required. Typical applications include industrial power supplies, air-conditioning equipment, high-power adapters, motor drive systems, UPS equipment, renewable-energy power converters, and other power electronics requiring high-voltage, high-current PFC operation. Its integrated gate drivers, current sensing, and temperature monitoring help simplify the overall power-stage design.
Q3: Does the NFP36060L42T have an alternative manufacturer and part number?
A: Yes, comparable two-phase IGBT power modules are available from manufacturers such as Infineon Technologies, Mitsubishi Electric, Fuji Electric, and STMicroelectronics. Possible alternatives include the Infineon IKW series power modules, Mitsubishi Electric PM series modules, Fuji Electric 2MBI series modules, and STMicroelectronics STGIPN series modules. However, these products are not necessarily pin-to-pin replacements for the NFP36060L42T. When selecting an alternative, designers should compare voltage and current ratings, PFC topology, gate-driver configuration, switching frequency, thermal resistance, package dimensions, pinout, isolation rating, and current-sensing functions.
Q4: Is technical support available for the NFP36060L42T?
A: Yes. As a professional onsemi supplier and distributor, Nantian Electronics provides technical support for the NFP36060L42T, including datasheets, product specifications, pin diagram references, inventory inquiries, alternative part recommendations, and application guidance. Customers are welcome to contact our sales and technical support team for product selection assistance, competitive quotations, availability information, and ordering support.
