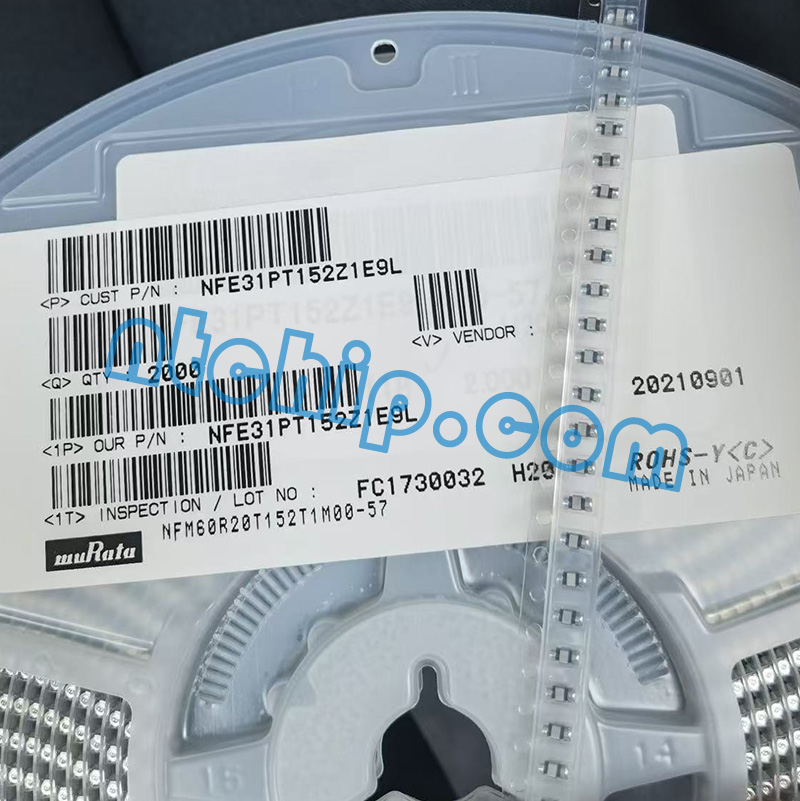

Q1: What are the main features of the NFE31PT152Z1E9L?
A: The NFE31PT152Z1E9L is a third-order LC (T-type) low-pass EMI filter designed for effective suppression of conducted electromagnetic interference. It features a capacitance of 1500 pF, supports a rated current of up to 6 A, and is packaged in a compact 1206 (3216 Metric) surface-mount package with a 3-pad configuration. The filter provides excellent high-frequency noise attenuation while maintaining stable power and signal transmission in electronic circuits.
Q2: What is the NFE31PT152Z1E9L used for?
A: This EMI filter is commonly used to reduce conducted noise on power and signal lines in electronic equipment. Typical applications include industrial automation systems, automotive electronics, communication equipment, consumer electronics, power supplies, embedded systems, and other devices that require improved electromagnetic compatibility (EMC) and enhanced signal integrity.
Q3: Are there alternative manufacturers and part numbers available?
A: Yes. Comparable EMI filters are available from manufacturers such as TDK, KYOCERA AVX, TAIYO YUDEN, Samsung Electro-Mechanics, and Würth Elektronik. When selecting an alternative, designers should compare key specifications including filter structure, capacitance (1500 pF), rated current (6 A), package size (1206/3216 Metric), insertion loss, impedance characteristics, and operating conditions to ensure compatibility with the original design.
Q4: Is technical support available for this part?
A: Yes. Technical support is available through professional distributor Nantian Electronics. Services include datasheet access, technical documentation, component selection assistance, cross-reference recommendations, inventory availability checks, quotation support, and application guidance to help customers successfully integrate the NFE31PT152Z1E9L into their EMI suppression and circuit protection designs.
