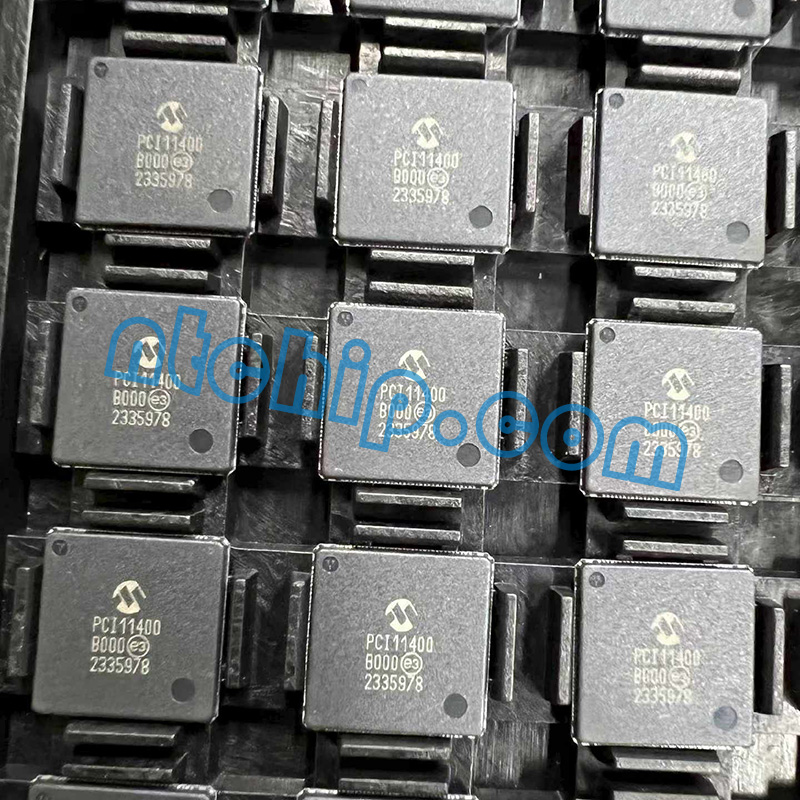

Q1: What are the main features of the PCI11400/MXX?
A: The PCI11400/MXX is a highly integrated connectivity and switching device that combines PCIe, USB 3.2 Gen 2, and advanced power management functions. It supports a 4-lane PCIe upstream interface (up to 8 GT/s per lane) and a 1-lane downstream interface, along with integrated USB 3.2 Gen 2 PHYs and an xHCI USB host controller. It also includes multiple USB PHY options, flexible Type-C/Type-A configuration support, and built-in protection features such as undervoltage/overvoltage protection, ESD protection, and strong latch-up immunity.
Q2: What is the PCI11400/MXX used for?
A: This device is used in high-speed embedded and computing platforms that require efficient data communication and interface expansion. Typical applications include docking stations, industrial computing systems, embedded motherboards, storage solutions, and multi-interface hubs. It is especially useful in systems that need to bridge PCIe and USB 3.2 connectivity while maintaining high bandwidth and low power operation.
Q3: Are there alternative manufacturers and part numbers available?
A: Direct equivalents are limited because the PCI11400/MXX integrates multiple complex functions such as PCIe switching and USB 3.2 host control in a single device. However, similar functionality can be achieved using multi-chip solutions or alternative controllers from manufacturers such as Texas Instruments, Renesas, ASMedia, and Intel (depending on system architecture). Any replacement must be carefully evaluated for PCIe lane configuration, USB controller capability, PHY integration, and power management compatibility.
Q4: Is technical support available for this part?
A: Yes, technical support is available through professional distributors. Nantian Electronics provides services including datasheet access, technical consultation, cross-reference assistance, inventory checks, and quotation support. It also helps with component selection and system-level integration guidance to ensure proper implementation of the PCI11400/MXX in complex designs.
