Q1: What are the features of the CLVC16T245MDGGREP?

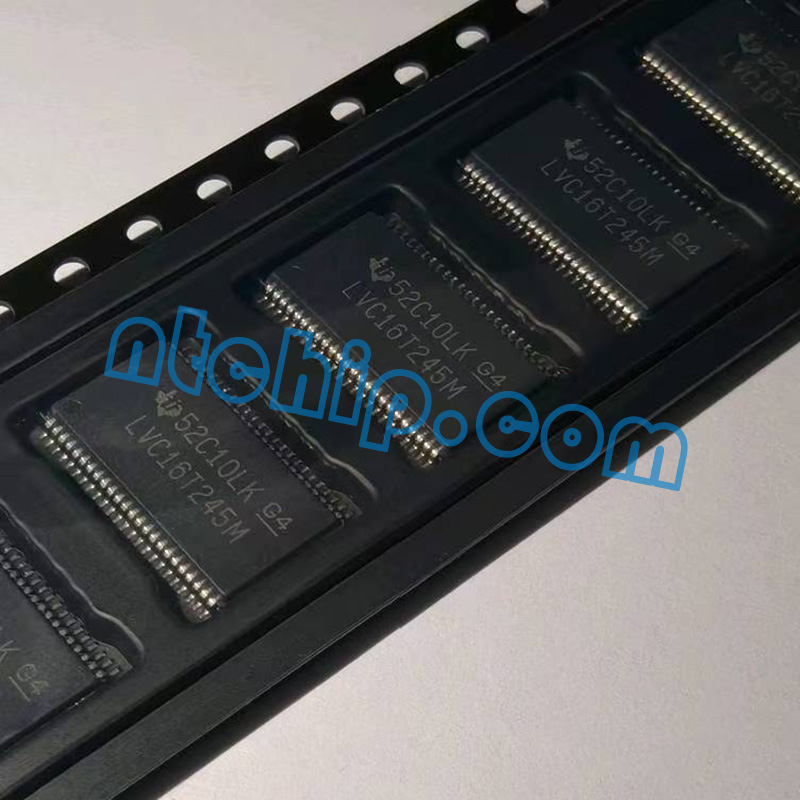

The CLVC16T245MDGGREP is a 16-bit bidirectional voltage-level translator and transceiver. It supports dual-rail operation, allowing each port to work independently over a wide voltage range of 1.65 V to 5.5 V. Key features include overvoltage-tolerant inputs and outputs, high-speed 3-state outputs, VCC isolation for safe operation if one supply is at GND, partial-power-down support via Ioff circuitry, excellent latch-up immunity, and robust ESD protection exceeding JESD standards for human-body, machine, and charged-device models. These features make it highly reliable for mixed-voltage digital systems.
Q2: What is it used for?
This device is commonly used to interface digital systems operating at different voltage levels. Applications include FPGA and microcontroller interfaces, industrial automation systems, communication and networking devices, data acquisition equipment, and other embedded electronics requiring high-speed, bidirectional signal translation with strong protection and signal integrity.
Q3: Does it have alternative manufacturers or part numbers?
Yes. Similar voltage-level translators are available from manufacturers such as Nexperia, ON Semiconductor, and Maxim Integrated. Comparable part numbers should be selected based on voltage ranges, data width, speed, and bus configuration to match the specific application requirements.
Q4: Is technical support available for this part?
Yes. Technical support is available through Texas Instruments and authorized distributors like Nantian Electronics. Support includes datasheets, application notes, design guidance, and assistance with purchasing and integration into systems.
