Q1: What are the main features of the MUN5215DW1T1G?

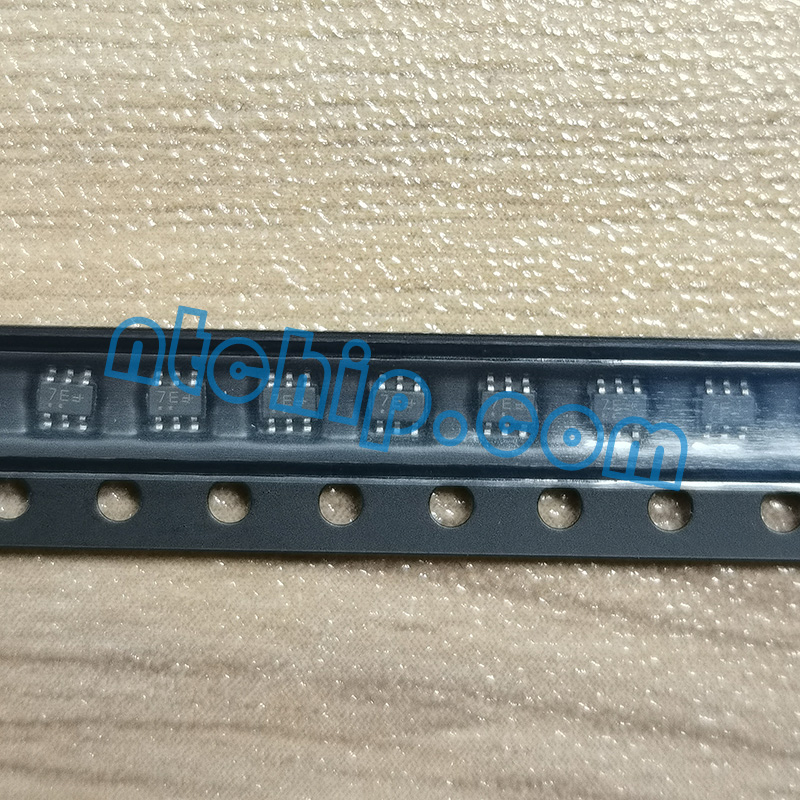

A: The MUN5215DW1T1G is a dual pre-biased NPN bipolar transistor with integrated bias resistors that help eliminate the need for external resistors in many switching circuits. It supports a collector-emitter voltage of 50 V, a maximum collector current of 100 mA, and a power dissipation of 250 mW. Packaged in a compact SC-88/SC70-6/SOT-363 surface-mount package, it helps simplify PCB layouts, reduce component count, and save board space. The device is also Pb-free, RoHS compliant, and available in automotive-qualified versions that meet AEC-Q101 requirements.
Q: What is the MUN5215DW1T1G used for?
A: The MUN5215DW1T1G is widely used in switching circuits, digital logic interfaces, signal conditioning, LED and relay drivers, consumer electronics, industrial control equipment, automotive electronics, and portable devices. Its built-in bias resistors reduce PCB space, simplify assembly, and improve overall design efficiency and reliability.
Q: Does the MUN5215DW1T1G have any alternative manufacturer and part number?
A: Direct drop-in replacements are very limited due to the MUN5215DW1T1G's integrated bias resistor network, dual NPN transistor configuration, and specific package design. However, similar pre-biased transistor solutions may be found from other semiconductor manufacturers such as ROHM Semiconductor, Nexperia, Diodes Incorporated, Toshiba Electronic Devices & Storage, and Microchip Technology. Any alternative should be verified carefully for resistor values, electrical characteristics, package type, and pin compatibility before replacement.
Q: Is technical support available for the MUN5215DW1T1G?
A: Yes. Professional distributors can provide technical support for the MUN5215DW1T1G, including datasheets, pin diagrams, product specifications, application guidance, replacement recommendations, and inventory inquiries. Nantian Electronics also offers quotation services and procurement support to help customers efficiently source this component for new designs or ongoing production.
