1. What are the main features of PCA9554BBSHP?

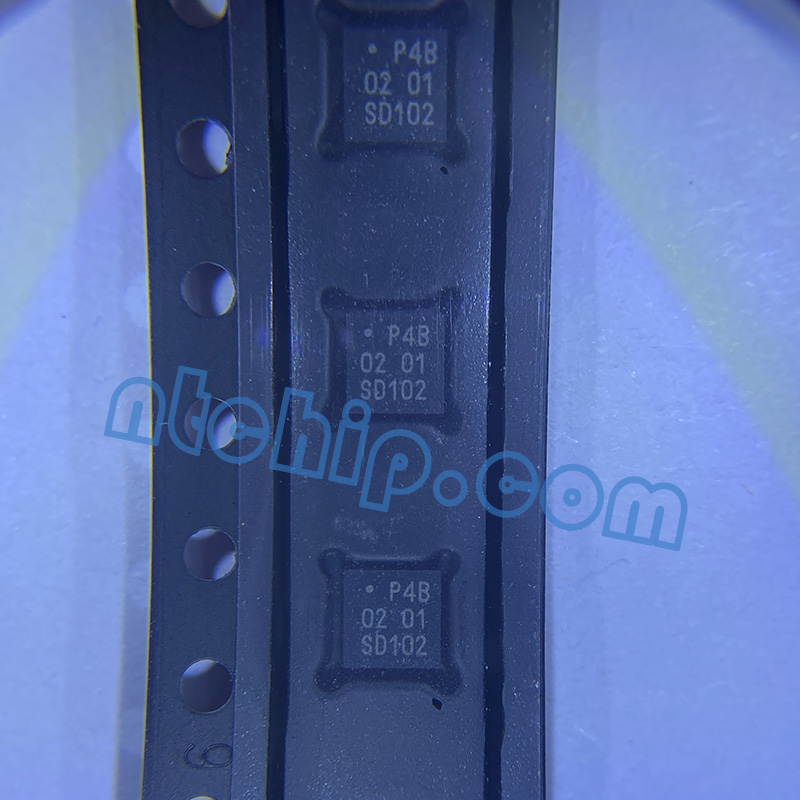

PCA9554BBSHP is an 8-bit GPIO expander that communicates through the I²C-bus or SMBus, allowing a microcontroller or processor to add eight configurable digital I/O ports without using many additional pins. It supports I²C Fast-mode operation up to 400 kHz and provides configurable I/O pins, an active-low open-drain interrupt output, input polarity inversion, power-on reset, and low standby current. The device is housed in a compact 16-pin HVQFN package measuring 3 × 3 mm.
2. What is PCA9554BBSHP used for?
PCA9554BBSHP is used when a system needs additional digital input or output pins. Its eight GPIO channels can be used for controlling LEDs, reading push buttons, monitoring status signals, interfacing with simple sensors, and controlling other digital devices. The interrupt function can alert the host processor when an input changes, which can reduce unnecessary software polling.
3. Does PCA9554BBSHP have any alternative manufacturers and part numbers, such as?
Yes. Possible alternatives include Texas Instruments TCA9554, TCA9554A, and other compatible 8-bit I²C GPIO expanders. NXP also offers related PCA9554-series devices, such as PCA9554BPW and PCA9554CBSHP. However, these parts should not automatically be considered direct drop-in replacements. The I²C address, pin configuration, package, supply voltage, electrical characteristics, and register compatibility should be checked before substitution.
4. Is technical support available for PCA9554BBSHP?
Yes. Technical support is available through NXP's product documentation and design resources. Engineers can use the datasheet and related application information to understand the I²C/SMBus interface, GPIO configuration, interrupt operation, timing, and electrical specifications. For replacement or new-design applications, it is recommended to verify the complete electrical and mechanical requirements before selecting the part.
