Q: What are the main features of the BCX56-16,115?

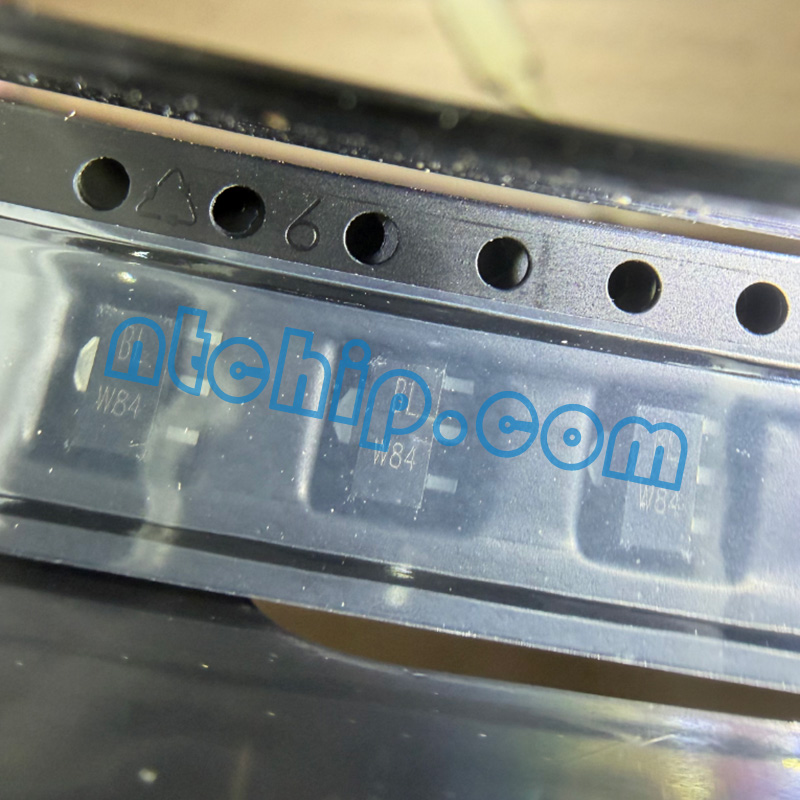

A: The BCX56-16,115 is an NPN bipolar transistor with an 80 V collector-emitter voltage rating, up to 1 A collector current, and a transition frequency of about 180 MHz. It is available in a compact SOT-89 surface-mount package and offers high collector-current capability and high power-dissipation capability. The device also provides different current-gain selections for various circuit requirements.
Q: What is the BCX56-16,115 used for?
A: The BCX56-16,115 can be used for general-purpose amplification and switching in electronic circuits. Its combination of voltage and current capability with a 180 MHz transition frequency makes it suitable for driver stages, signal amplification, load switching, interface circuits, and other medium-power applications where an NPN BJT is preferred.
Q: Does it have any alternative manufacturer and part number, such as?
A: Yes. Potential alternatives include Diodes Incorporated BCX5616QTA and BCX5616TA, as well as similar NPN transistors from onsemi and other manufacturers. However, these parts should not automatically be considered drop-in replacements. Designers should compare voltage rating, collector current, DC gain, transition frequency, power dissipation, package, pin configuration, and thermal characteristics before selecting an alternative.
Q: Is technical support available for this part?
A: Yes. Technical support can include datasheet and pinout information, transistor selection, biasing recommendations, power-dissipation and thermal analysis, circuit application guidance, and alternative-part evaluation. Professional distributors can also assist with specification verification, sourcing, and replacement selection.
