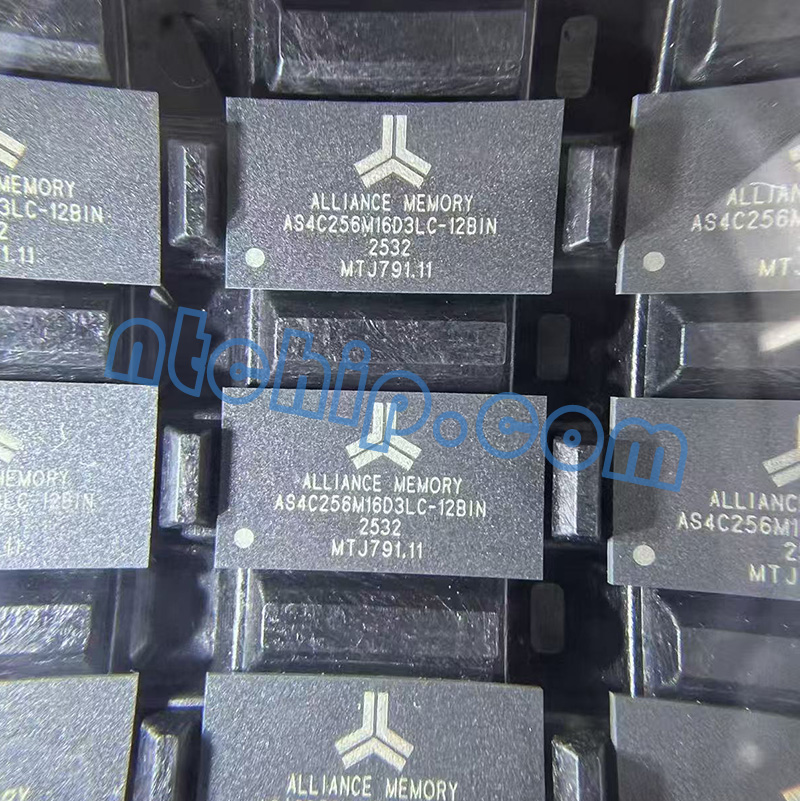

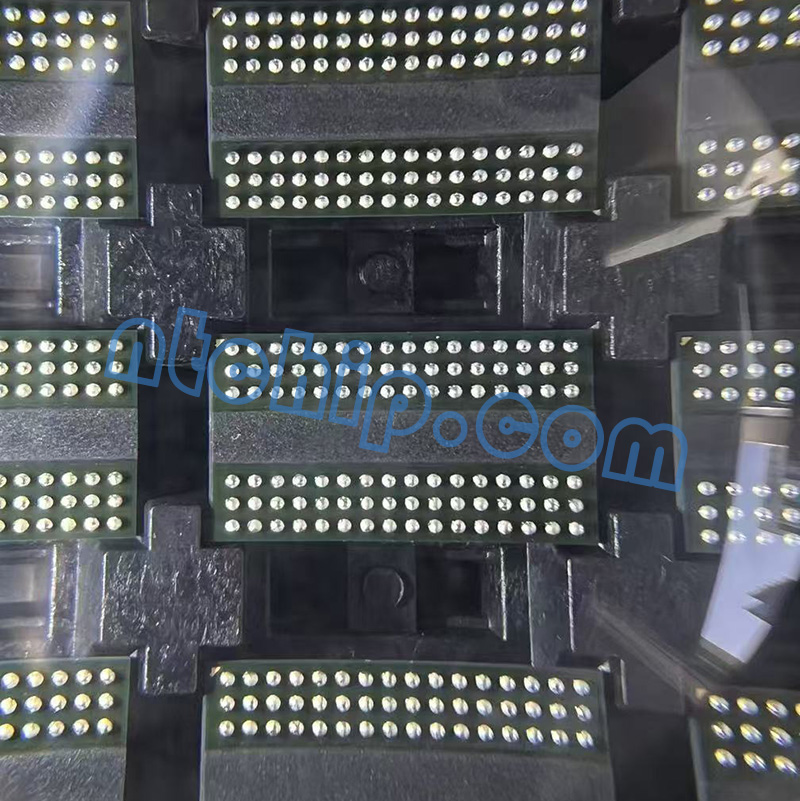

Q: What are the main features of the Alliance Memory, Inc. AS4C256M16D3LC-12BIN?
A: The AS4C256M16D3LC-12BIN is a 4 Gbit DDR3L synchronous dynamic random access memory with a 256M by 16-bit organization. It supports an 800 MHz clock frequency and operates with a low supply voltage of 1.35V, while also supporting 1.5V operation within the specified limits. Key features include eight internal memory banks, an 8n-bit prefetch architecture, programmable burst lengths, and automatic refresh functions. It comes in a 96-ball FBGA package and supports an industrial operating temperature range of -40°C to +95°C.
Q: What is the AS4C256M16D3LC-12BIN used for?
A: This memory IC provides temporary data storage for electronic systems that require fast access to working data during operation. Typical applications include embedded computing platforms, industrial control equipment, networking devices, communication systems, and digital processing systems. Its high capacity and DDR3L interface make it suitable for applications that need reliable data buffering and efficient memory access.
Q: Are there alternative manufacturers and part numbers for the AS4C256M16D3LC-12BIN?
A: Potential alternatives include the ISSI IS43TR16256BL-125KBLI and Micron MT41K256M16TW-107, which offer comparable DDR3 memory configurations. However, these parts may differ in speed grade, timing specifications, package details, voltage requirements, and temperature ratings. Before selecting a replacement, verify the memory organization, pinout, electrical characteristics, timing requirements, and compatibility with the existing memory controller. Related Alliance Memory variants with different suffixes may also have different temperature grades or packaging options.
Q: Is technical support available for the AS4C256M16D3LC-12BIN?
A: Yes. Nantian Electronics can assist with product selection, technical parameter information, datasheet and pin diagram guidance, availability inquiries, and purchasing support. For replacement or design questions, confirm the memory controller requirements, operating voltage, timing settings, and temperature range before choosing a substitute.
