The LPC5528JBD100 by NXP Semiconductors is a high-performance microcontroller built around a 32-bit Arm Cortex®-M33 core, the most energy efficient application processor Arm has ever developed. This robust device offers sizable memory storage options, with 256KB of SRAM and 512KB of flash memory, providing substantial space for application instructions and data storage. A crucial feature of the LPC5528JBD100 is its Cryptography Advanced Standard for Embedded Root of Trust (CASPER), an integral element in secure systems that protects against both physical attacks and software attacks on secure firmware.
NXP Semiconductors LPC5528JBD100 Marking:
On top of its impressive core and security features, the LPC5528JBD100 is equipped with a broad suite of interfaces and peripherals for comprehensive control and communication. These include USB High Speed (HS), Flexcomm Interface, SDIO interface for SD cards, along with 32-bit counter/timers for accurate timing and control operations. Other notable features involve a state-configurable timer subsystem (SCTimer/PWM), a Programmable Logic Unit (PLU), and a high-resolution 16-bit, 1.0 million samples per second Analog-to-Digital Converter (ADC).

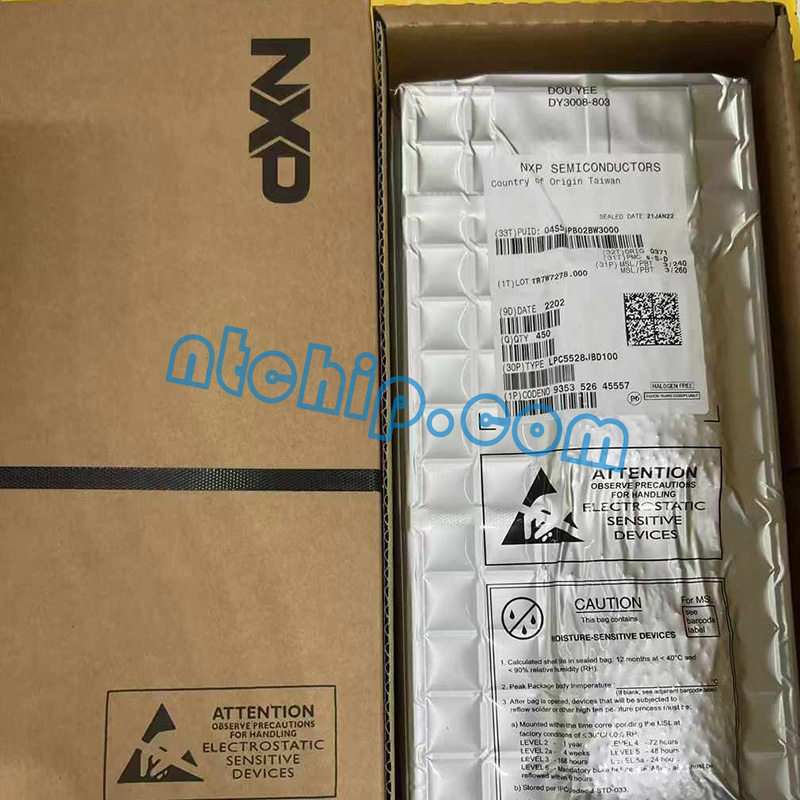

NXP Semiconductors LPC5528JBD100 Package Original Label
Additional components include a comparator, a temperature sensor, and several cryptographic elements such as AES, SHA, and unique PUF for enhanced system security. It's no surprise that Nantian Electronics, as a professional distributor of NXP Semiconductors, maintains a large stock of LPC5528JBD100 units and offers its complete datasheet and pin diagram instructions.
