Q1: What are the main features of the LNK3206D-TL?

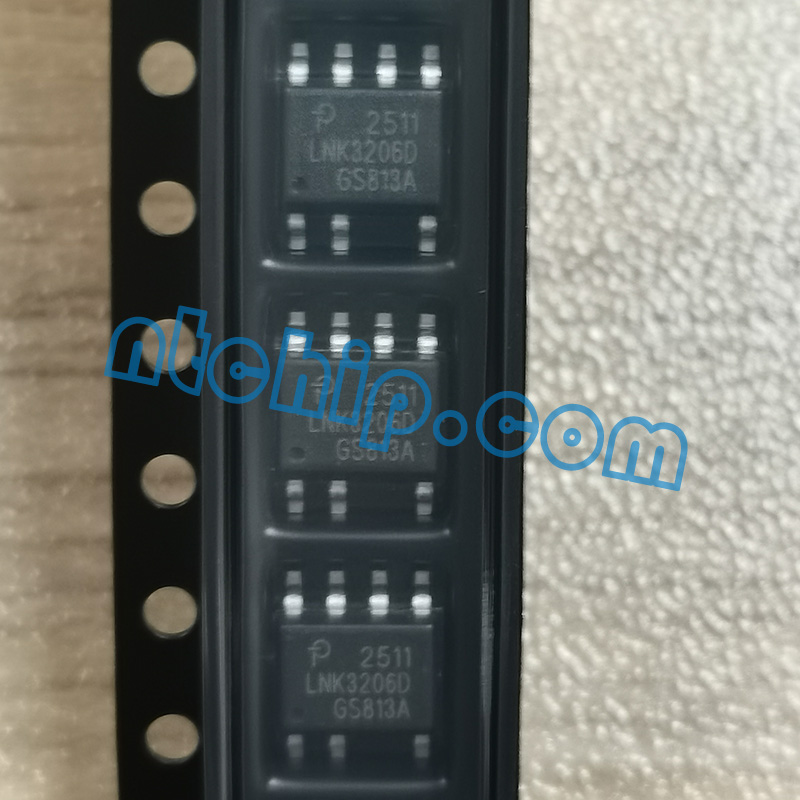

A1: The LNK3206D-TL is an integrated offline switching power supply IC that supports buck, buck-boost, and flyback topologies. It operates at around 66 kHz and integrates a high-voltage MOSFET with control circuitry in a compact SO-8C package. It includes multiple protection functions such as auto-restart for fault conditions, output overvoltage protection, line overvoltage protection, thermal shutdown (OTP), and improved creepage distance for enhanced safety and reliability.
Q2: What is the LNK3206D-TL used for?
A2: This device is commonly used in compact offline AC-DC power supplies such as household appliances, smart home devices, industrial controllers, LED drivers, metering systems, and auxiliary power modules. It is designed for low- to medium-power applications where efficiency, reliability, and minimal external components are required for converting AC mains into regulated DC outputs.
Q3: Does the LNK3206D-TL have alternative manufacturers and part numbers?
A3: Yes. Similar integrated offline switcher solutions are available from manufacturers such as STMicroelectronics, onsemi, Infineon Technologies, and Texas Instruments. Possible alternative parts include VIPer12A, NCP1014, and other compact offline flyback/buck power ICs. When selecting an alternative, it is important to compare output power range, switching topology, protection features, and MOSFET voltage rating.
Q4: Is technical support available for this part?
A4: Yes. Technical support is available through Power Integrations and its authorized distribution channels. Available resources typically include datasheets, reference designs, application notes, layout guidelines, and engineering support documents. Nantian Electronics can also provide product availability, datasheets, and technical assistance for design selection, troubleshooting, and procurement support.
