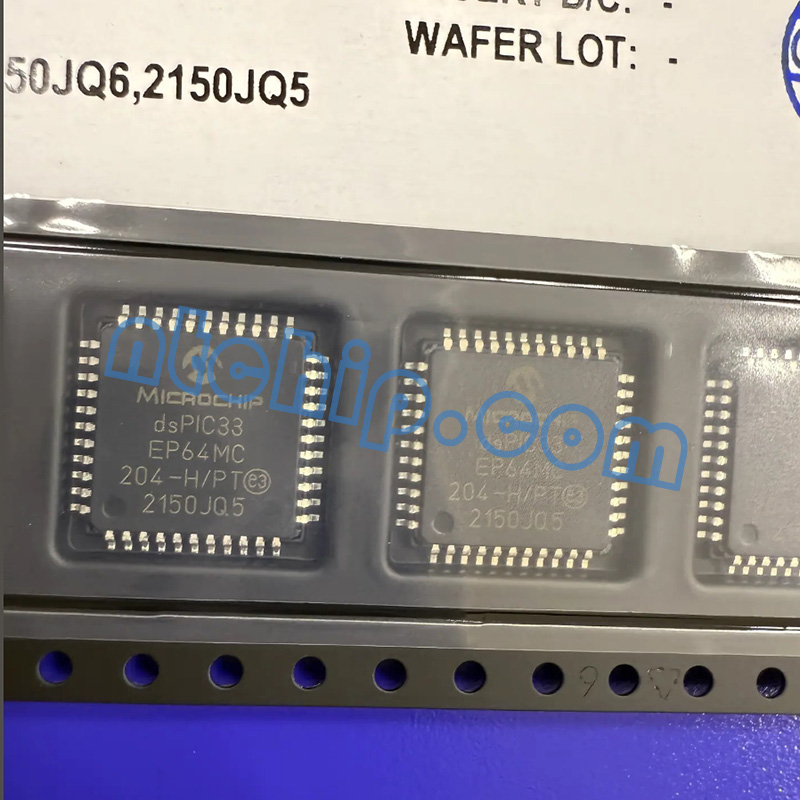

Q1: What are the key features of DSPIC33EP64MC204-H/PT?
A: DSPIC33EP64MC204-H/PT is a 16 bit digital signal controller designed for precision motor control. It provides 64 KB of Flash memory, 8 KB of RAM, a 60 MHz operating speed for the H grade, six motor control PWM outputs, a quadrature encoder interface, programmable trigger generator, multiple timers, four comparators, and integrated operational amplifier functions. It is available in a 44 pin TQFP package and supports a 3.0 V to 3.6 V supply range.
Q2: What is DSPIC33EP64MC204-H/PT used for?
A: This device is mainly used for precision and real time control applications, especially motor control and power conversion. Typical applications include BLDC motor drives, PMSM control, AC induction motor control, inverter systems, power supplies, industrial automation, and other embedded systems requiring fast control calculations and dedicated PWM and feedback functions.
Q3: Does DSPIC33EP64MC204-H/PT have any alternative manufacturer and part number?
A: Possible alternatives include related Microchip devices such as DSPIC33EP64MC504-H/PT, which has the same 64 KB Flash and 8 KB RAM capacity and a 44 pin package, as well as DSPIC33EP64MC206-H/PT for designs that can accommodate a different package and pin configuration. Other manufacturers also offer digital signal controllers and motor control MCUs, but they should not be considered direct drop in replacements without checking the core, memory, PWM channels, analog functions, pinout, package, operating temperature, and software compatibility.
Q4: Is technical support available for DSPIC33EP64MC204-H/PT?
A: Yes. Nantian Electronics can provide technical support for DSPIC33EP64MC204-H/PT, including product parameters, datasheet and pin diagram information, motor control application requirements, replacement evaluation, and purchasing assistance. Customers can provide their motor type, operating conditions, control requirements, and interface needs so that suitable component options can be evaluated.
