Q1: What are the main features of the B82721K2701N20?

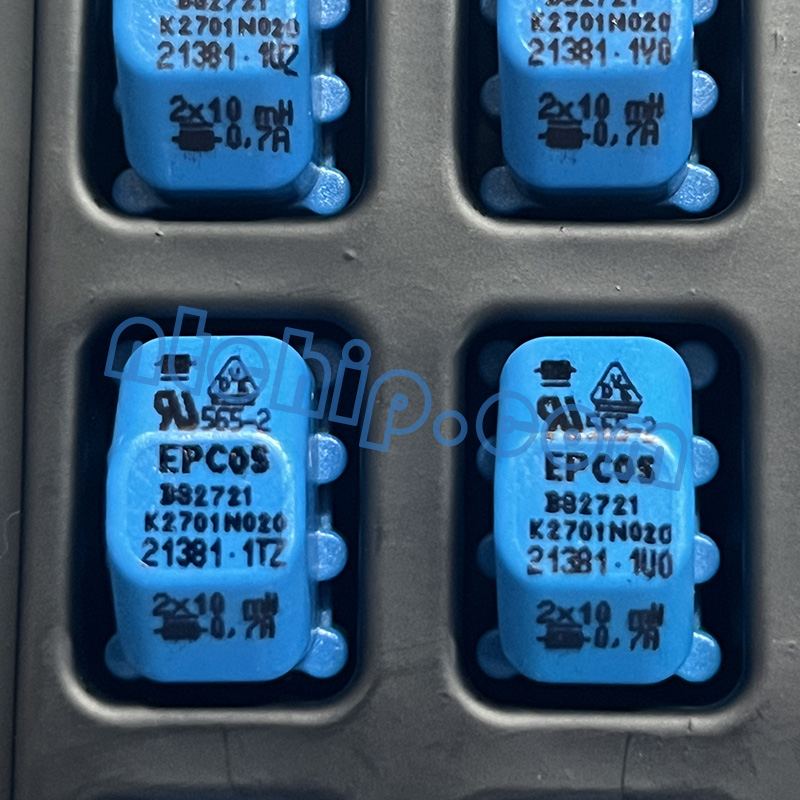

A: The B82721K2701N20 is a common mode choke that provides 10 mH inductance with a rated current of 0.7 A and a maximum DC resistance of 550 mΩ. It features a special winding technique that delivers a high resonance frequency and approximately 1% stray inductance for effective suppression of symmetrical electromagnetic interference (EMI). The device is suitable for wave soldering and is designed to comply with EN 60938-2 and UL 1283 standards, ensuring high reliability and safety.
Q2: What is the B82721K2701N20 used for?
A: This common mode choke is widely used for EMI filtering in switching power supplies, AC/DC power converters, industrial automation equipment, communication systems, home appliances, consumer electronics, and other electronic products. It helps reduce conducted noise, improve electromagnetic compatibility (EMC), and enhance the overall stability and reliability of electrical systems.
Q3: Are there alternative manufacturers and part numbers available?
A: Yes. Comparable common mode chokes are available from manufacturers such as TDK, Murata, Würth Elektronik, Schaffner, and Pulse Electronics. When selecting an alternative, designers should compare key specifications including inductance (10 mH), rated current (0.7 A), DC resistance, impedance characteristics, package dimensions, mounting style, and safety certifications to ensure compatibility with the intended application.
Q4: Is technical support available for this part?
A: Yes. Technical support is available through professional distributor Nantian Electronics. Services include datasheet access, technical documentation, component selection assistance, cross-reference recommendations, inventory availability checks, quotation support, and application guidance to help customers successfully integrate the B82721K2701N20 into their EMI filtering and power management designs.
