Q1: What are the main features of Nanya Technology Corporation NT5CB64M16GP-EK?

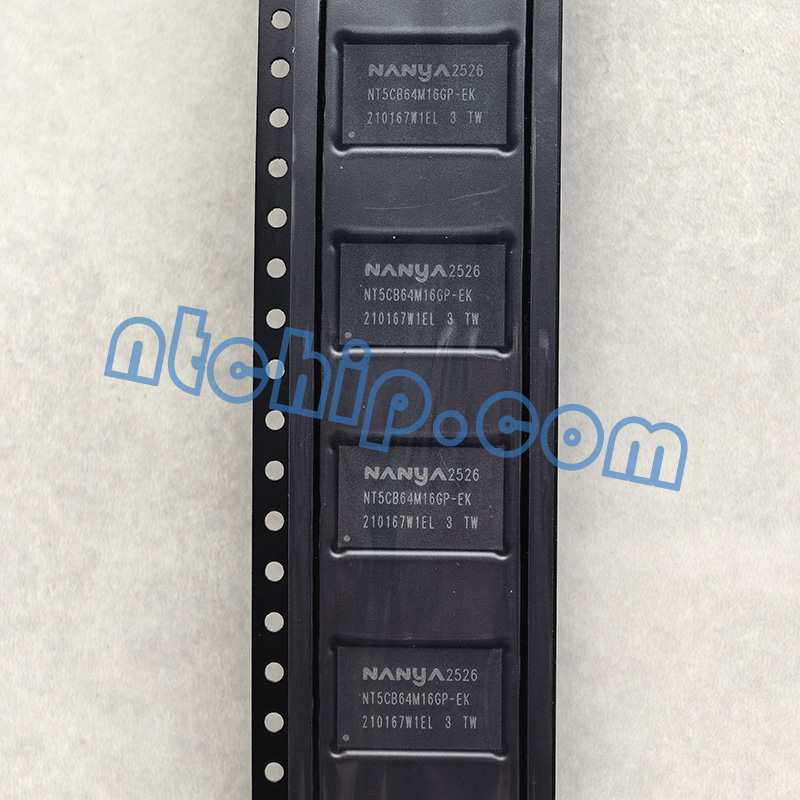

A: NT5CB64M16GP-EK is a 1 Gb DDR3 SDRAM organized as 64M x 16 and housed in a 96 ball BGA package. It supports DDR3 1866 Mbps operation with a 933 MHz clock and 13-13-13 timing. The device features 8n prefetch architecture, differential clock and data strobe signals, auto self refresh, partial array self refresh, power down mode, configurable on die termination, drive strength control, ZQ calibration, write leveling, and read leveling. It operates from a 1.5 V supply and is specified for a commercial temperature range of 0°C to 95°C.
Q2: What is NT5CB64M16GP-EK used for?
A: NT5CB64M16GP-EK is used as system memory in electronic equipment that requires DDR3 SDRAM with a 16 bit data width and 1 Gb density. Typical applications include embedded systems, networking equipment, computing devices, consumer electronics, industrial control equipment, and other systems requiring reliable high speed volatile memory.
Q3: Does NT5CB64M16GP-EK have any alternative manufacturer and part number?
A: Direct drop in alternatives are limited because memory density, x16 organization, DDR3 speed grade, operating voltage, timing, package, temperature range, and memory initialization requirements must all match. Within the Nanya family, NT5CB64M16GP-FL provides the same 1 Gb x16 organization in a 96 ball BGA package but supports a higher DDR3 speed grade, while NT5CB64M16GP-DI is a lower speed DDR3 version. Other manufacturers such as Micron, Samsung, and SK hynix also offer 1 Gb x16 DDR3 SDRAM devices, but exact pin, timing, voltage, and compatibility requirements should be verified before replacement.
Q4: Is technical support available for NT5CB64M16GP-EK?
A: Yes. Technical support can cover DDR3 memory initialization, timing configuration, signal integrity, termination settings, ZQ calibration, write and read leveling, power management, PCB layout, and replacement evaluation. Nantian Electronics can also provide NT5CB64M16GP-EK parameters, datasheet PDF, pin diagram information, quotation, and purchasing support.
