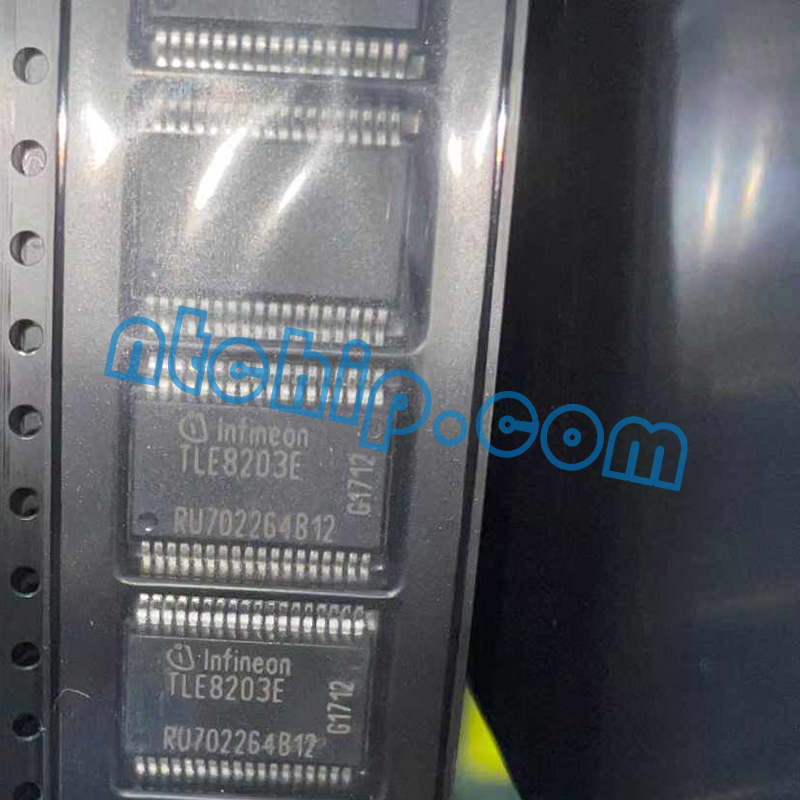

The TLE8203E, designed by Infineon Technologies, is an essential component tailored for automotive mirror control applications. This robust chip integrates all the power stages required to operate various mirror functions including adjustment, defrosting, and turn signal illumination for both 5W and 10W lamps. Built using Infineon’s innovative Smart Power Technology (SPT), the TLE8203E combines bipolar and CMOS control circuitry with DMOS power devices on a single monolithic die. This integration facilitates superior performance and durability in demanding automotive environments.
Key features of the TLE8203E include advanced protection mechanisms against short circuits and over-temperature conditions, enhancing vehicle safety. It also provides detailed diagnostic capabilities to ensure consistent and reliable operation. Furthermore, it incorporates a current sense output feature to augment system reliability and a standard SPI interface to facilitate efficient communication with microcontrollers. This interface not only reduces the need for extensive I/O lines but also allows for precise control over the power stages and thorough system diagnostics.
Infineon Technologies TLE8203E Original Reel Label
Nantian Electronics, as a dedicated Infineon Technologies distributor, stocks a wide range of TLE8203E units and supports customers with access to datasheets, pin diagrams, and other technical resources.
