Q1: What are the main features of the Skyworks Solutions SKY67150-396LF?

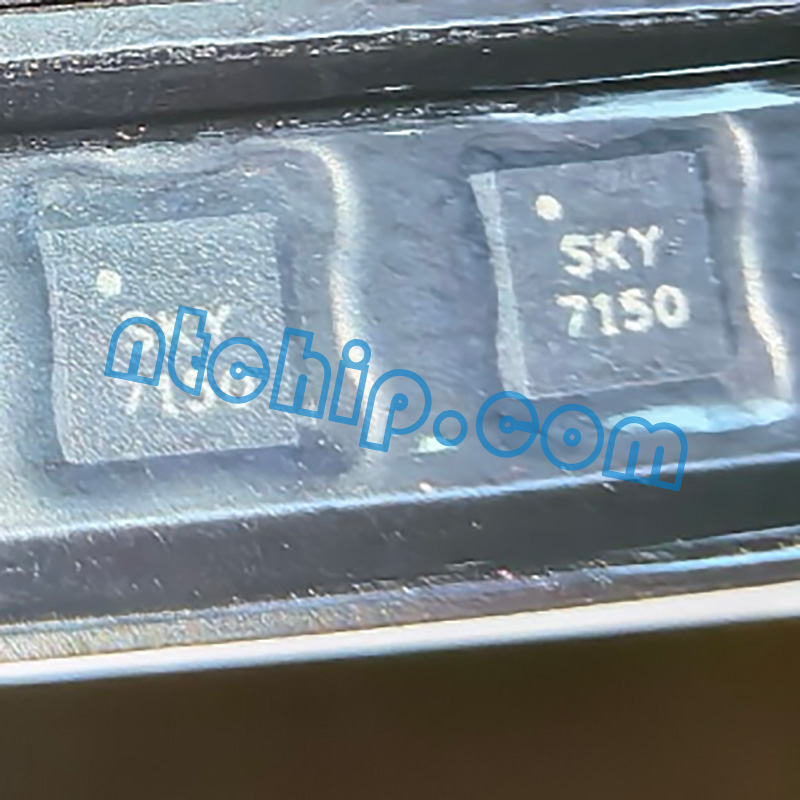

A: The SKY67150-396LF is a low-noise RF amplifier designed for wireless applications operating from 300 MHz to 2.2 GHz. It supports GSM, LTE, and W-CDMA systems and features an ultra-low noise figure of approximately 0.23 dB at 849 MHz, high linearity with a typical OIP3 of +39 dBm, adjustable supply current from 20 mA to 100 mA, and a flexible operating voltage range of 3 V to 5 V. The device also incorporates a temperature- and process-stable active bias circuit and is housed in a compact 8-pin DFN (2 mm × 2 mm) package.
Q2: What is the SKY67150-396LF used for?
A: This RF amplifier is commonly used in receiver front-end circuits, wireless infrastructure equipment, cellular base stations, repeaters, RF front-end modules, and communication systems that require low-noise signal amplification. Its combination of excellent noise performance and high linearity makes it particularly suitable for improving receiver sensitivity and maintaining signal quality in crowded RF environments.
Q3: Does the SKY67150-396LF have alternative manufacturers or part numbers?
A: Yes. Similar low-noise RF amplifiers are available from manufacturers such as Qorvo, Analog Devices, NXP Semiconductors, Broadcom, and Mini-Circuits. Alternative devices should be selected based on operating frequency range, noise figure, gain, linearity, supply voltage, current consumption, and package requirements. Suitable alternatives may include products from the Qorvo QPL series, Analog Devices HMC series, or comparable low-noise amplifier solutions from other RF component suppliers.
Q4: Is technical support available for the SKY67150-396LF?
A: Yes. Skyworks Solutions provides technical resources including datasheets, application notes, evaluation information, and design documentation to assist engineers during product development. In addition, Nantian Electronics can provide datasheet downloads, technical specifications, pin diagram information, inventory availability, and procurement support to help customers evaluate and integrate the SKY67150-396LF into their RF designs.
