Q1: What are the main features of B82734R2322B030?

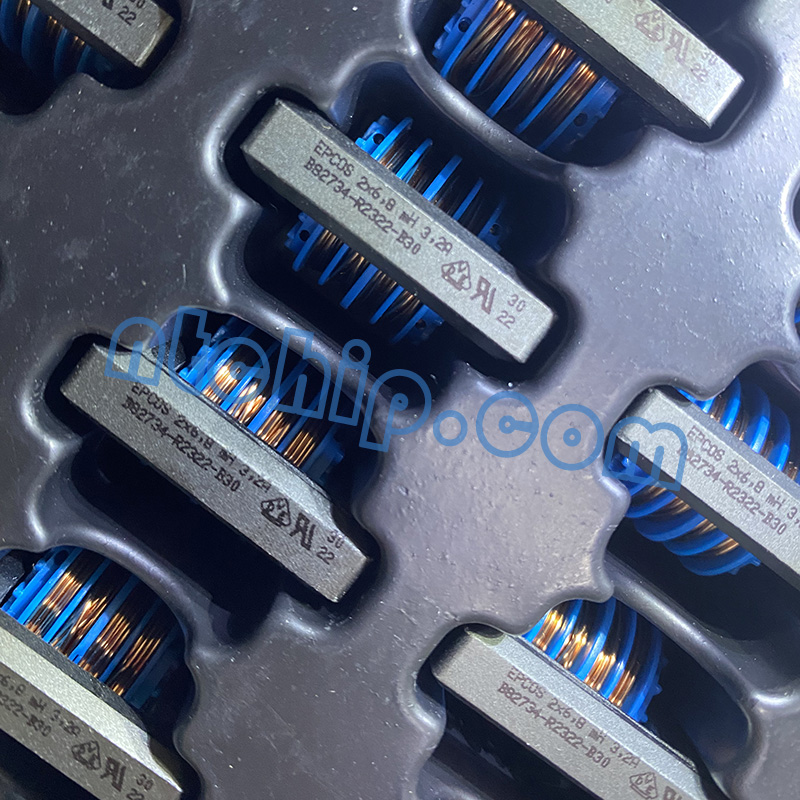

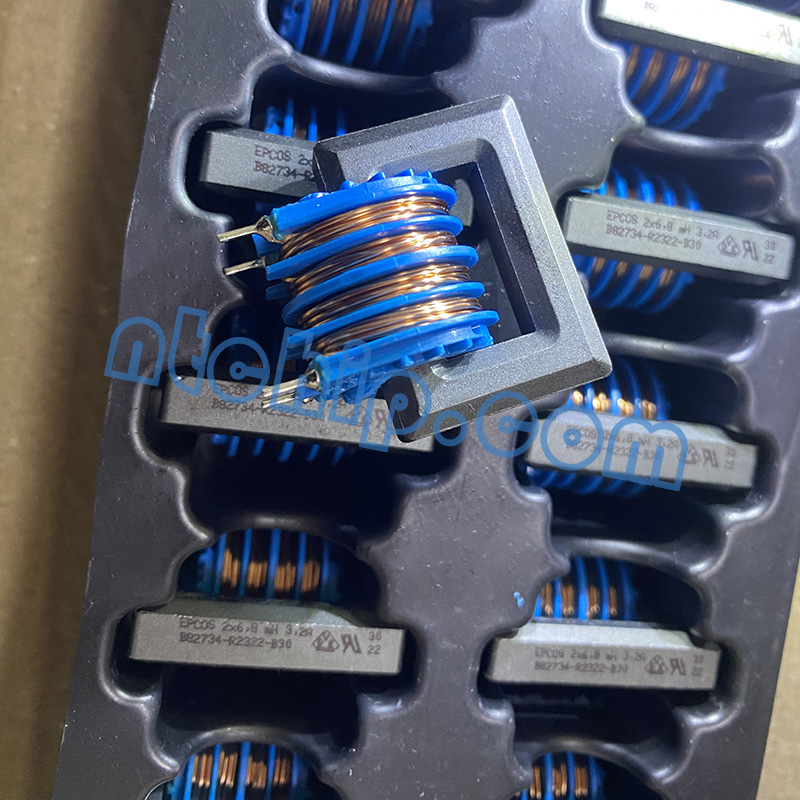

A1: B82734R2322B030 is a two line common mode choke for power line EMI suppression. It provides 6.8 mH inductance, a 3.2 A rated current, and typically 85 mOhm DC resistance. It has a 250 V AC rated voltage, through hole mounting, and an operating temperature range of -40°C to +125°C. The device uses a current compensated D core construction and is designed for reliable common mode noise filtering.
Q2: What is B82734R2322B030 used for?
A2: B82734R2322B030 is mainly used to reduce common mode electromagnetic interference on power lines. It can be applied in power supplies, industrial equipment, consumer electronics, and other electronic systems where conducted noise needs to be controlled. Its 3.2 A current rating and 250 V AC rating make it suitable for a range of AC power input and filtering applications.
Q3: Does B82734R2322B030 have any alternative manufacturer and part number?
A3: There is no guaranteed drop-in replacement without checking the complete circuit and PCB requirements. Similar common mode chokes are available from manufacturers such as Triad Magnetics. For example, CMT908-H3 offers 8 mH inductance and a 3.2 A current rating, but its electrical characteristics, dimensions, temperature rating, and mounting details differ from B82734R2322B030. Any replacement should therefore be evaluated for inductance, current rating, resistance, voltage rating, mechanical dimensions, pin spacing, and EMI performance before use.
Q4: Is technical support available for B82734R2322B030?
A4: Yes. Nantian Electronics provides technical support for B82734R2322B030, including assistance with product parameters, datasheet and pin information, replacement evaluation, application requirements, and purchasing inquiries. Customers can contact Nantian Electronics for component selection and technical assistance.
