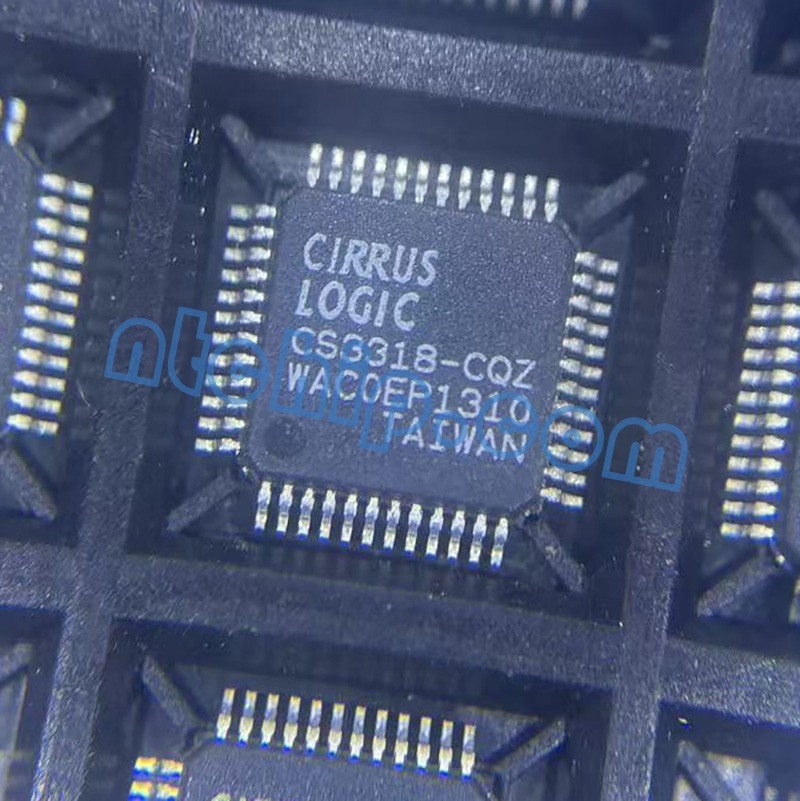

Q1: What are the key features of the Cirrus Logic Inc. CS3318-CQZ?
A: The CS3318-CQZ is a high-performance 8-channel analog volume control IC designed for professional and high-end audio systems. It provides eight independently controllable audio channels along with three configurable master volume and mute controls. The device offers a wide volume adjustment range from -96 dB to +22 dB in precise 0.25 dB steps, delivering excellent control accuracy. It also features outstanding audio performance with a typical dynamic range of 127 dB, THD+N as low as -112 dB, and 120 dB channel-to-channel isolation. Zero-crossing detection with a programmable timeout enables smooth, click-free volume transitions, while both I²C and SPI interfaces provide flexible digital control.
Q2: What is the CS3318-CQZ used for?
A: The CS3318-CQZ is widely used in professional audio mixers, AV receivers, digital mixing consoles, multi-channel amplifiers, broadcast equipment, studio recording systems, home theater receivers, conference audio systems, and premium consumer audio products. Its high audio fidelity and precise multi-channel volume control make it ideal for applications requiring independent adjustment of multiple audio channels while maintaining excellent sound quality.
Q3: Does the CS3318-CQZ have alternative manufacturers and part numbers?
A: Direct drop-in replacements are limited because the CS3318-CQZ features a unique combination of 8-channel analog volume control, high dynamic range, precise gain adjustment, and digital control architecture. However, comparable audio volume control and audio processor solutions are available from manufacturers such as Texas Instruments, Analog Devices, Renesas Electronics, and Nisshinbo Micro Devices. Suitable alternatives include the Texas Instruments PGA4311, Analog Devices SSM6515 (for specific audio applications), Renesas R2A15218FP, and Nisshinbo NJW1195A. Before selecting an alternative, designers should compare the number of channels, gain range, distortion performance, communication interface, package type, and power supply requirements to ensure compatibility with the target system.
Q4: Is technical support available for the CS3318-CQZ?
A: Yes. Cirrus Logic Inc. provides comprehensive technical support through official datasheets, application notes, hardware design guidelines, and product documentation. As a professional distributor, Nantian Electronics also provides product datasheets (PDF), pin diagrams, inventory information, quotation services, and procurement assistance. Customers are welcome to contact the sales team for technical inquiries, product selection guidance, and ordering support.
