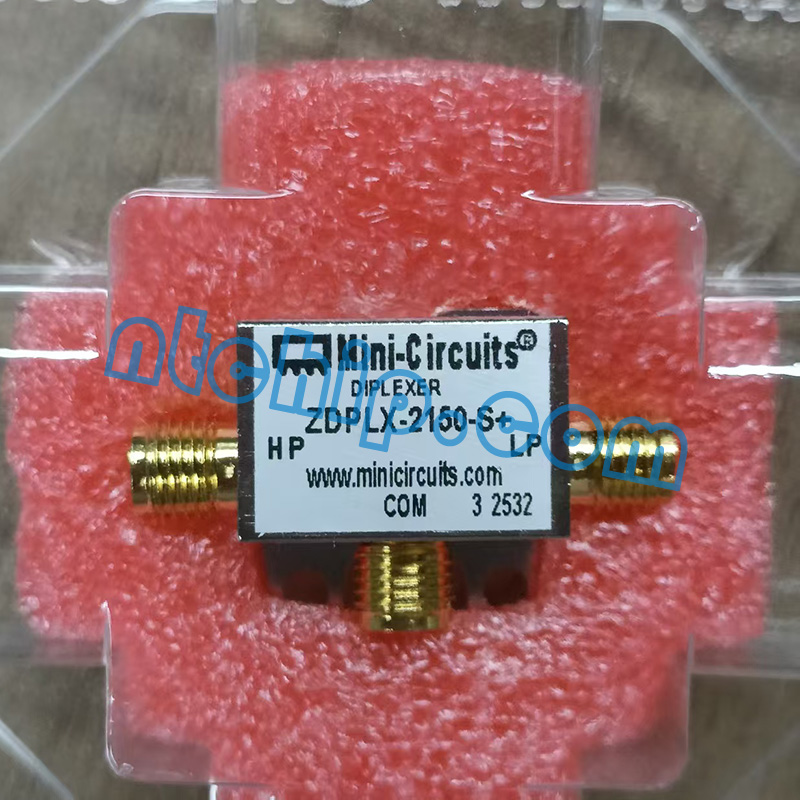

Q1: What are the main features of the Mini-Circuits ZDPLX-2150-S+?
A: The ZDPLX-2150-S+ is an RF diplexer designed to separate or combine signals in two different frequency ranges. It supports a low-frequency band from DC (0 Hz) to 10 MHz and a high-frequency band from 50 MHz to 2.15 GHz. The device offers good isolation between channels, low insertion loss, and reliable RF performance, making it suitable for a variety of communication and signal-routing applications.
Q2: What is the ZDPLX-2150-S+ used for?
A: This RF diplexer is commonly used in wireless communication systems, RF test equipment, antenna-sharing networks, broadband infrastructure, and signal distribution systems. It allows low-frequency control or data signals and high-frequency RF signals to share a common path while minimizing interference between the two frequency bands.
Q3: Does the ZDPLX-2150-S+ have alternative manufacturers or part numbers?
A: Yes. Similar RF diplexers and frequency-combining components are available from manufacturers such as RF Lambda, Pasternack, Knowles Dielectric Labs (KDL), and MACOM. Alternative part numbers should be selected according to operating frequency ranges, insertion loss, isolation requirements, power handling capability, and mechanical package specifications.
Q4: Is technical support available for the ZDPLX-2150-S+?
A: Yes. Technical support is available through Mini-Circuits documentation, including datasheets, application information, and design resources. In addition, Nantian Electronics can provide product specifications, datasheet downloads, procurement assistance, and general application support to help customers integrate the ZDPLX-2150-S+ into their designs.
