Q1: What are the main features of the ADM202EARNZ-REEL7?

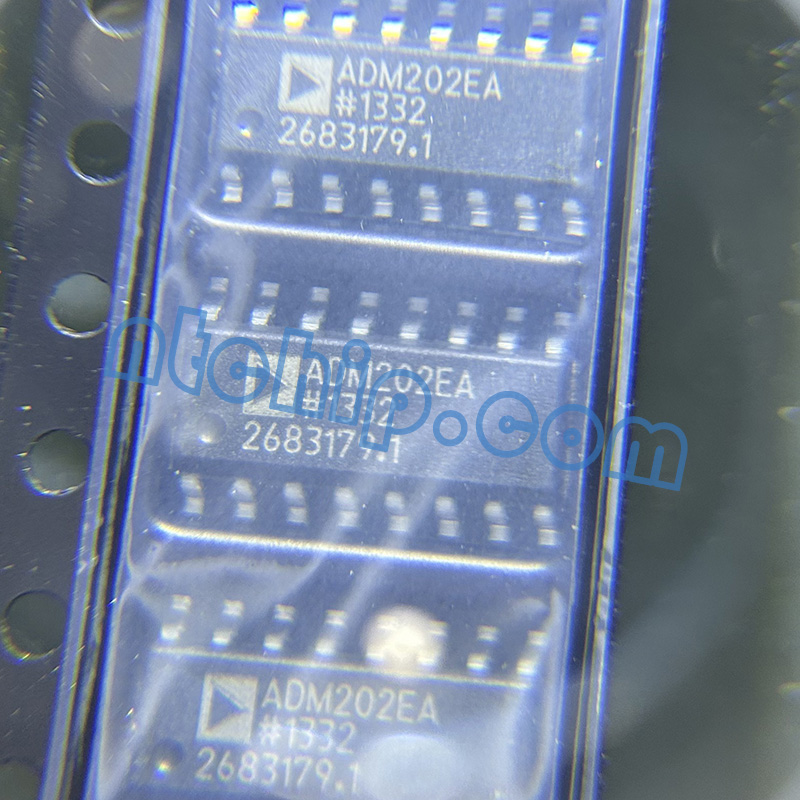

The ADM202EARNZ-REEL7 is a full RS-232 transceiver that integrates two drivers and two receivers in a compact 16-pin SOIC package. It supports reliable serial communication with guaranteed data rates up to 230 kbits/s. The device includes strong ESD protection with up to ±15 kV human body model protection and compliance with IEC1000-4-2 standards for contact and air-gap discharge immunity. It also provides low EMI emissions and good EFT transient immunity, making it suitable for use in electrically noisy environments.
Q2: What applications is it commonly used for?
This transceiver is commonly used in general-purpose RS-232 communication links, portable instruments, industrial controllers, PDAs, embedded systems, and communication interfaces. It is suitable for applications that require stable serial data transmission between microcontrollers, computers, and peripheral equipment.
Q3: Are there alternative manufacturers or part numbers?
Yes. Similar RS-232 transceivers are available from manufacturers such as Texas Instruments, Maxim Integrated, Renesas Electronics, and ON Semiconductor. Comparable alternatives include MAX202E, MAX232 series devices, TI TRS202, and LT1181A-compatible transceivers. Designers should compare supply voltage, ESD capability, package type, and communication speed before selecting an alternative component.
Q4: Is technical support available for this part?
Yes. Analog Devices provides technical resources including datasheets, application notes, and design documentation for the ADM202EARNZ-REEL7. In addition, suppliers such as Nantian Electronics can provide technical support, datasheet downloads, product consultation, and assistance with system integration and replacement selection.
