What are the key features of the SKM150GAR12T4?

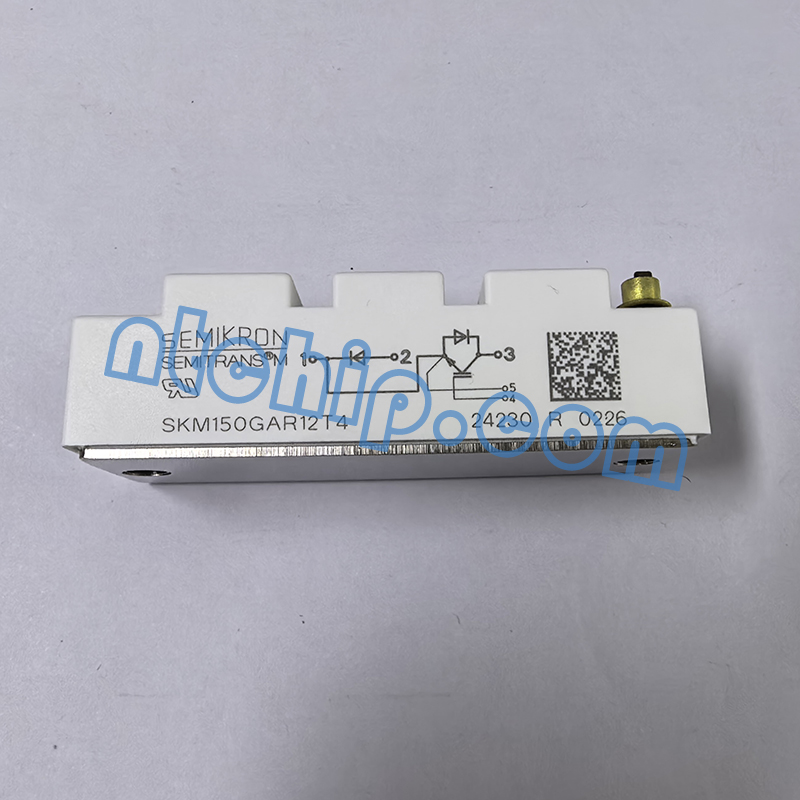

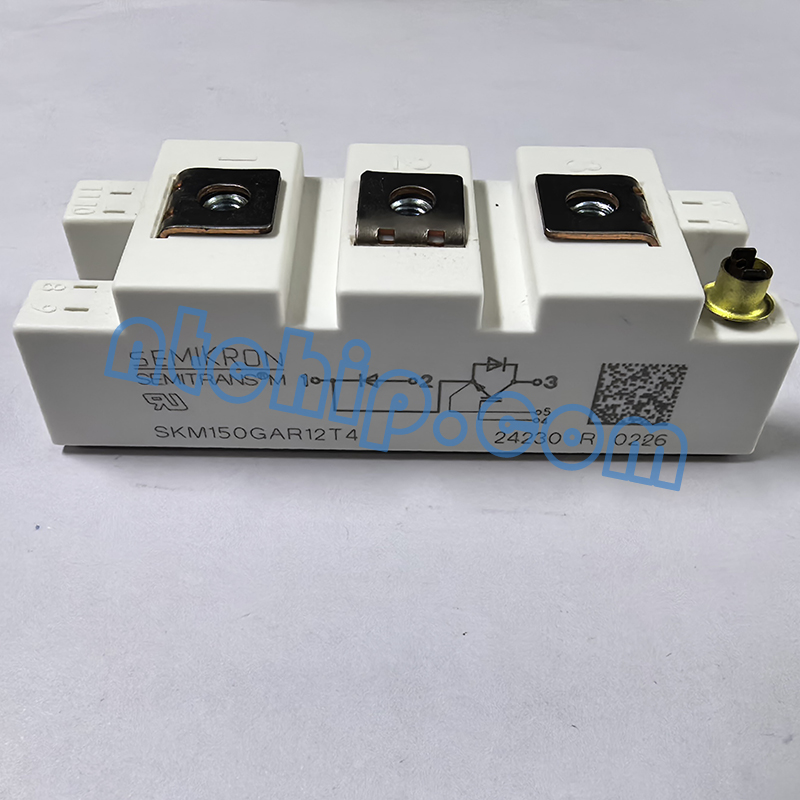

The SKM150GAR12T4 is a high-power insulated gate bipolar transistor (IGBT) module designed for efficient switching in demanding power electronics systems. It is rated for 150 A continuous current and 1200 V blocking voltage, making it suitable for medium- and high-power applications. The module features a low VCE(sat) with a positive temperature coefficient for better current sharing and thermal stability, a high short-circuit withstand capability that self-limits up to about six times the nominal current, and a soft switching CAL4 diode to reduce switching losses and stress on the device during operation.
What is it used for?
This IGBT module is widely used in industrial motor drives, renewable energy inverters (such as for solar and wind systems), uninterruptible power supplies (UPS), traction and electric vehicle power converters, and other applications where high current and high voltage switching reliability is essential. Its rugged design and integrated diode support efficient, high-speed switching in harsh environments.
Does it have alternative parts?
Yes. Similar IGBT chopper modules with comparable current and voltage ratings are available from SEMIKRON (e.g., other modules in the SKM or SKiM series) and from other manufacturers such as Infineon (EconoDUAL™ / EasyPACK IGBT modules), Mitsubishi Electric, Fuji Electric, and Toshiba. When selecting an alternative, make sure it matches key parameters like current rating, voltage rating, package form, switching speed, and thermal characteristics to ensure compatibility with your design.
