Introduction to the SKKT330/16E SCR Module by SEMIKRON
The SKKT330/16E is a robust SCR (Silicon Controlled Rectifier) module designed by SEMIKRON for high-power applications. This module is specifically engineered to control and manage high current and voltage levels efficiently, making it an indispensable component in industrial and power conversion systems. It features a series-connected SCR structure that allows for handling peak repetitive off-state voltages of up to 1.6kV and an impressive average forward and on-state current of 330A. With its capability to manage peak non-repetitive surge currents up to 9.5kA, the SKKT330/16E is tailored for environments requiring reliable high-power switching and control.

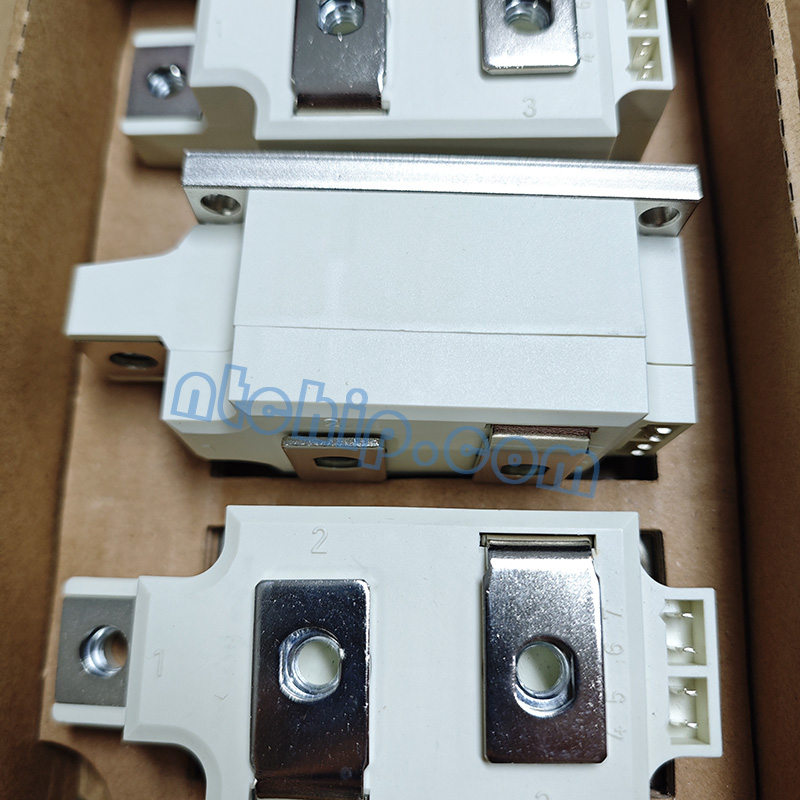

Semikron is the manufacturer of the SKKT33016E, which is available in stock at Nantian. The reference price for SKKT33016E can be found by referring to Semikron or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the SKKT33016E datasheet PDF and pin diagram description that are available for download.
The SKKT33016E has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to SKKT33016E could be downloaded from Nantian's platform.
Core Features
SCR Module Type: Series Connected - SCRs, optimized for high-efficiency power control.
Peak Repetitive Off-State Voltage: 1.6kV, enabling it to withstand high voltages without failure.
Average Forward Current: 330A, indicating its capacity to handle significant continuous currents.
On State RMS Current: 510A, showcasing its robustness in high-power applications.
Peak Non-Repetitive Surge Current: 9.5kA, demonstrating its ability to manage extreme surge conditions.
Gate Trigger Current Max: 200mA, providing the threshold current required for activation.
Gate Trigger Voltage Max: 3V, specifying the voltage needed to trigger the SCR.
Technical Specifications
Holding Current Max: 500mA, denoting the current below which the device turns off, ensuring stability.
Repetitive Peak Reverse Voltage: 1.6kV, confirming its capacity to handle reverse voltages without damage.
Operating Temperature Max: Indicating the maximum ambient temperature the module can operate reliably.
Applications and Integration
The SKKT330/16E SCR module is ideally suited for applications that demand robust and efficient control over high power levels. Its capacity for handling high currents and voltages, along with its surge current capabilities, make it an essential component in power electronics, including motor drives, inverters, and power conditioning systems. The module's series-connected SCR structure enhances its reliability and performance in harsh industrial environments. Additionally, the specifications for gate trigger current and voltage facilitate seamless integration into existing control circuits, making it a versatile solution for a wide range of high-power applications.
