Introduction to T1960N22TOF
The T1960N22TOF from Infineon Technologies is a high-power Silicon Controlled Rectifier (SCR) designed for exceptional performance in demanding electrical environments. This device is part of the T1960N product series, which is renowned for its high voltage and current handling capabilities. Encased in a TO-200AE package, it is specifically engineered for applications that require robust, reliable control of power. With its impressive specifications, the T1960N22TOF is an ideal choice for heavy-duty industrial applications, providing efficient and stable performance.

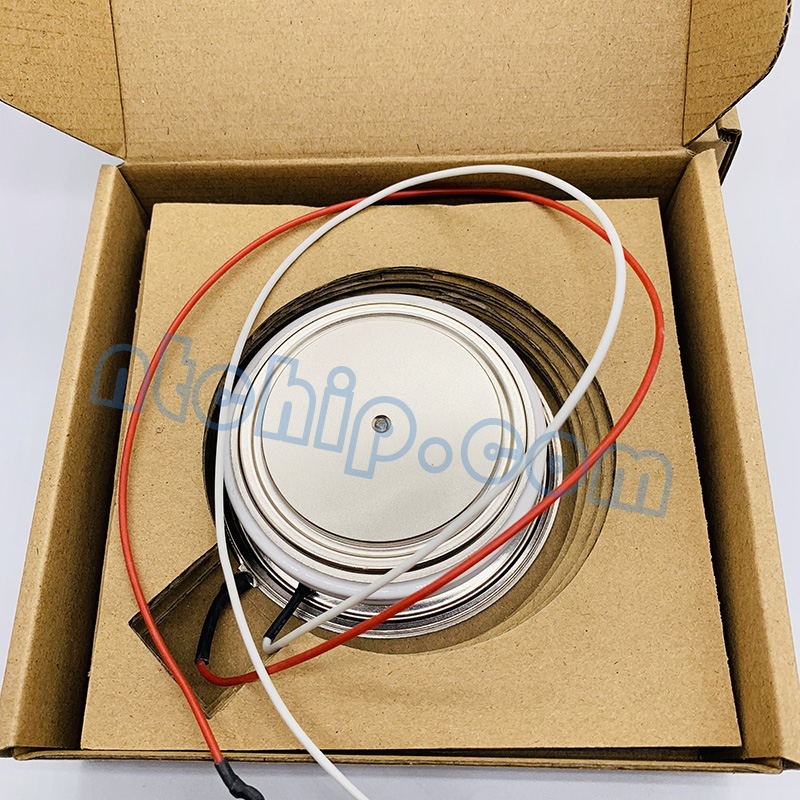

T1960N22TOF
Key Features
High Voltage Capability: The device can withstand voltages up to 2,200 V, making it suitable for high-voltage applications.
High Current Handling: It offers an RMS current rating of 4,100 A and an average current rating of 1,960 A, allowing it to manage significant power loads.
Exceptional Surge Current Capacity: With a peak surge current (Itsm) capacity of 35,000 A, it can handle high current spikes, ensuring reliability under extreme conditions.
Fast Switching Performance: The device features a dv/dt of 1,000 V/μs and a di/dt of 200 A/μs, indicating its ability to switch on and off rapidly.
Low Triggering Current: A gate trigger current (Igt) of 300 mA and a gate trigger voltage (Vgt) of 2.5 V highlight its sensitivity and efficiency in triggering operations.
Applications
The T1960N22TOF is designed for a variety of high-power applications. Its capabilities make it particularly well-suited for power supplies, industrial motor drives, and renewable energy systems, including solar power inverters and wind turbines. Its robust design also makes it an excellent choice for electric traction and heavy machinery control, where high reliability and performance are critical.
Why Choose the T1960N22TOF?
Choosing the T1960N22TOF from Infineon Technologies for your application brings numerous benefits. Its high voltage and current handling capacities ensure that it can operate in rigorous conditions without compromise. The device's fast switching capabilities and low triggering requirements offer enhanced performance and efficiency, making it an ideal choice for advanced power control applications. Furthermore, Infineon's reputation for quality and reliability, combined with comprehensive support and documentation, ensures a smooth integration process and long-term operational stability. The T1960N22TOF stands out as a superior component for managing power in high-demand environments.

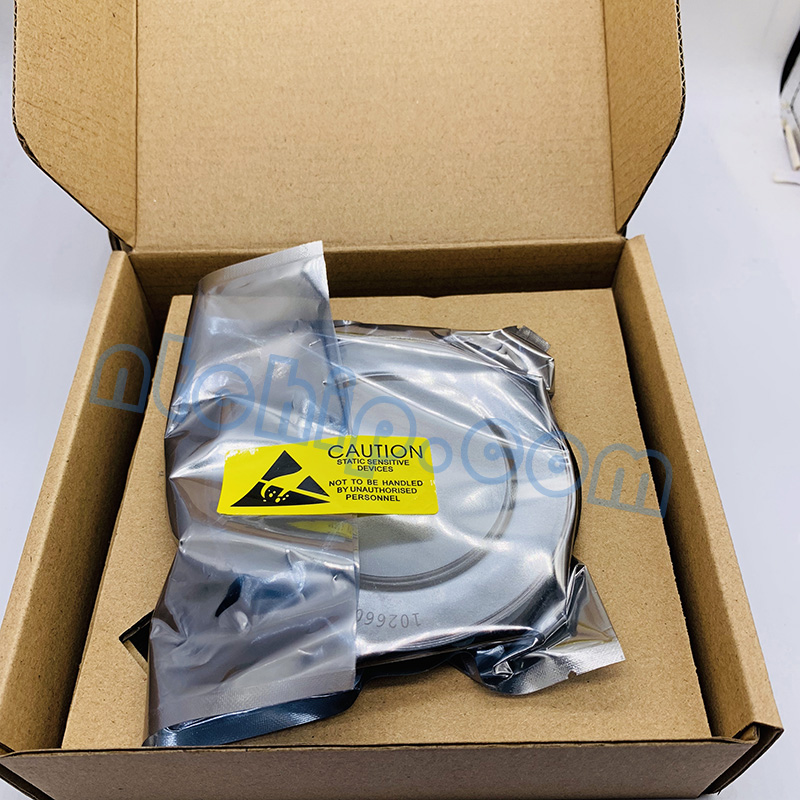

As a professional Infineon Technologies distributor, Nantian Electronic has a large number of T1960N22TOF in stock. We also provide T1960N22TOF parameters, T1960N22TOF Datasheet PDF and pin diagram instructions for download.
