Fairchild Semiconductor NZT6714

Manufacturer Part Number :	NZT6714
Manufacturer :	Fairchild Semiconductor
Description :	TRANS NPN 30V 2A SOT-223
Package :	SOT-223
Datasheet :	NZT6714.PDF
EDA / CAD Models :	NZT6714 by SnapEDA
Stock Condition :	In Stock 40000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Fairchild Semiconductor NZT6714

In Stock: 40000 Qty:

RFQ Now Add to RFQ list

The Fairchild Semiconductor NZT6714 is a high-performance NPN bipolar junction transistor (BJT) designed for applications requiring robust current handling and compact size. With a maximum voltage rating of 30V, a current capacity of up to 2A, and a power dissipation of 1W, this transistor is well-suited for use in switching, amplification, and general-purpose circuits. Its small, surface-mount SOT-223-4 package ensures ease of integration into compact designs while maintaining reliable performance.

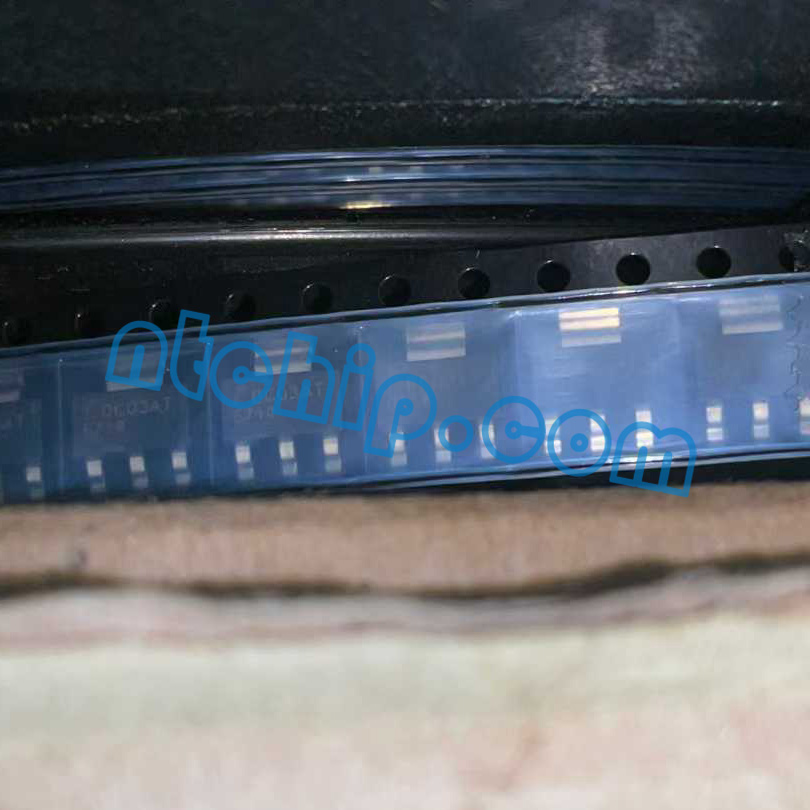

Fairchild Semiconductor NZT6714 electronic chip

The NZT6714 is an excellent choice for designers looking to achieve high efficiency and reliable operation in modern electronic applications. Its combination of high current capability, low power consumption, and a compact footprint makes it ideal for use in power management, signal amplification, and other electronic systems.

Fairchild Semiconductor NZT6714 package label

Nantian Electronics carries a comprehensive stock of NZT6714 transistors and provides technical documentation and support, ensuring an easy integration process for your projects.

Type	Description
Category	Discrete Semiconductor Transistors(BJT) - Single
Mfr	Fairchild Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2 A
Voltage - Collector Emitter Breakdown (Max)	30 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 100mA, 1V
Power - Max	1 W
Frequency - Transition	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
