Q1: What are the main features of L6205PD013TR?

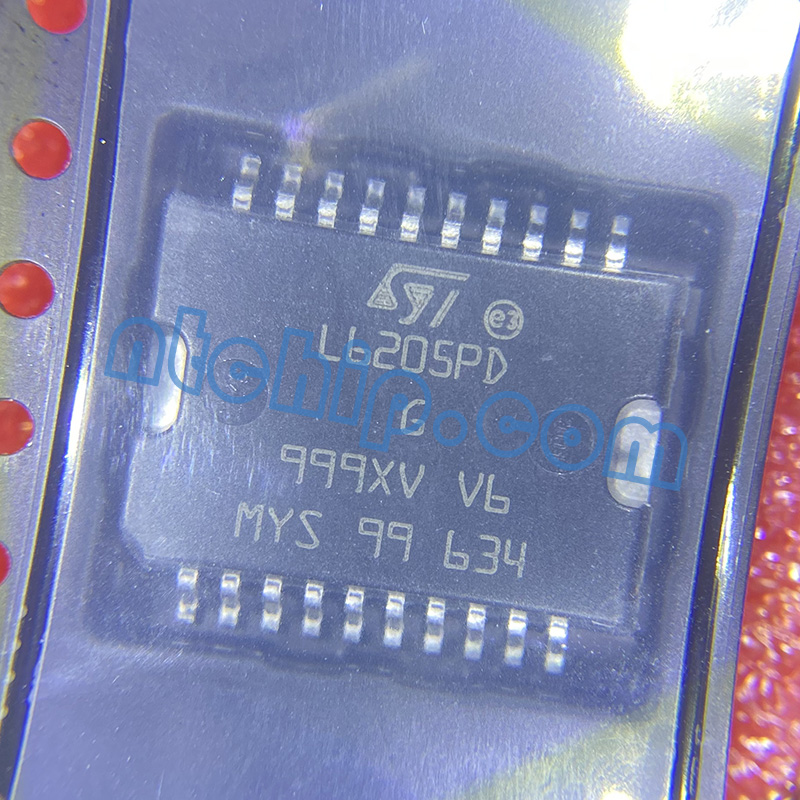

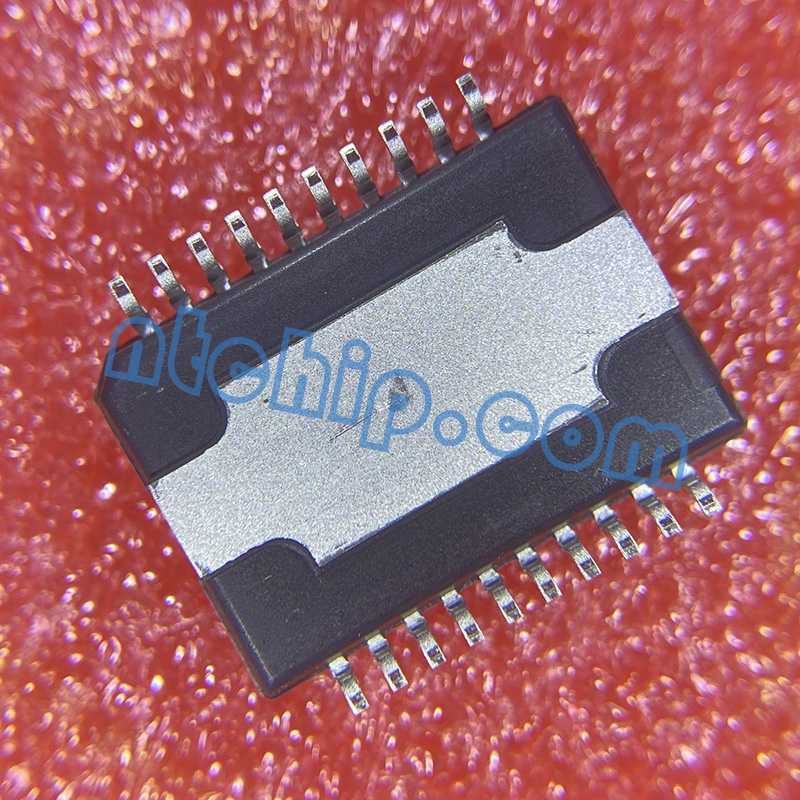

A1: L6205PD013TR is a dual full bridge motor driver manufactured using BiCDMOS technology. It operates with a supply voltage from 8 V to 52 V and supports an output peak current of 5.6 A, with a DC current rating of 2.8 A. Its main features include integrated fast freewheeling diodes, overcurrent protection, cross conduction protection, undervoltage lockout, thermal shutdown, and parallel operation capability. It supports switching frequencies up to 100 kHz and comes in a PowerSO-20 surface mount package.
Q2: What is L6205PD013TR used for?
A2: L6205PD013TR is designed to control bipolar stepper motors and brushed DC motors. It is suitable for industrial automation equipment, robotics, positioning systems, printers, office equipment, and other applications requiring reliable motor control. Its integrated power stages and protection functions help simplify circuit design and improve system reliability.
Q3: Does L6205PD013TR have any alternative manufacturers and part numbers?
A3: A closely related alternative is STMicroelectronics L6205PD, which belongs to the same product family and uses the PowerSO-20 package. Another option is STMicroelectronics L6208D013TR, which is designed for stepper motor control but uses a different package and has different control functions. These parts are not guaranteed drop-in replacements. Before selecting an alternative, verify the pin configuration, package dimensions, voltage and current ratings, control interface, and motor compatibility.
Q4: Is technical support available for L6205PD013TR?
A4: Yes. Nantian Electronics provides technical support for L6205PD013TR, including assistance with product specifications, datasheet information, pin configuration, application requirements, and replacement evaluation. Customers can contact Nantian Electronics for component selection guidance, pricing, and purchasing inquiries.
