Infineon Technologies S25FL256SAGNFM000

Manufacturer Part Number :	S25FL256SAGNFM000
Manufacturer :	Infineon Technologies
Description :	IC FLASH 256MBIT SPI/QUAD
Package :	8-WSON
Datasheet :	S25FL256SAGNFM000.PDF
EDA / CAD Models :	S25FL256SAGNFM000 by SnapEDA
Stock Condition :	In Stock 4567, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Infineon Technologies S25FL256SAGNFM000

In Stock: 4567 Qty:

RFQ Now Add to RFQ list

The Infineon Technologies S25FL256SAGNFM000 is a high-performance 256Mbit NOR Flash memory IC designed for fast and reliable non-volatile data storage. Built with SLC NOR Flash technology, this device supports SPI and Quad I/O interfaces with operating frequencies up to 133 MHz, enabling high-speed data transfer and quick system boot performance. Its low-latency access time and dependable memory architecture make it suitable for applications requiring stable code storage and efficient data retrieval.

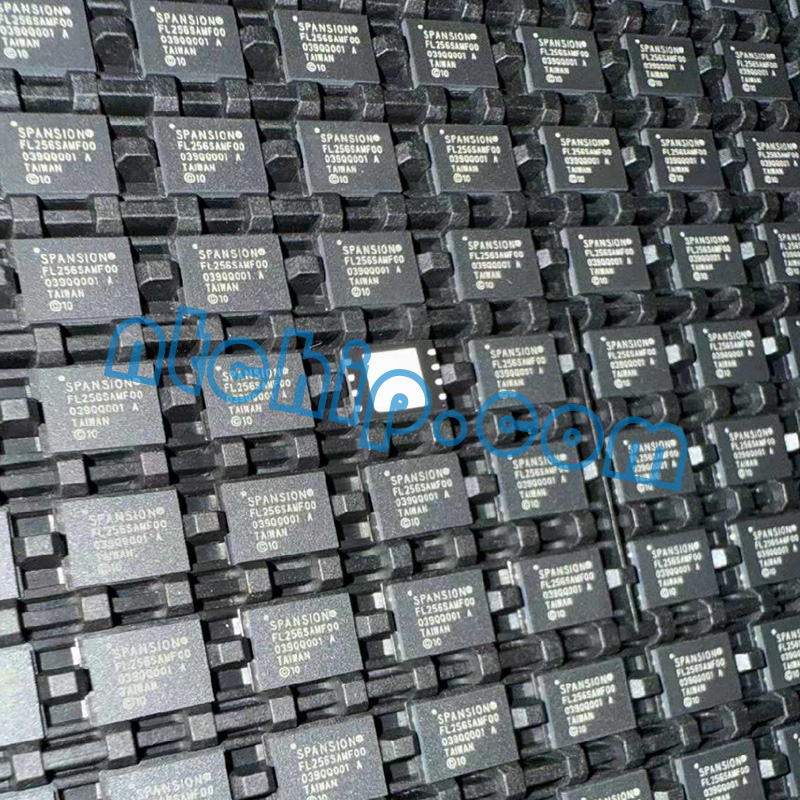

Infineon Technologies S25FL256SAGNFM000 memory IC

Housed in a compact 8-WSON (6x8 mm) package, the S25FL256SAGNFM000 is widely used in embedded systems, industrial equipment, automotive electronics, networking devices, and consumer products. It is ideal for storing firmware, boot code, configuration data, and application programs in systems that demand reliable long-term data retention and high-speed memory access.

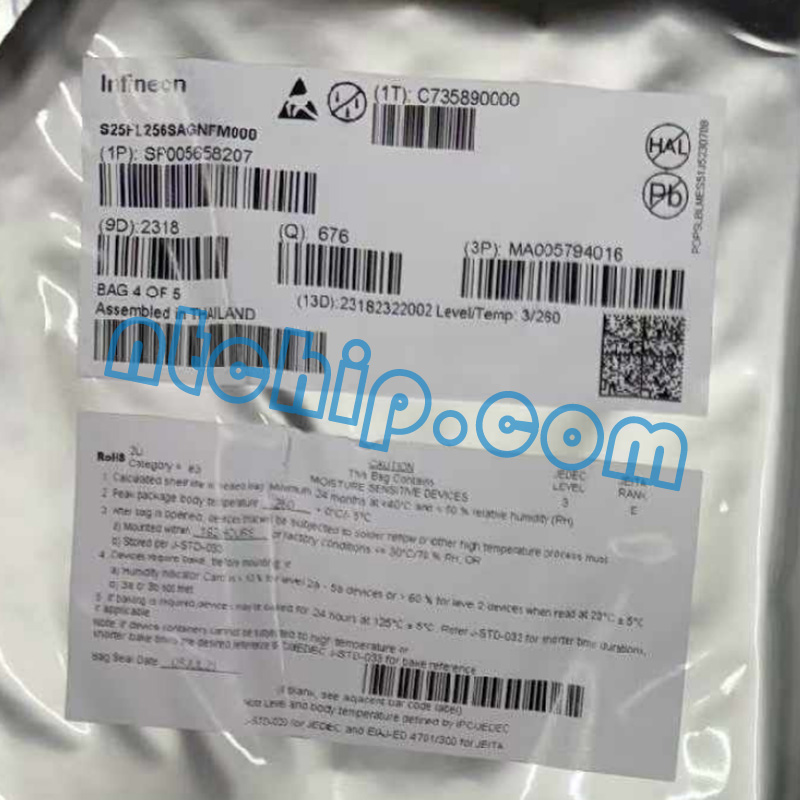

Infineon Technologies S25FL256SAGNFM000 original package label

As a professional Infineon Technologies supplier and distributor, Nantian Electronics maintains stock of S25FL256SAGNFM000 and provides datasheets, pin diagrams, and technical support for customer development and purchasing requirements.

Category:Integrated Circuits (ICs) Memory	Memory Interface:SPI - Quad I/O
Mfr:Infineon Technologies	Clock Frequency:133 MHz
Series:FL-S	Write Cycle Time - Word, Page:750µs
Packaging:Tray	Access Time:6.5 ns
Part Status:Active	Voltage - Supply:2.7V ~ 3.6V
Ntchip Programmable:Not Verified	Operating Temperature:-40°C ~ 125°C (TA)
Memory Type:Non-Volatile	Mounting Type:Surface Mount
Memory Format:FLASH	Package / Case:8-WDFN Exposed Pad
Technology:FLASH - NOR (SLC)	Supplier Device Package:8-WSON (6x8)
Memory Size:256Mbit	Base Product Number:S25FL256
Memory Organization:32M x 8

What are the main features of the S25FL256SAGNFM000?

The S25FL256SAGNFM000 is a 256Mbit NOR Flash memory IC with SPI and Quad I/O support. It offers high-speed operation up to 133 MHz, fast data access, reliable SLC architecture, and compact 8-WSON packaging for embedded applications.

What is the S25FL256SAGNFM000 used for?

It is commonly used in embedded systems, industrial equipment, automotive electronics, networking devices, and consumer products for firmware storage, boot code, configuration data, and program memory.

Does the S25FL256SAGNFM000 have alternative manufacturer and part numbers?

Yes. Similar NOR Flash memory products are available from Winbond, Micron, Macronix, and ISSI. Alternative parts should be selected based on memory density, interface type, speed, voltage, and package compatibility.

Is technical support available for this part?

Yes. Nantian Electronics provides technical support, including datasheets, pin diagrams, parameter information, replacement recommendations, and purchasing assistance for the S25FL256SAGNFM000.
