MPS (Monolithic Power Systems) MP4560DN-LF-Z

Manufacturer Part Number :	MP4560DN-LF-Z
Manufacturer :	MPS (Monolithic Power Systems)
Description :	IC REG BUCK ADJ 2A
Package :	8-SOIC
Datasheet :	MP4560DN-LF-Z.PDF
EDA / CAD Models :	MP4560DN-LF-Z by SnapEDA
Base Product Number :	MP4560
Stock Condition :	In Stock 179950, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

MPS (Monolithic Power Systems) MP4560DN-LF-Z

In Stock: 179950 Qty:

RFQ Now Add to RFQ list

The MPS (Monolithic Power Systems) MP4560DN-LF-Z is a high-efficiency buck switching regulator designed for reliable DC-DC power conversion in a wide range of electronic applications. Supporting an input voltage range from 3.8V to 55V, this regulator delivers an adjustable output voltage from 0.8V to 52V with output current capability up to 2A. Its integrated 250mΩ internal power MOSFET and programmable switching frequency up to 2MHz help optimize efficiency, reduce external component size, and simplify circuit design.

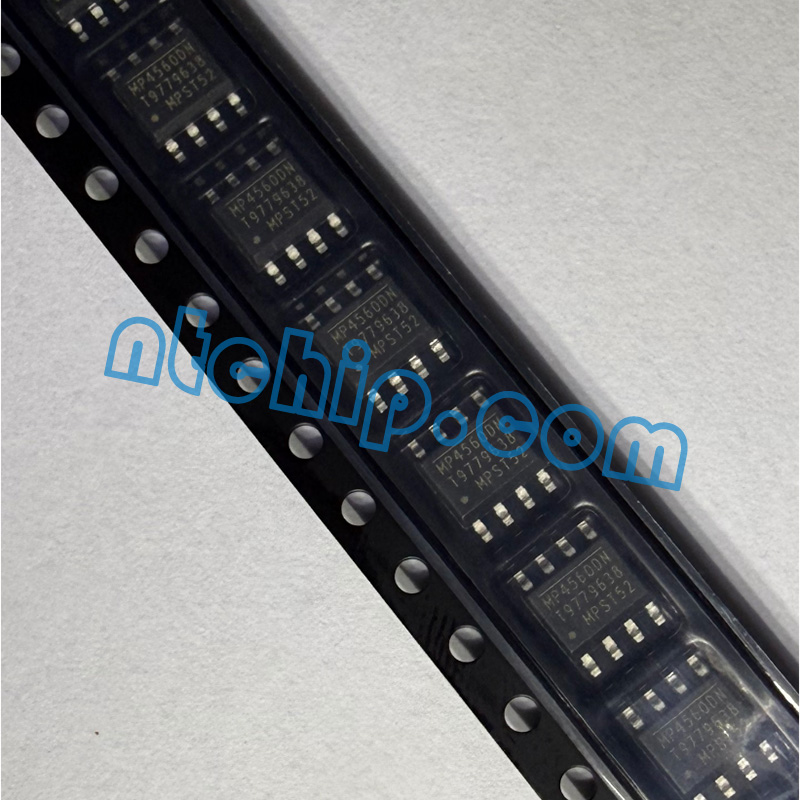

MPS (Monolithic Power Systems) MP4560DN-LF-Z semiconductor chip

The MP4560DN-LF-Z is well suited for industrial equipment, automotive electronics, networking devices, consumer electronics, and embedded systems that require stable and efficient power management. With features such as low 140μA quiescent current, internal soft-start, ceramic capacitor stability, and efficiency up to 95%, the device provides dependable performance while minimizing power loss. Housed in an exposed-pad SOIC-8 package, it also offers effective thermal performance for compact designs.

MPS (Monolithic Power Systems) MP4560DN-LF-Z original reel label

As a professional MPS supplier and distributor, Nantian Electronics maintains stock of MP4560DN-LF-Z and provides datasheets, pin diagrams, and technical support for customer development and purchasing requirements.

Category:Integrated Circuits (ICs) PMIC - Voltage Regulators - DC DC Switching Regulators	Voltage - Output (Min/Fixed):0.8V
Mfr:MPS (Monolithic Power Systems)	Voltage - Output (Max):52V
Packaging:Tape & Reel (TR)	Current - Output:2A
Part Status:Not For New Designs	Frequency - Switching:Up to 2MHz
Function:Step-Down	Synchronous Rectifier:No
Output Configuration:Positive	Operating Temperature-40°C ~ 125°C (TJ)
Topology:Buck	Mounting TypeSurface Mount
Output Type:Adjustable	Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
Number of Outputs:1	Supplier Device Package:8-SOIC-EP
Voltage - Input (Min):3.8V	Base Product Number:MP4560
Voltage - Input (Max):55V

What are the main features of the MP4560DN-LF-Z?

The MP4560DN-LF-Z is a high-efficiency buck switching regulator with a wide 3.8V to 55V input range and adjustable output from 0.8V to 52V. It supports up to 2A output current, programmable switching frequency up to 2MHz, low quiescent current, and up to 95% efficiency.

What is the MP4560DN-LF-Z used for?

It is commonly used in industrial equipment, automotive electronics, networking devices, embedded systems, and consumer electronics for stable and efficient DC-DC power conversion.

Does the MP4560DN-LF-Z have alternative parts?

Yes. Similar buck regulator ICs are available from MPS, Texas Instruments, Analog Devices, and ON Semiconductor. Alternatives should be selected based on input voltage, output current, package type, and efficiency requirements.

Is technical support available for this part?

Yes. Nantian Electronics provides technical support, including datasheets, pin diagrams, product specifications, replacement recommendations, and purchasing assistance for the MP4560DN-LF-Z.
