Winbond Electronics W25Q256FVEIG Serial Flash Memory
The W25Q256FVEIG is a 256Mb high-performance serial Flash memory from Winbond Electronics. It provides a storage solution for systems with limited space that require data and code storage, such as boot memory and firmware updates.

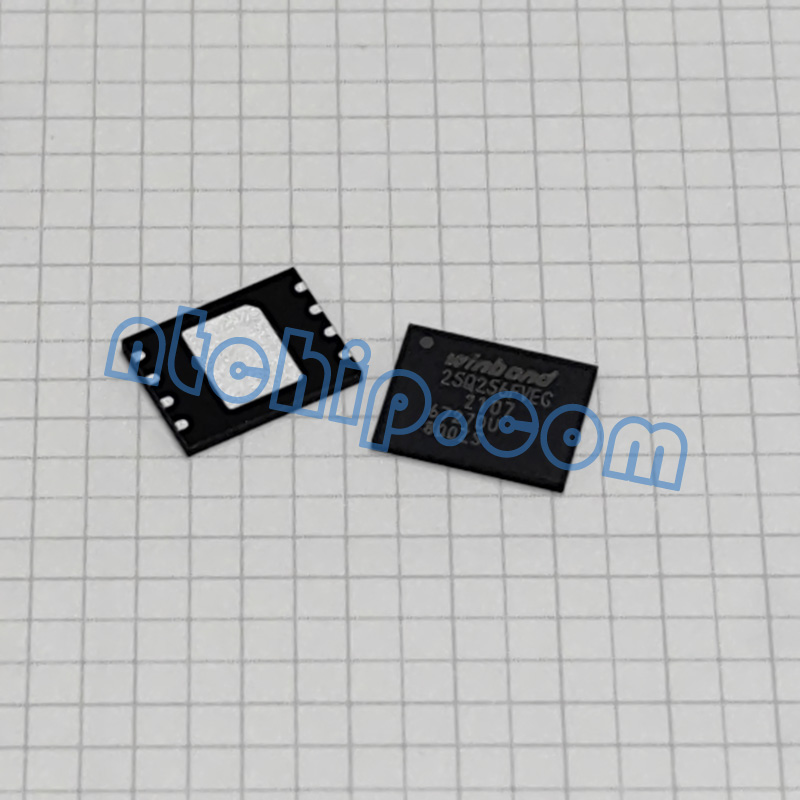

Winbond W25Q256FVEIG Physical map
Features and Benefits
256Mb of storage capacity with SPI interface for high-speed data transfer.
Supports standard SPI, Dual SPI, and Quad SPI operation.
High data transfer rate of up to 133Mbits/s in Quad SPI mode.
Programmable sector architecture with uniform 4KB sectors and 32KB/64KB blocks for flexible data management.
Advanced security features including hardware protect, software protect, and individual sector protection.
More than 20-year data retention and 100,000 program/erase cycles for reliability.
Operates across a wide temperature range from -40°C to +85°C.
Applications
Embedded systems requiring large non-volatile memory storage.
Boot memory for computers and digital devices.
Storage for firmware updates and configuration data.
Applications requiring high-speed data logging.
Advantages
Enhanced flexibility in data management with support for multiple SPI modes.
Robust security features to protect sensitive data.
Long-term reliability with high endurance and data retention capabilities.
Suitable for harsh environments due to its wide operating temperature range.
Usage Examples
Similar and Series Models
Alternative Models
Winbond Electronics is the manufacturer of the W25Q256FVEIG, which is available in stock at Nantian. The reference price for W25Q256FVEIG can be found by referring to infineon tech or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the W25Q256FVEIG datasheet PDF and pin diagram description that are available for download.

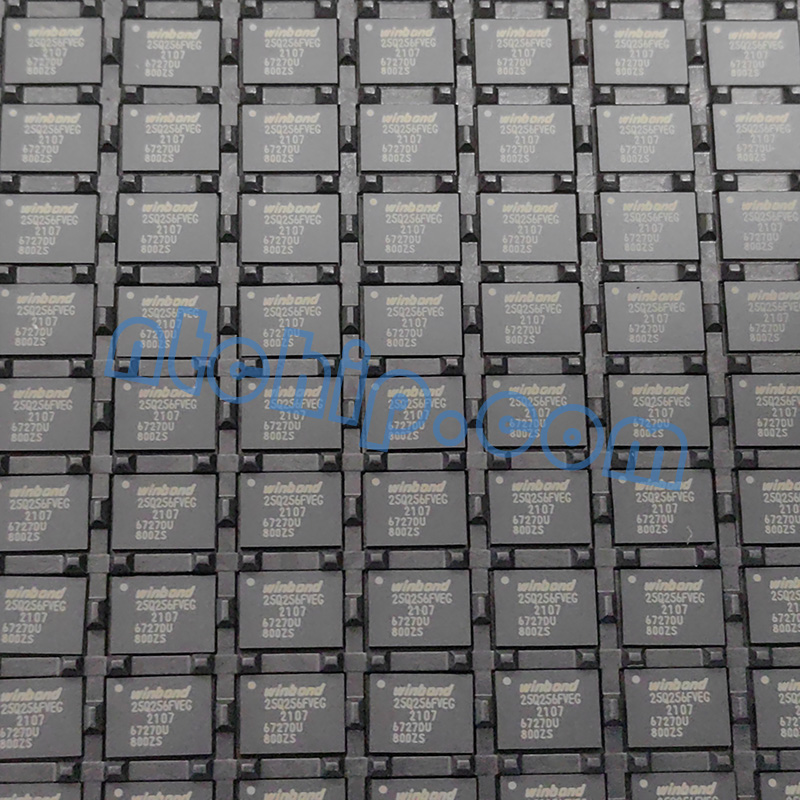

W25Q256FVEIG in stock Label
The W25Q256FVEIG has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.

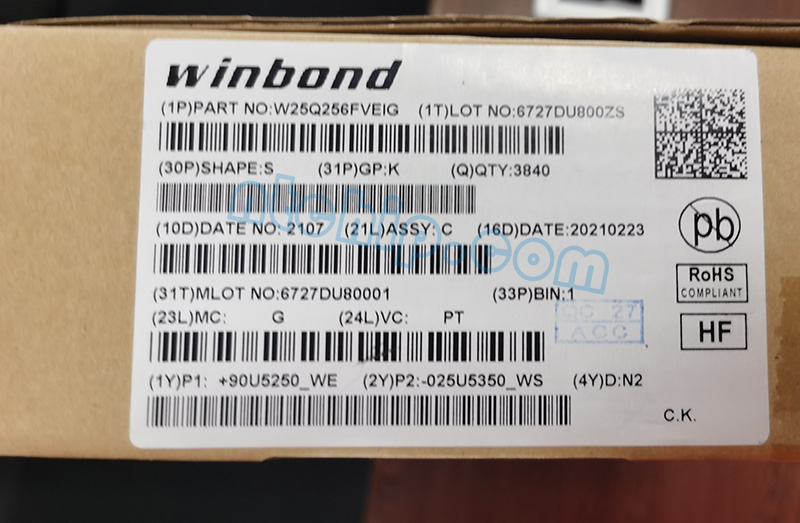

W25Q256FVEIG Original outer box label
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to W25Q256FVEIG could be downloaded from Nantian's platform.
