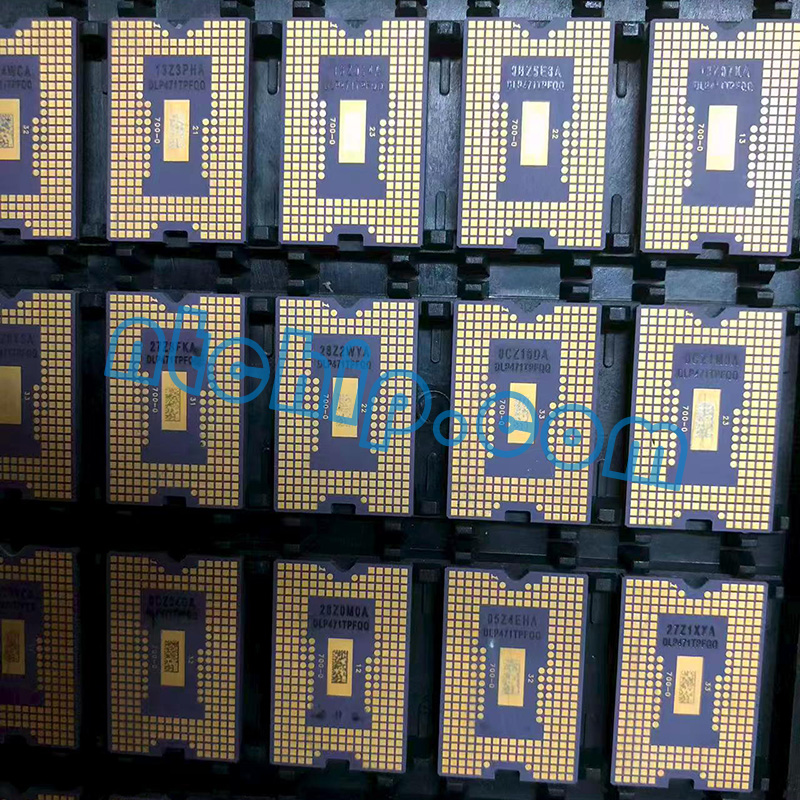

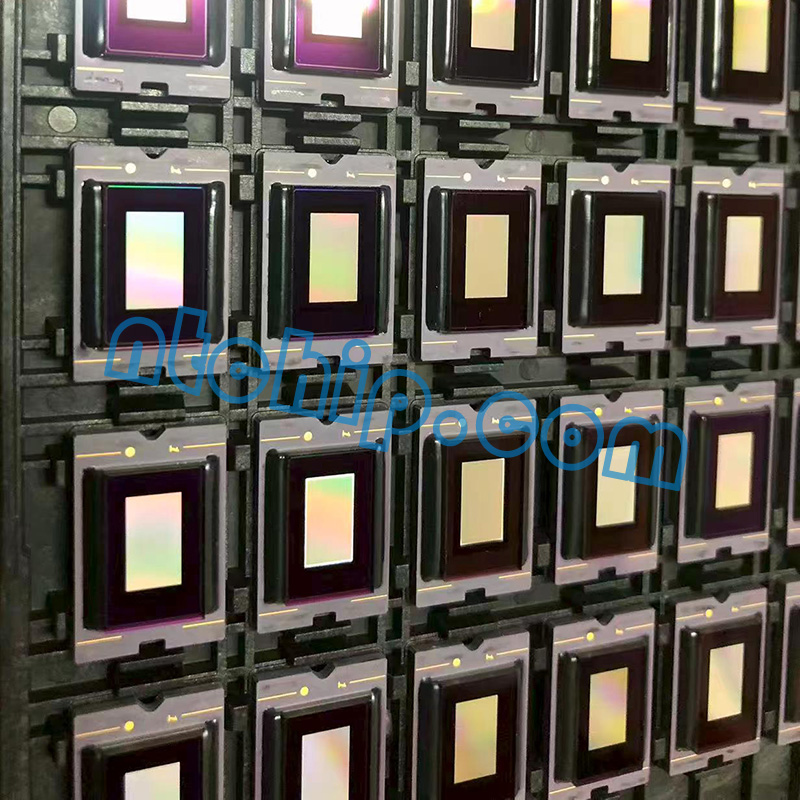

Q1: What are the main features of the Texas Instruments DLP471TPFQQ?
A: The DLP471TPFQQ is a Digital Micromirror Device (DMD) designed for high-resolution display and projection systems. It features a 0.47-inch diagonal micromirror array with a 5.4µm micromirror pitch and ±17° micromirror tilt. The device supports 4K UHD resolution of 3840 × 2160 at up to 60Hz and 1080p at up to 240Hz. It also includes a high-speed serial interface (HSSI) for input data and uses a 54-CLGA package measuring approximately 25.65mm × 16.9mm. LED operation is supported when used with the appropriate DLP display controller and power management/LED drive components.
Q2: What is the DLP471TPFQQ used for?
A: The DLP471TPFQQ is mainly used in high-resolution projection and display equipment that requires precise, fast image control. Typical applications include 4K UHD projectors, home theater projectors, portable projectors, business and education projectors, digital signage, large-screen display systems, and other optical systems requiring high-resolution images and high refresh rates. It is designed to work as part of a DLP chipset rather than as a standalone display controller.
Q3: Does the DLP471TPFQQ have an alternative manufacturer and part number?
A: Direct alternatives to the DLP471TPFQQ are limited because DMD technology and its associated optical and control interfaces are highly specialized. Texas Instruments DLP devices such as the DLP471TP and other DLP47x-series devices may provide alternatives depending on the required resolution and system architecture. Other display technologies, such as LCoS and LCD, are available from manufacturers including Sony, Epson, and Himax, but these are not pin-to-pin or functionally equivalent replacements. Designers should compare resolution, optical architecture, interface requirements, controller compatibility, illumination method, package, and refresh rate before selecting an alternative.
Q4: Is technical support available for the DLP471TPFQQ?
A: Yes. As a professional Texas Instruments supplier and distributor, Nantian Electronics provides technical support for the DLP471TPFQQ, including datasheets, product specifications, pin diagram references, inventory inquiries, alternative part recommendations, and application guidance. Customers can contact our sales and technical support team for product selection assistance, competitive quotations, availability information, and ordering support.
