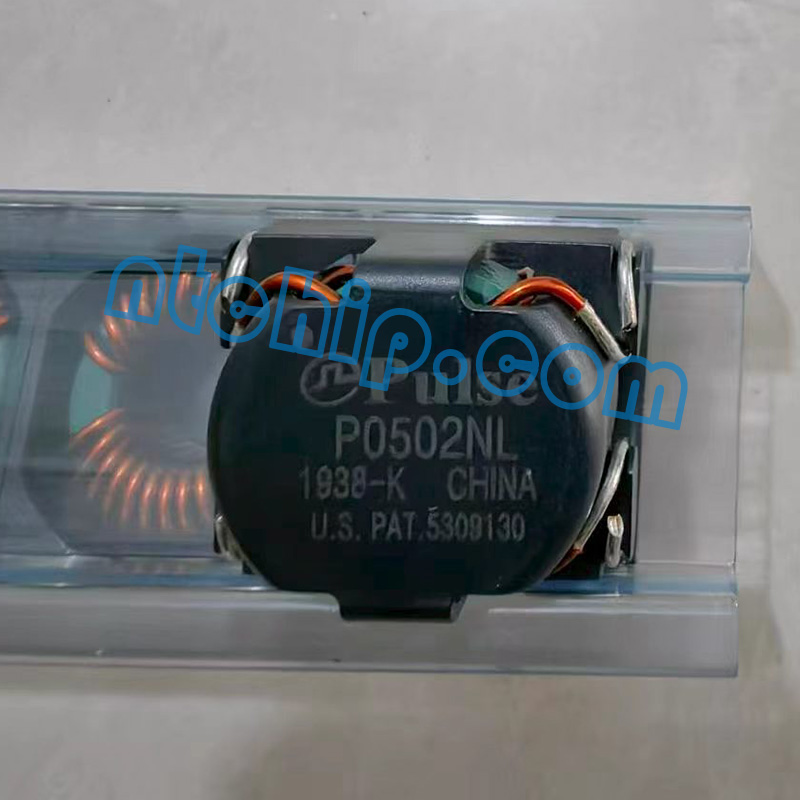

Q1: What are the main features of the Pulse Electronics Corporation P0502NLT?
A: The P0502NLT is a two-line common mode choke designed for noise suppression in power circuits, particularly DC/DC converter applications. It is a surface-mount component with a rated current of up to 14A and a low DC resistance of approximately 8mΩ, helping reduce conduction losses in high-current power paths. It provides a dielectric strength of 1000VRMS and is available as part of a product range offering different impedance, size, and current-rating options to meet various power design requirements.
Q2: What is the P0502NLT used for?
A: The P0502NLT is mainly used to suppress common-mode electromagnetic interference (EMI) and reduce unwanted high-frequency noise on power lines. Typical applications include DC/DC converters, switching power supplies, industrial equipment, telecommunications equipment, automotive electronics, and other power-management systems. Its high-current capability and low DC resistance make it particularly suitable for power circuits where both noise control and low power loss are important.
Q3: Does the P0502NLT have an alternative manufacturer and part number?
A: Yes. Comparable common mode chokes are available from manufacturers such as Würth Elektronik, TDK, Murata, Coilcraft, and Bourns. Possible alternatives include the Würth Elektronik WE-CMB series, TDK ACM series, Murata DLW series, Coilcraft EXC series, and Bourns SRF series. However, these parts are not necessarily direct drop-in replacements. Designers should compare rated current, impedance, DC resistance, inductance, dielectric strength, package dimensions, pin configuration, and frequency characteristics before selecting an alternative.
Q4: Is technical support available for the P0502NLT?
A: Yes. As a professional Pulse Electronics Corporation supplier and distributor, Nantian Electronics provides technical support for the P0502NLT, including datasheets, product specifications, pin diagram references, inventory inquiries, alternative part recommendations, and application guidance. Customers are welcome to contact our sales and technical support team for product selection assistance, competitive quotations, availability information, and ordering support.
