Overview

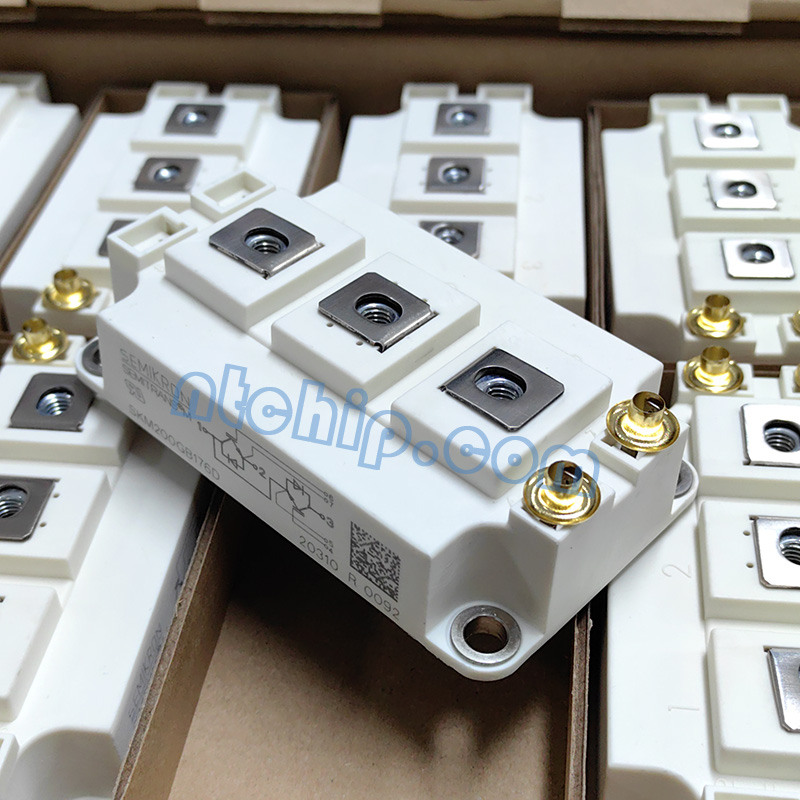

Meet the SEMIKRON SKM200GB176D, a cutting-edge IGBT (Insulated Gate Bipolar Transistor) module designed for high-performance power electronics applications. Elevate your power systems with the reliability and efficiency of this semiconductor marvel.
SKM200GB176D Physical Data (Volume and Weight)

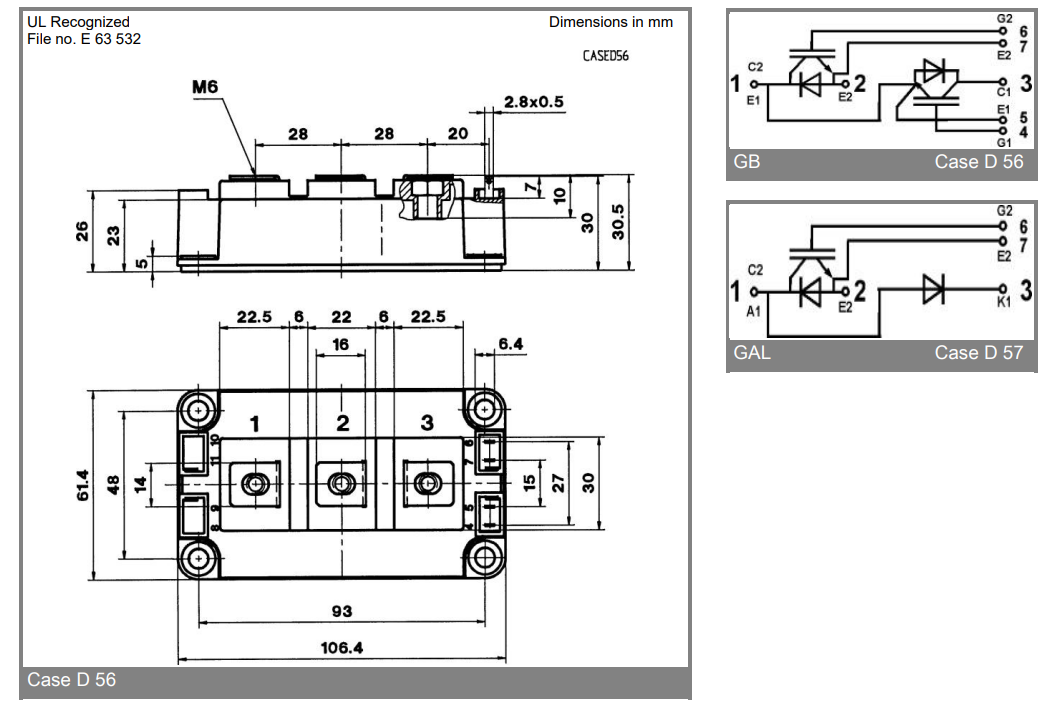

SKM200GB176D length, width, height and screw hole parameter diagram
According to the volume parameter diagram of SKM200GB176D(Weight is 325g), its length, width and height are: 106.4mm, 61.4mm and 30.5mm. We can also know that SKM200GB176D needs to use M6 screws with a maximum length of no more than 10mm.
Key Features:
The SEMIKRON SKM200GB176D stands out as a formidable IGBT (Insulated Gate Bipolar Transistor) module, delivering exceptional performance and reliability in power electronics applications. Boasting high power density, this module combines compact design with robust power output, making it an ideal choice for applications where space is at a premium without compromising on performance. Its low saturation voltage enhances overall efficiency, minimizing energy losses during operation and contributing to sustainable power solutions.
Equipped with effective thermal management mechanisms, the SKM200GB176D ensures reliable and consistent performance by efficiently dissipating heat. This feature is particularly crucial in demanding industrial environments where temperature control is paramount. The SKM200GB176D's advanced design and cutting-edge features make it a versatile solution for various applications, ranging from motor drives in industrial setups to power inverters for renewable energy systems, and even uninterruptible power supplies (UPS) that require a stable and dependable power source for critical electronic equipment. With these standout features, the SKM200GB176D stands as a reliable and efficient choice for powering the next generation of electronic systems.
Applications
Industrial Drives
Renewable Energy Systems
Electric Vehicles
Power Supplies
SKM200GB176D Related Models
While SKM200GB176D is a prominent IGBT module from SEMIKRON, it is part of a series of modules designed to meet diverse power electronics needs. Some related models within the SKM series include:
SKM100GB128D: A module offering a lower power rating compared to SKM200GB176D, suitable for applications with moderate power requirements.
SKM150GB176D: Positioned between SKM100GB128D and SKM200GB176D, this model provides a balanced power output for applications needing an intermediate power level.
SKM300GB176D: A higher-rated module in the series, catering to applications demanding greater power capacity than the SKM200GB176D.
These related models within the SKM series offer a range of power ratings, allowing engineers and designers to choose the most suitable module based on the specific requirements of their applications. Whether it's for compact designs with moderate power needs or high-performance systems demanding robust power output, SEMIKRON's SKM series provides a diverse set of solutions.
