Pulse Electronics Corporation FIS115NL

Manufacturer Part Number :	FIS115NL
Manufacturer :	Pulse Electronics Corporation
Description :	CURR SENSE XFMR 1:100 25A T/H
Datasheet :	FIS115NL.PDF
EDA / CAD Models :	FIS115NL by SnapEDA
Base Product Number :	FIS115
Stock Condition :	In Stock 6701, New Original

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Pricing

*All prices are in USD

Qty	Unit Price	Ext Price
1	$1.2880	$1.2880
50	$1.1592	$57.9600
100	$1.0433	$104.3300
500	$0.9390	$469.5000
1000	$0.8451	$845.1000

In Stock 6701 PCS

Subtotal : $0.000

Add to RFQ List Buy Now

*Products eligible for online ordering ship within 1-2 business days,please contact us for exact shipping times.

Pulse Electronics Corporation FIS115NL

In Stock: 6701 Qty:

Unit Price: $

Ext Price: $

Add to Cart Buy Now RFQ Now Add to RFQ list

The FIS115NL from Pulse Electronics Corporation is a current sense transformer designed for use in switch-mode power supplies. Its compact through-hole package makes it suitable for various applications, and its 100:1 turns ratio allows for precise current monitoring. Operating at frequencies up to 500kHz, it provides accurate feedback signals for efficient control of the power supply's output.

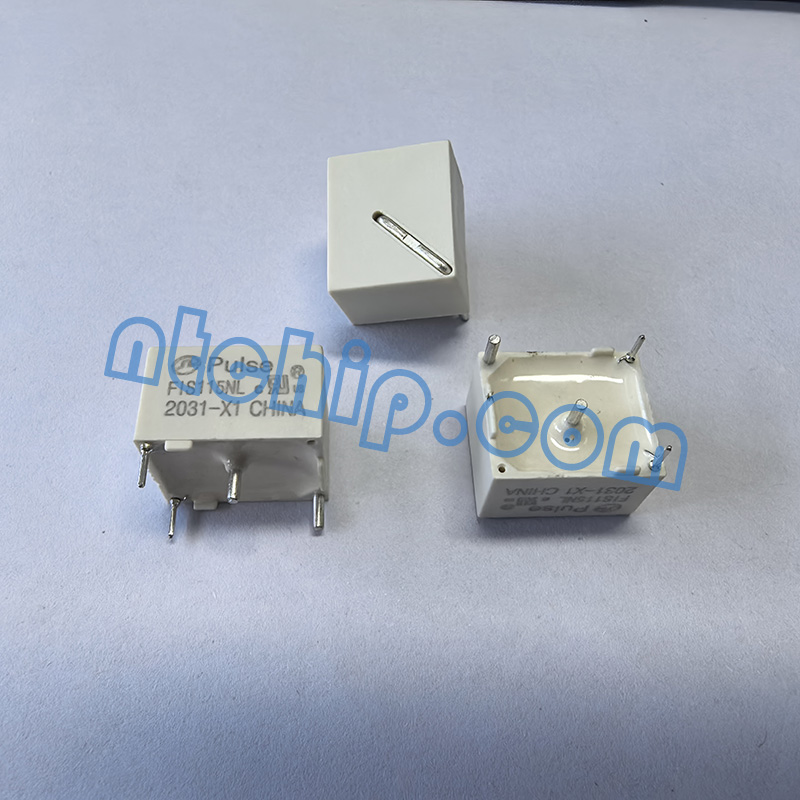

Pulse Electronics Corporation FIS115NL sense transformer chip

Key features include a maximum impedance of 2 ohms and an inductance of 18 mH. The reinforced insulation and 4000V AC isolation rating ensure safety and reliability, while the 25A maximum current handling capacity further enhances the component's robustness for demanding applications. This component is a vital element in the low-cost regulation of switch-mode power supplies.Nantian Electronics, a trusted Pulse Electronics Corporation distributor, maintains a substantial inventory of the FIS115NL. We offer immediate access to the part, along with comprehensive resources such as the FIS115NL datasheet (PDF) and pin diagrams for your convenience. Contact us today to receive a competitive quote and begin your order process.

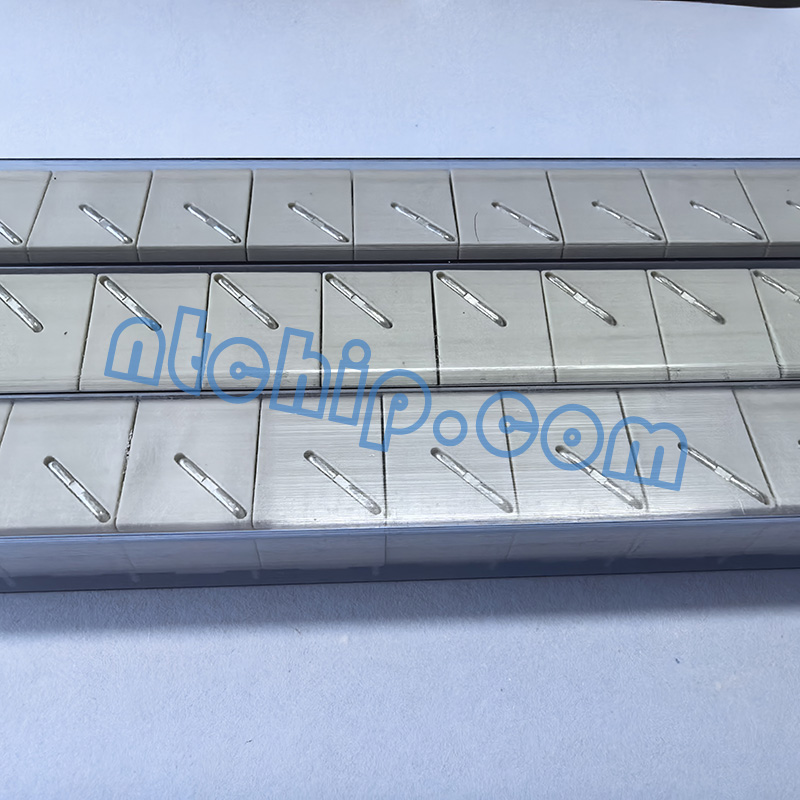

Pulse Electronics Corporation FIS115NL part in tube

Type	Description
Category	Transformers Current Sense Transformers
Manufacturer	Pulse Electronics Corporation
Series	FIS 1X5
Packaging	Tube
Part Status	Active
Frequency Range	500kHz Max
Type	Invasive
Inductance	18 mH
ET (Volt-Time)	350VµS
Turns Ratio - Primary:Secondary	1:100
Current Ratio	-
DC Resistance (DCR)	2Ohm Max
Ratings	-
Mounting Type	Through Hole
Size / Dimension	0.693" L x 0.591" W (17.60mm x 15.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Termination Style	PC Pin
Weight	0.017 lb (7.71 g)
