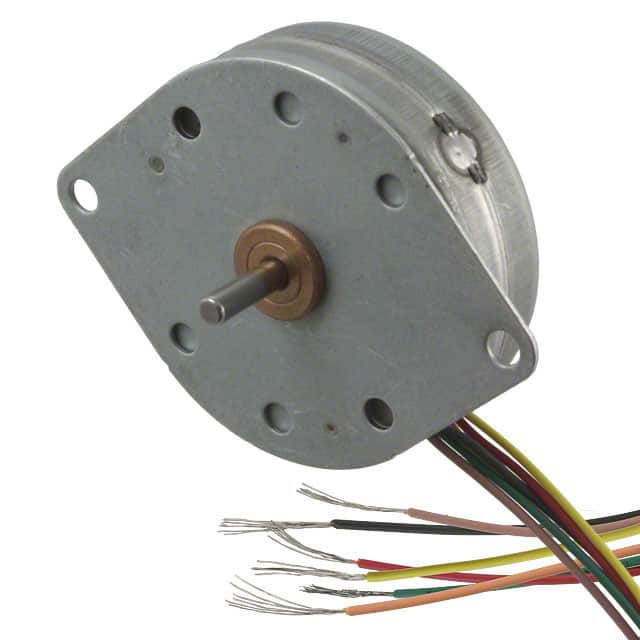

Portescap 42S048D2U

Manufacturer Part Number :	42S048D2U
Manufacturer :	Portescap
Description :	STEPPER MOTOR PM UNIPOLAR 12V
Datasheet :	42S048D2U.PDF
EDA / CAD Models :	42S048D2U by SnapEDA
Stock Condition :	In Stock 8660, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Portescap 42S048D2U

In Stock: 8660 Qty:

RFQ Now Add to RFQ list

We can supply Portescap part# 42S048D2U, use the request quote form to request 42S048D2U pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 42S048D2U. The price and lead time for 42S048D2U depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 42S048D2U. We look forward to doing business with you.

Series	42S
RoHS	RoHS
Type	Permanent Magnet
Accuracy	±15%
Features	Round Shaft
Coil Type	Unipolar
Step Angle	7.5°
Product Status	Active
Coil Resistance	75 Ohms
NEMA Frame Size	-
Voltage - Rated	12VDC
Diameter - Shaft	0.118" (3.00mm)
Size / Dimension	Round - 1.650" Dia (42.00mm)
Termination Style	Wire Leads
Steps per Revolution	48
Current Rating (Amps)	160 mA
Mounting Hole Spacing	1.950" (49.48mm)
Operating Temperature	-20°C ~ 70°C
Length - Shaft and Bearing	0.450" (11.43mm)
Torque - Holding (oz-in / mNm)	6.3 / 44.5
