The AR0237CSSC12SPRA0-DR by ON Semiconductor is a high-performance imaging solution, designed with meticulous attention to detail to enhance visual capture capabilities for a multitude of applications. Combining superior low-light performance with the latest 3.0 μm pixel technology, this device integrates the innovative ON Semiconductor DR-Pix™ technology, which enables dual conversion gain for outstanding image clarity and detail.

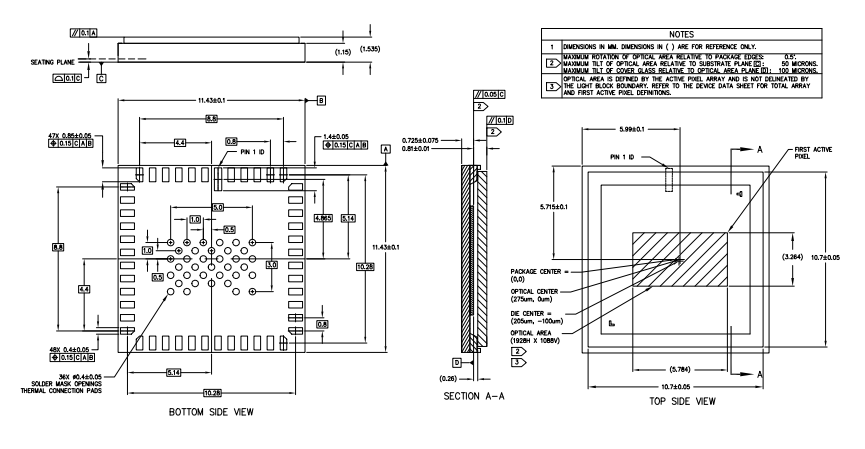

ON Semiconductor AR0237CSSC12SPRA0-DR Package Diagrams:
Notably, it provides Full HD support at a fluid 1080p 60 fps, guaranteeing excellent video performance. Able to perform linear or high dynamic range capture, and supporting line interleaved T1/T2 readout, the AR0237CSSC12SPRA0-DR is capable of managing HDR processing in an ISP chip. The device also offers support for an external mechanical shutter and an on-chip phase-locked loop (PLL) oscillator. Other key features include integrated position-based color and lens shading correction, slave mode for precise frame-rate control, stereo/3D camera support, and a statistics engine.
For data interfacing, this model affords three distinct options: four-lane serial high-speed pixel interface (HiSPi), differential signaling (SLVS and HiVCM), or parallel. Additionally, with auto black level calibration, high-speed configurable context switching, and an integrated temperature sensor, the AR0237CSSC12SPRA0-DR is configured to offer comprehensive, high-quality imaging solutions.

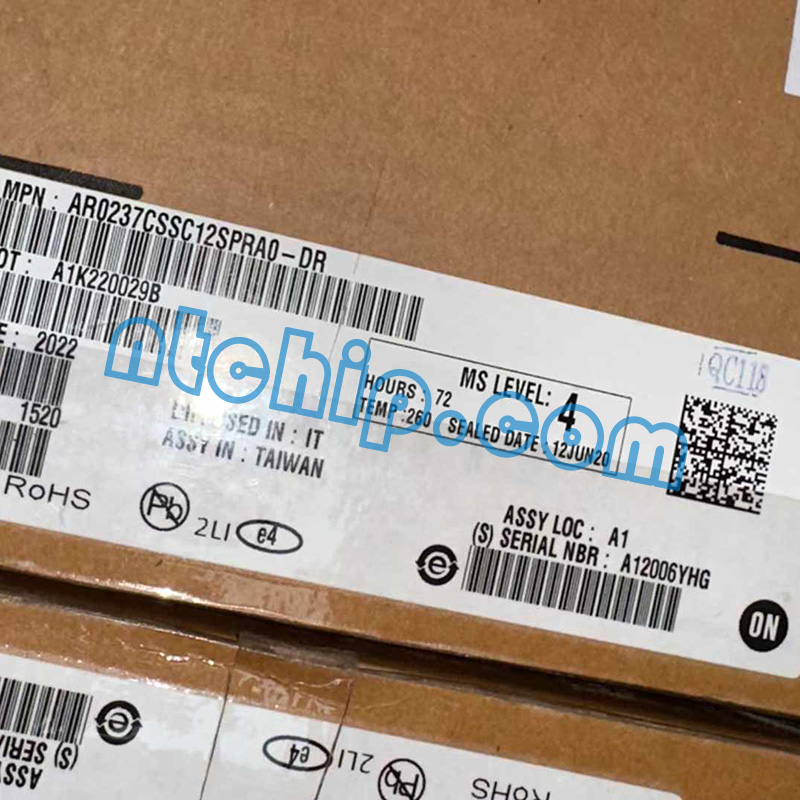

ON Semiconductor AR0237CSSC12SPRA0-DR Package Original Label
As a professional distributor of ON Semiconductor products, Nantian Electronics maintains a large stock of this product, complemented by detailed support resources such as datasheets, pin diagram instructions, and parameter guidance.
