The Omron G6L-1F-TR DC5 represents a remarkable achievement in relay technology, establishing new benchmarks for size and functionality in high-density applications. Recognized as one of the world's thinnest relays, this extremely thin SPST-NO (Single Pole Single Throw Normally Open) flat relay is tailored for projects requiring compact solutions without compromising performance. At measurements of just 7.0 mm in width, 10.6 mm in length, and a height of only 4.2 mm for surface mount applications (or 3.8 mm for through-hole variants), the G6L-1F-TR DC5 offers a significantly reduced mounting area by 20% and a volumetric decrease of 67% compared to Omron's G5V-1 relay, making it ideal for slim and efficient packaging.

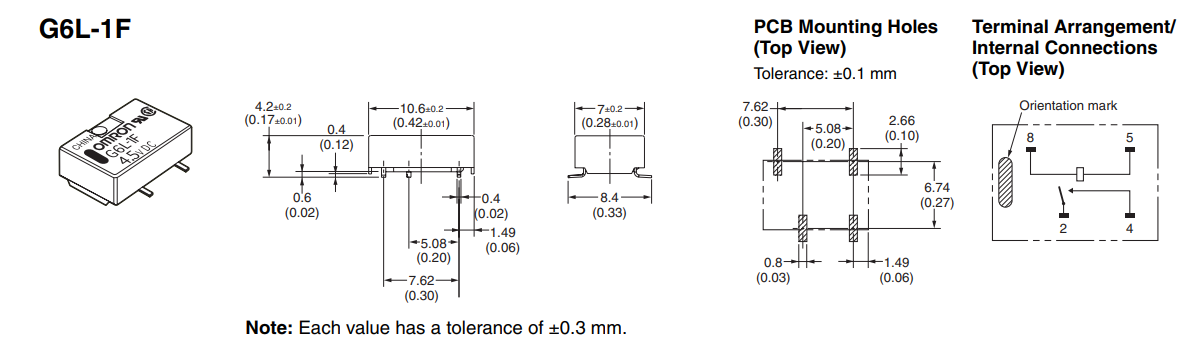

Omron G6L-1F-TR DC5 Package Dimensions:
Unit:mm(inch)
In addition to its compact design, this model fulfills rigorous safety standards, boasting a high dielectric strength of 1,000 VAC between coil and contacts and 750 VAC between contacts of the same polarity. It also meets FCC Part 68 requirements for impulse withstand voltage, handling 1.5kV for 10 x 160 µs waveforms. Compliant with UL60950 and CSA C22.2 No. 60950 safety standards, this relay is engineered without the use of lead, reflecting Omron’s commitment to environmental sustainability.

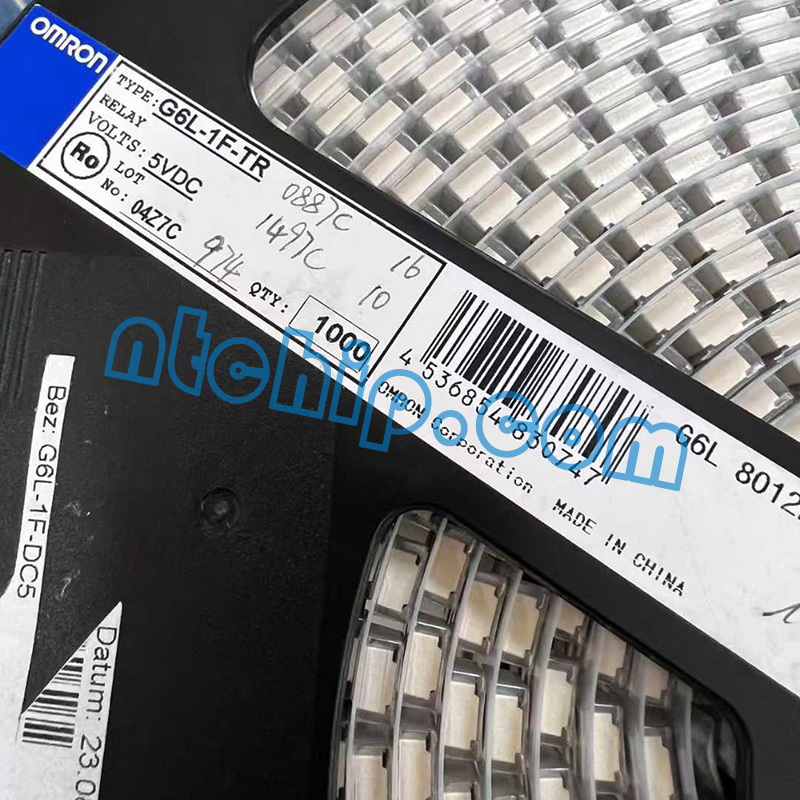

Omron G6L-1F-TR DC5 Original Reel Label
As an established distributor, Nantian Electronics maintains an extensive inventory of the G6L-1F-TR DC5 and supports customers with datasheets, detailed product parameters, and pinout information. For those interested in incorporating this state-of-the-art relay into their designs, Nantian Electronics provides competitive pricing and expert guidance.
